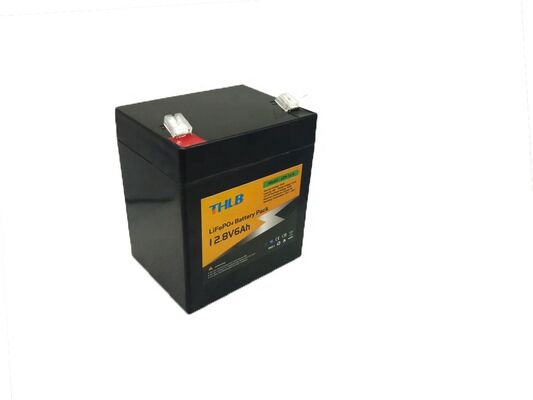

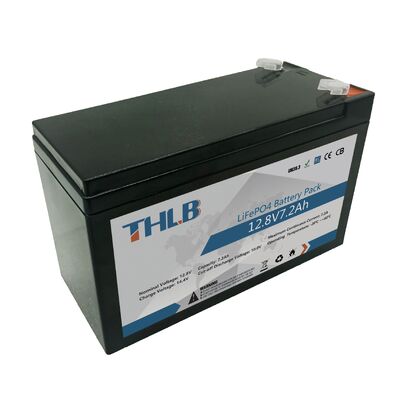

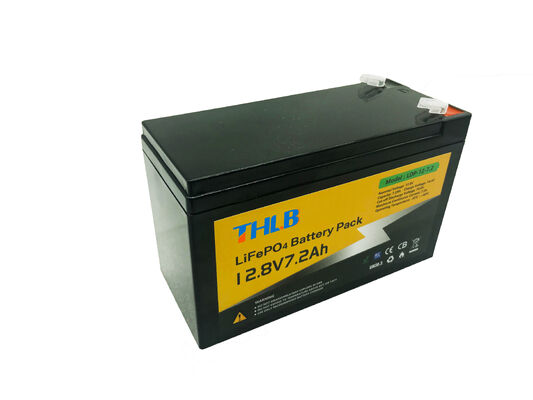

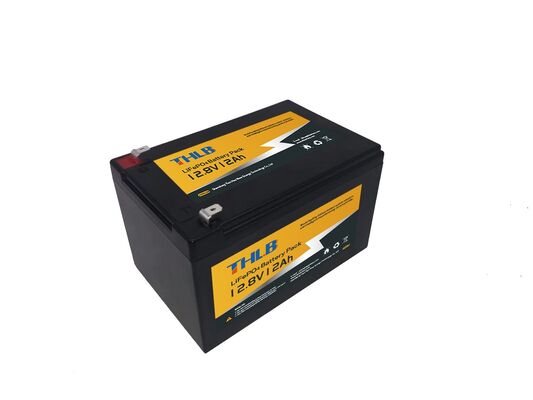

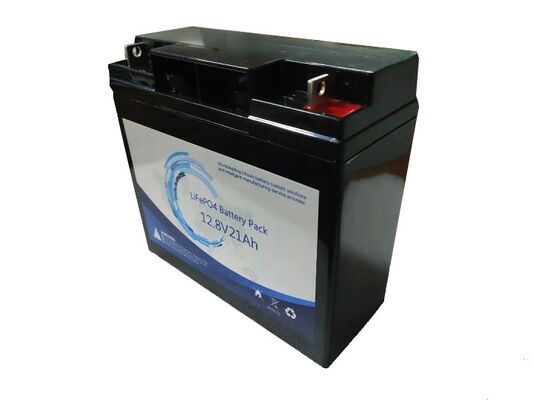

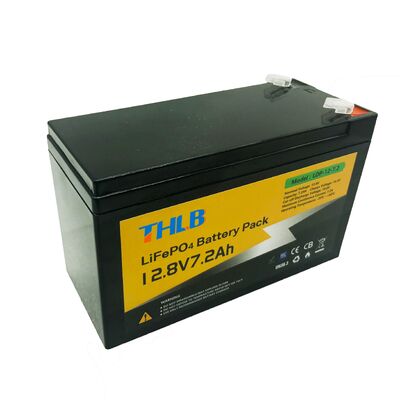

LiFePO4 Solar Street Light Lithium Battery 7.5Ah 8Ah 12Ah 20Ah Street Light Solar Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V7.5Ah LiFePO4 Battery |
| Minimum Order Quantity | 10 pieces |
| Price | $25/pieces 10-49 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 1000 Cycles |
|---|---|---|---|
| Application | Toys, Electric Wheelchairs, Electric Power Systems | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiFePO4 | Type | Li-ion |
| Voltage | 12.8V | Capacity | 7.5ah 8Ah 12Ah 20Ah |
| Category | Rechargeable Batteries Pack | Cycle Characteristic | 2000 Times |
| Working Temperature | -20°C~60°C | Battery Weight | 1.1±0.1kg |
| Reference Battery Size | 151.5*65*95 Mm | Color | Black |
| Highlight | LiFePO4 Solar Street Light Lithium Battery,20Ah Street Light Solar Battery,Solar Street Light Lithium Battery 7.5Ah |
||
Product Description
LiFePO4 Solar Street Light Lithium Battery
12.8V LiFePO4 Rechargeable Lithium Ion Battery with capacities of 7.5Ah, 8Ah, 12Ah, and 20Ah. Ideal for EV applications and solar street lighting solutions.
Product Images
Main Kit Components
| 1 x 12.8V 7.5Ah LiFePO4 Battery Module |
| 1 x PCM |
| 1 x Plastic Battery Case |
| 2 x T1 Terminals |
Product Specifications
| Normal Voltage | 12.8V |
| Normal Capacity | 7.5Ah |
| Battery Energy | 96Wh |
| Inner Resistance | < 90mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 18650 3.2V 1600mAh-4S5P |
| Reference Battery Size | (151.5±1)*(65±1)*(95±1) mm |
| Reference Battery Weight | 1.1±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | 1.5A |
| Normal Discharge Current | 4A |
| Max. Continuous Output Current | 7.5A |
| Max. Continuous Output Power | 96W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Safety Performance Classification
- Resistance to heavy loads - tested according to regulations, no ignition or explosion
- Resistance to thermal shock - tested according to regulations, no ignition or explosion
- Anti-overcharge - tested according to regulations, no ignition or explosion
- Resistance to overdischarge - tested according to regulations, no ignition or explosion
- Resistance to short circuit - tested according to regulations, no ignition or explosion
- High temperature storage - tested according to regulations, no leakage, smoke, fire or explosion
- Anti-heating - tested according to regulations, no battery penetration through screen
- Anti-puncture - tested according to regulations, no ignition or explosion
- Anti-extrusion - tested according to regulations, no ignition or explosion
- Resistance to low pressure - tested according to regulations, no leakage, smoke, fire or explosion
- Constant damp heat - tested according to regulations, no deformation, rust, smoke or explosion
- Anti-vibration - tested according to regulations, no damage, leakage, smoke or explosion
- Anti-collision - tested according to regulations, no damage, leakage, smoke or explosion
- Temperature cycling - tested according to regulations, no leakage, smoke, ignition or explosion
- Flame retardant properties - complies with GB/T2408-2008 FH-1 and FV-0 requirements
- Insulation resistance - metal case insulation resistance not less than 2 MΩ
Additional Product Images
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples need 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: MOQ = 100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days. Big quantity bulk order: Air shipping or Sea shipping.
Q5. How to proceed an order for Lithium ion cell?
A: Please confirm the cell models that you are interested in. We send cell specifications and best quotation to you for reference. You confirm the quotation and inform quantity or issue PO, we will send PI accordingly. After deposit or full payment confirmed, production started.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed.
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty.
