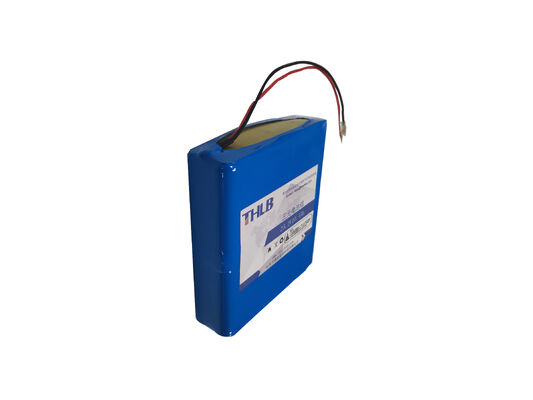

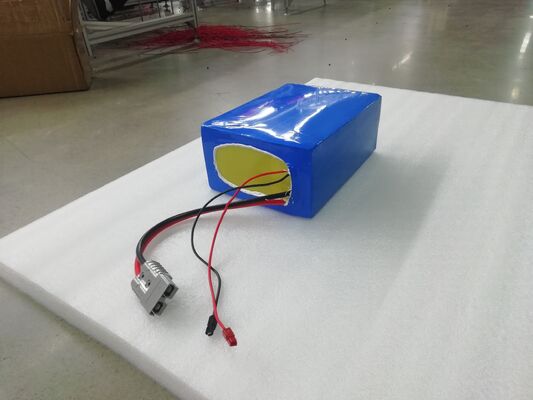

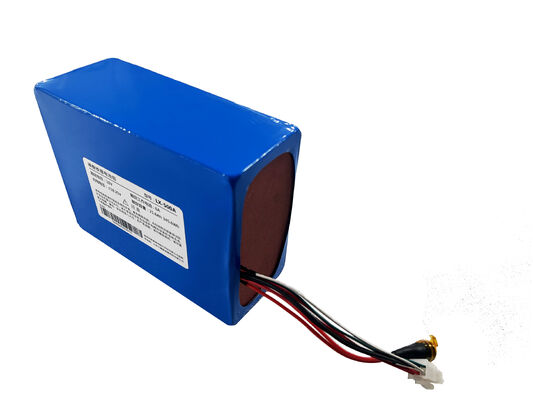

1500 Cycles 26650 Battery Pack 24V 12Ah Lifepo4 Battery For Electric Wheelchair

Place of Origin	China
Brand Name	THLB
Model Number	THLB2412
Minimum Order Quantity	5 pieces
Price	$65/pieces 5-199 pieces
Packaging Details	Standard Packaging
Delivery Time	7-15 Working Days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Battery Size	24V12Ah	Cycle Life	1500 Cycles
Cathode Materials	LiFePO4	Application	Power Tools, Consumer Electronics, Boats, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Solar Energy Storage Systems
Weight	3Kg	Operating Temperature(℃)	-20-60℃
Product Name	24V12Ah LiFePO4 Lithium Battery	Nominal Voltage	24V
Nominal Capacity	12Ah	Charge Voltage	28.8V
Casing	PVC	Cycle	Over 2000 Times
Working Temperature	-20°C~60°C	Battery Weight	3kg
BMS	YES	PVC Color	Blue
Highlight	1500 Cycles 26650 Battery Pack , 26650 24V 12Ah Lifepo4 Battery , 1500 Cycles 24V 12Ah Battery

Leave a Message

Product Description

1500 Cycles 26650 Battery Pack 24V 12Ah Lifepo4 Battery For Electric Wheelchair

High-performance 24V 12Ah LiFePO4 rechargeable lithium-ion battery pack featuring cylindrical 26650 battery cells, specifically designed for electric wheelchairs with an exceptional 1500-cycle lifespan.

Product Specifications

Parameter	Value
Nominal Voltage	25.6V
Typical Capacity	12Ah
Discharge Normal Current	<20A
Discharge Cut-off Voltage	20V
Charging Voltage	28.8V
Charging Current	7.2A
Charging Method	CC/CV
Cut-off Current	0.01C
Discharging Inner Resistance	<=50mΩ
Charge Temperature Range	0℃～+45℃
Discharge Temperature Range	-20℃～+60℃
Operating Humidity	RH<85%
Storage Temperature	0℃～+40℃ (capacity 80%)
Storage Humidity	RH<50%
Protection Functions	Overcharge protection, over discharge protection, temperature protection, balanced function
Battery Case Material	PVC
Dimensions	(172±1)mm × (72±1)mm × (152±1)mm
Cycle Life	1500 cycles (capacity retention rate >80%)

Manufacturer Profile

Shandong TianHan New Energy Technology Co., Ltd specializes in R&D, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage system solutions.
