Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Electric Bicycles,UPS,power Tools,aerospace

Weight:

0.2Kg

Operating Temperature(℃):

-20-60

Capacity:

12.8V 12Ah

Charge Voltage:

14.4±0.1V

Charge Current:

10A

Cycle Life:

≥6000times 0.5C(80%DOD)

Internal Resistance:

≤40mΩ

Battery Cell:

LiFePO4

Warranty:

3 Years

Cell Configuration::

LiFePO4 18650 3.2V 1800mAh-4S6P

Highlight:

6000 Cycles LiFePO4 Battery Pack

12 Amp 4S6P Battery

1800mAh 4S6P Battery

Product Description

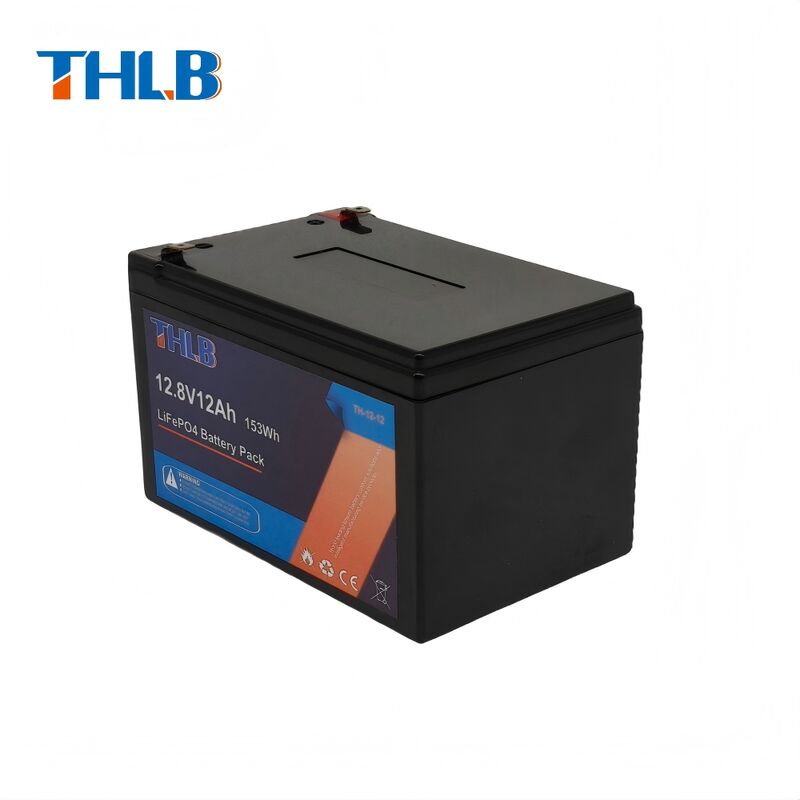

6000 Cycles LiFePO4 Battery Pack 12 Volt 12 Amp 3.2 Volt 1800mAh 4S6P Battery

Internal Resistance below 40 milliohms 12 volt 12 amp hour LiFePO4 18650 3.2 volt 1800mAh 4S6P Lithium Ion Battery Pack

Factory Sale LiFePO4 battery pack lithium ion 12v 12ah

Advantages Over Lead Acid Batteries

Longer cycle lifespan
Smaller and lighter design
Higher energy density for greater current output
Superior temperature adaptability
More environmentally friendly
Extended warranty coverage

Note: The following parameters are customized for presentation purposes. We can design, develop, and produce any customized battery according to your specific requirements.

Product Images

Technical Specifications

MAIN KIT INCLUDES	1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals
Normal Voltage	12.8V
Normal Capacity	12Ah
Battery Energy	153.6Wh
Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration	LiFePO4 18650 3.2V 1800mAh-4S6P
Reference Battery Size	1519999mm
Reference Battery Weight	0.2 kg
Battery Encapsulation	Plastic Case
Charge Voltage	14.4V
Charge Mode	CC/CV
Normal Charge Current	<=10A
Normal Discharge Current	10A
Max. Continuous Output Current	20A
Passive Protection Function	Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc
Operation Temperature Range	Charge: 0°C---45°C Discharge: -20°C---60°C
Battery Storage Temperature	-20°C---25°C
Individual Cell Approval	CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

Additional Products

Packing & Delivery

Company Profile

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.

Q4: What is your company's advantage?

A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, it is available.

Q6: What information do you need to make a customized battery pack?

A6: We need the details below: Size of the battery pack in mm, Capacity of the Battery pack, Voltage of the battery pack, Max discharge current, Cable and connector types needed, Casing and Terminals if required, Any protection circuits you may need.

Q7: Are your battery real capacity?

A7: All of our battery cells are Grade A, 100% new with real capacity.

Q8: What kind of certificates do you have?

A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.

Q9: What is your lead time for the mass production?

A9: Generally, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
