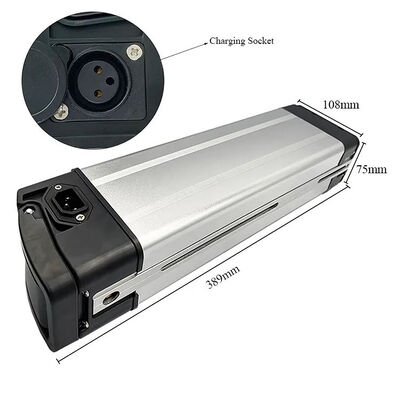

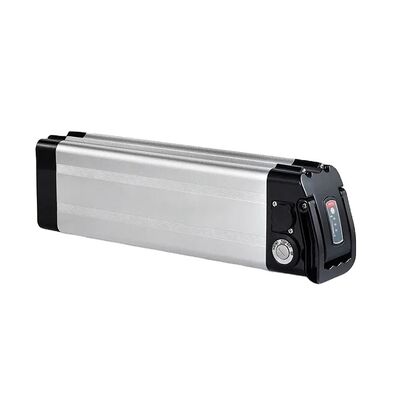

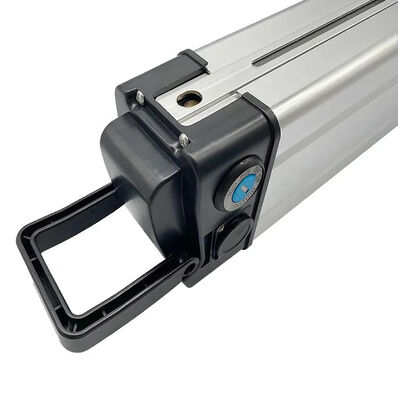

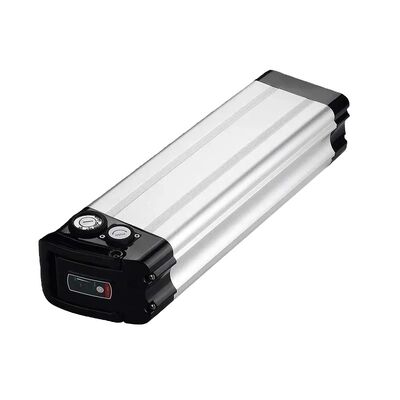

THLB Electric Bike Battery Pack 24V 36V 48V Lithium Ion Battery Lifepo4 10Ah 14Ah
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 3614 |
| Minimum Order Quantity | 5 pieces |
| Price | $130/pieces 5-49 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 800 Cycles |
|---|---|---|---|
| Application | Boats, Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters, E-Bike, Electric Bicycle, Electric Bike | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiMn2O4 | Voltage | 24V/36V/48V |
| Cycle Life | 800-1000 Times | Battery Type | Lithium Battery |
| Warranty | 3 Year | Nominal Capacity (Ah) | 7.8ah/10.4ah/14ah |
| Cell Configuration | INR18650-3500mah-3.6v-10S4P | Weight | Approx 3.5kg |
| Shell Material | Plastic | Place Of Origin | Shandong |
| Highlight | THLB Electric Bike Battery Pack,THLB 48V Lithium Ion Battery,48V Lithium Ion Battery Lifepo4 |
||
Product Description
Customizable Electric Bike Battery Packs
High-performance 24V, 36V, and 48V lithium-ion and LiFePO4 battery packs with capacities of 10Ah and 14Ah, designed for electric bicycles with approximately 3.5kg weight and cycle life of 800 to 1000 cycles.
Custom Manufacturing Available: We specialize in producing customized battery solutions according to your specific requirements. Share your needs with us, and we'll handle the rest with professional expertise.
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 36V |
| Typical Capacity | 14Ah |
| Discharge | Normal Current: 14A Max Continuous Current: 20A Cut-off Voltage: about 27.5V |
| Charging | Voltage: 42V Current: ≤2A Charging Cut-off current: approx 0.2A |
| Inner Resistance | Discharging Inner Resistance: ≤90mΩ |
| Operation Temperature/Humidity Range | Charge: 0℃ to 45℃ Discharge: -20℃ to 60℃ When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation Humidity Range: RH≤85% |
| Storage Temperature/Humidity Range | Temperature: 0℃ to 40℃ (capacity 80%) Recommended long-term storage: 15℃ to 25℃ Humidity: RH≤50% |
| Protection Function | Over charge protection, Over discharge protection, temperature protection |
| Shell Material | Aluminum 6061/PC+ABS |
| Weight | 3.5±0.1kg |
| Size | 435*151*66mm |
| Cycle Life | ≥500 cycles / 80% SOC |
Packaging & Delivery
Company Profile
Professional manufacturer of rechargeable lithium-ion and LiFePO4 batteries located in Shandong, certified with ISO9001:2008 quality system.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong, certified with ISO9001:2008 quality system.
Q2: Can I have samples to test? What is the lead time for sample orders?
Yes, we provide samples with a lead time of 7-10 days. Sample cost and shipping are covered by the buyer.
Q3: Do you provide after-sales service?
Yes, we offer a 3-year warranty. If any quality issues occur during this period, we provide replacements.
Q4: What is your company's advantage?
We supply high-quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
Yes, OEM and ODM services are available.
Q6: What information do you need for custom battery packs?
We require: battery pack dimensions, capacity, voltage, max discharge current, cable/connector types, casing/terminals, and protection circuit requirements.
Q7: Are your batteries real capacity?
All our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
We provide CE, ROHS, FCC, IEC62133, MSDS, and UN38.3 certifications.
Q9: What is your lead time for mass production?
Typically 25-30 days after receiving down payment and sample confirmation.
