Toys, Power Tools, Consumer Electronics, Boats, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Solar Energy Storage Systems

Weight:

43g

Operating Temperature(℃):

-20-60

Type:

Li-ion

Voltage:

3.6V

Capacity:

2600 MAh

Size:

18650

Category:

Rechargeable Batteries

Cycle Characteristic:

1500 Times

Working Temperature:

-20°C~60°C

Battery Weight:

48g (Approx.)

Color:

Green

Internal Resistance:

<20

Highlight:

3.6V Cylindrical Lithium Ion Battery

Cylindrical Lithium Ion Battery LiNiMnCoO2

800 Cycles THLB Battery

Product Description

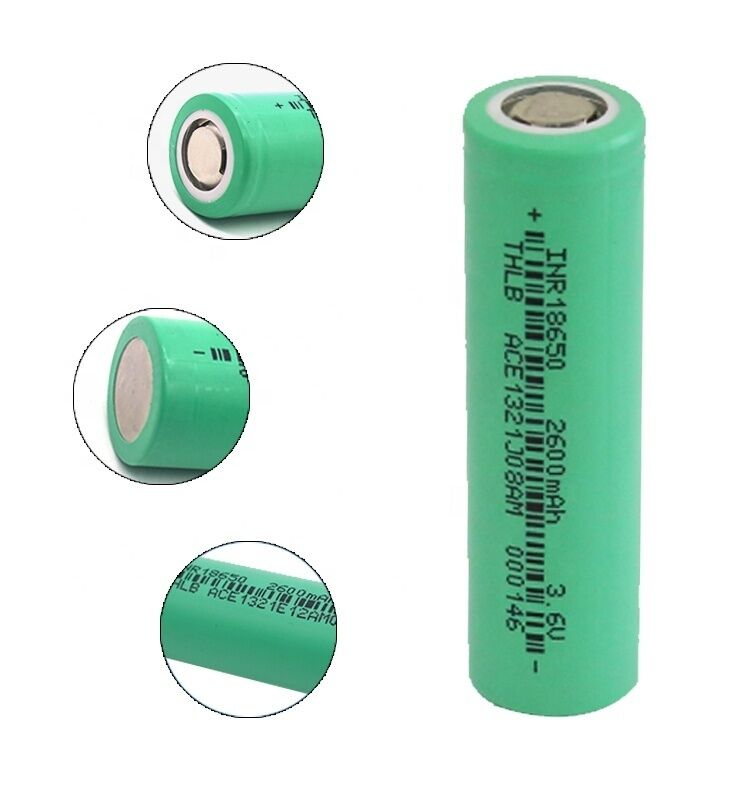

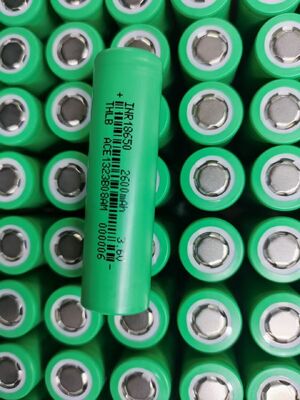

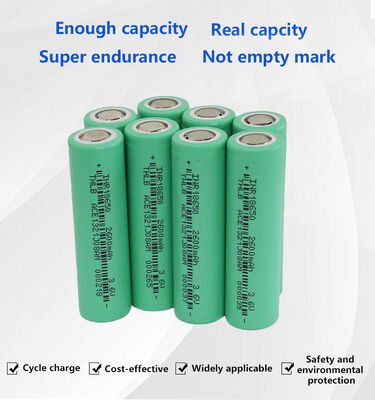

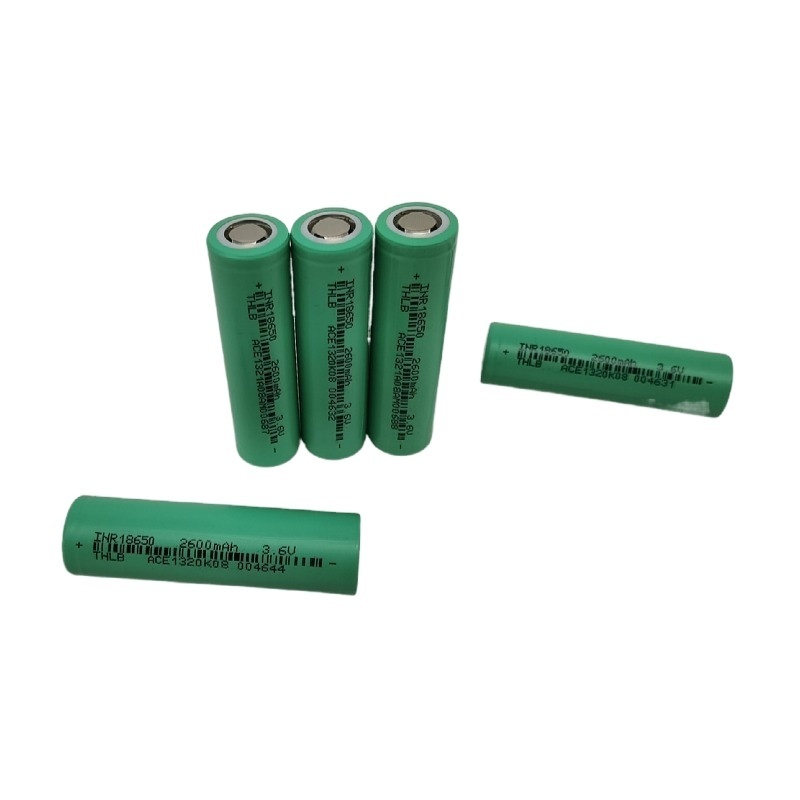

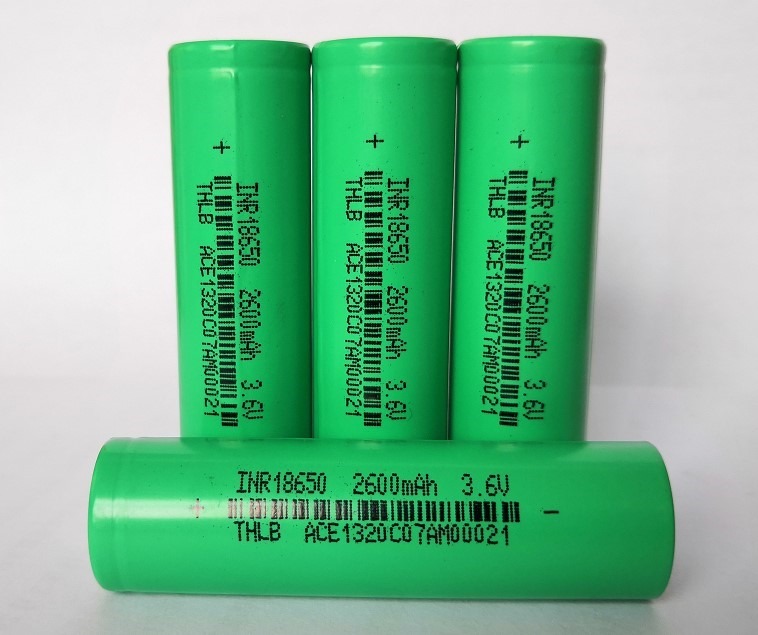

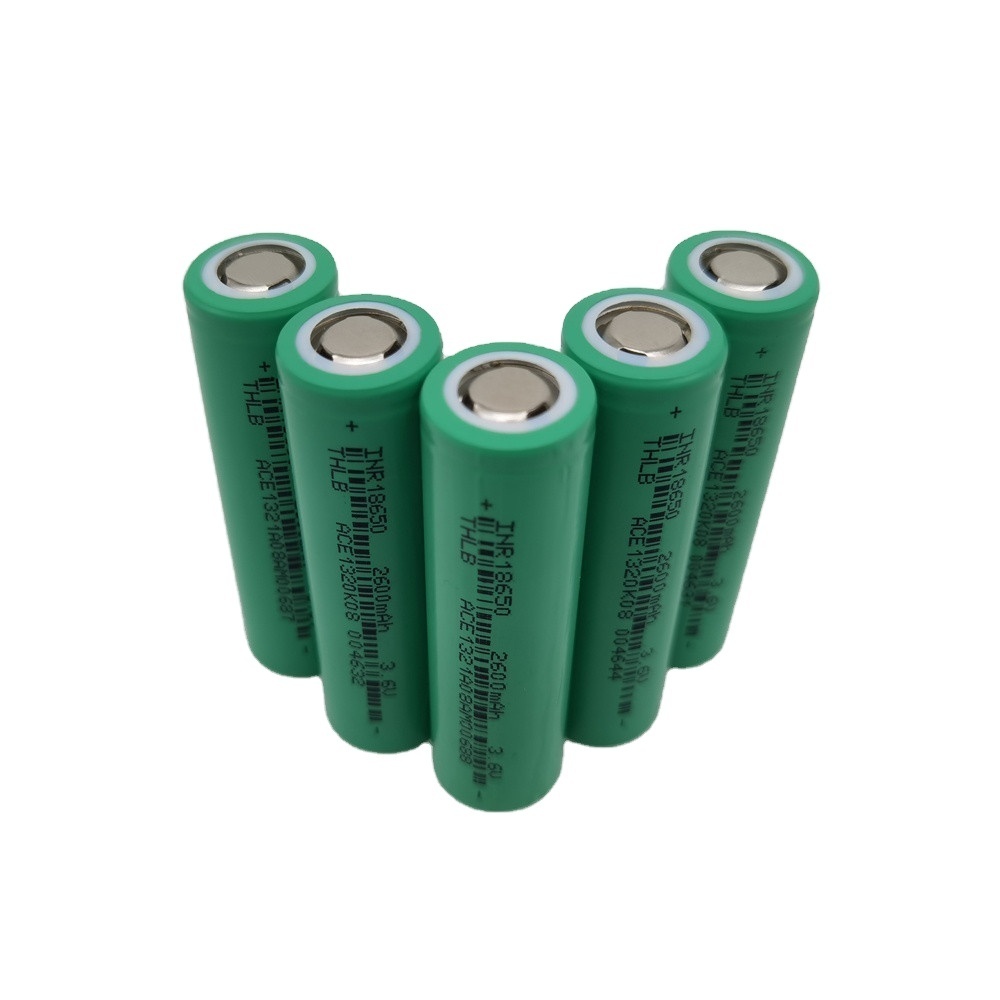

2600mAh 3.6V Cylindrical Lithium Ion Battery

43g 2600mAh 3.6V Rechargeable Cylindrical Lithium Ion Battery Cells 18650 - Ideal for Power Devices Operating -20°C to 60°C

Product Specifications

No.	Item	Standard	Note
1	Standard Capacity	2600mAh	0.5C (current value of 4500mA at 1C)
2	Capacity Range	2550~2650mAh	0.5C
3	Standard Voltage	3.6 V
4	Alternating Internal Resistance	≤30mΩ
5	Charge Conditions	Cut-off Voltage: 4.2±0.05V Cut-off Current: 0.01C	Constant-current charge to 4.2V at 0.5C, constant voltage charge to stop until 0.01C mA
6	Max. Charging Current	4.5A
7	Discharge Cut-off Voltage	2.75V
8	Standard Discharge Current	2.25A
9	Fast Discharge Current	4.5A
10	Max. Continuous Discharge Current	13.5A
11	Pulse Discharge Current	15A, 5s
12	Cycle Characteristic	1000 times (100% DOD) 2000 times (80% DOD) 3000 times (50% DOD)	The residual capacity is no less than 70% of rated capacity at 1C rate
13	Working Temperature	Charge: 0°C~55°C Discharge: -20°C~60°C
14	Storage Temperature	-20°C ~ 45°C	Short-term storage (< 3 months)
15	Battery Weight	48g (Approx.)

Safety Performance Classification

18650 2600mAh 3.6V Lithium Battery Cells - Rechargeable Batteries

Resistance to heavy loads: The battery pack shall be tested according to the regulations and shall not ignite or explode.
Resistance to thermal shock: The battery pack shall be tested according to the regulations and shall not ignite or explode.
Anti-overcharge: The battery module shall be tested according to the regulations and shall not ignite or explode.
Resistance to overdischarge: The battery module shall be tested according to the regulations and shall not ignite or explode.
Resistance to short circuit: The battery module shall be tested according to the regulations and shall not ignite or explode.
High temperature storage: The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.
Anti-heating: The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.
Anti-puncture: The battery pack shall be tested according to the regulations and shall not ignite or explode.
Anti-extrusion: The battery module shall be tested according to the regulations and shall not ignite or explode.
Resistance to low pressure: The battery pack shall be tested in accordance with regulations and shall not leak, smoke, catch fire or explode.
Constant damp heat: After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke or explosion, and its capacity shall not be less than 90% of the rated value.
Anti-vibration: The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.
Anti-collision: The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.
Temperature cycling: The battery pack shall be tested in accordance with the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.
Flame retardant properties: For battery packs with plastic casing and protective cover, the test shall be carried out in accordance with the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level) and 9.3.2 of FV-0 (vertical). Level) requirements.
Insulation resistance: For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

Our Company

Packing & Delivery

Frequently Asked Questions

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
