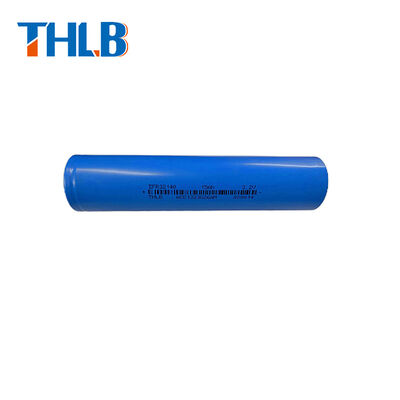

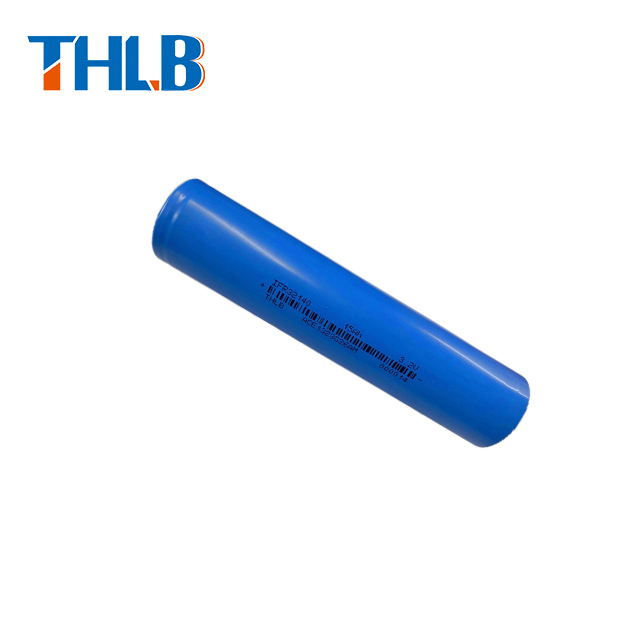

2000 Cycles LFP Battery Cell 32140 LiFePO4 Lithium Ion Phosphate Battery

Place of Origin	China
Brand Name	THLB
Model Number	32140-15Ah-3.2V
Minimum Order Quantity	100 pieces
Price	$4.80/pieces 100-499 pieces
Packaging Details	Standard Packaging
Delivery Time	7-15 Working Days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Max Load Quantity(cells)	4	Cycle Life	2000 Cycles
Application	Toys, Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts, Toys, Power Tools, Home Appliances, Consumer Electronics,	Weight	140g
Operating Temperature(℃)	-20-60℃	Cathode Materials	LiFePO4
Battery Type	LFP	Voltage	3.2 V
Capacity	15Ah	Category	Rechargeable Batteries
Cycle Characteristic	2000 Times	Working Temperature	-20°C~60°C
Battery Weight	140g (Approx.)	Color	Blue
Internal Resistance	3mΩ
Highlight	2000 Cycles LFP Battery Cell , LFP Battery Cell 32140 LiFePO4 , 32140 Lithium Ion Phosphate Battery

Leave a Message

Product Description

2000 Cycles LFP Battery Cell 32140 LiFePO4 Lithium Iron Phosphate Battery

Key Features

Exceptional 2000 cycle life for long-term reliability
3.2V nominal voltage with 15Ah capacity
Low internal resistance of 3mΩ for efficient performance
Maximum discharge current of 2C (30,000mA)
Enhanced safety and stability of LiFePO4 chemistry

The 32140 cylindrical lithium iron phosphate battery cell offers high capacity with superior safety and stability characteristics, making it ideal for energy storage systems and demanding applications.

Technical Specifications

Parameter	Specification	Note
Nominal Capacity	15,000mAh	0.5C
Minimum Capacity	14,500mAh	0.5C
Nominal Voltage	3.2V	-
Charging Voltage	3.65V ± 0.05V	-
Weight	Approx. 300g	-
Internal Resistance	3mΩ	-
Maximum Discharge Current	2C (30,000mA)	-

Charging Specifications

Standard charging is performed at ambient temperature of 25℃±2℃ and humidity of 65%±20% RH. Charging begins with constant current of 0.5C until reaching 3.65V, followed by constant voltage charging at 3.65V until current drops below 0.05C.
