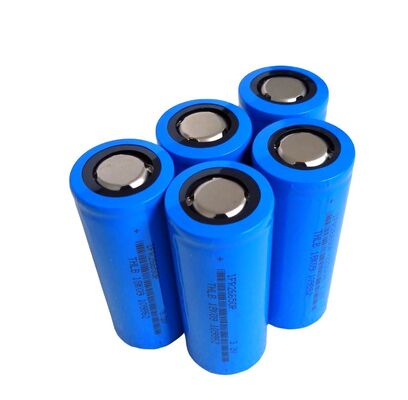

26500 3600mAh THLB Battery 3.2V Normal Storage 0.5C Flat Top Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 26650-3600mAh-3.2V |
| Minimum Order Quantity | 100 pieces |
| Price | $2.03/pieces 100-9999 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems | Weight | 94g |
|---|---|---|---|
| Type | 26650 LiFePO4 Lithium Battery Cell | Voltage | 3.2V |
| Capacity | 3600 MAh | Max. Continuous Discharge Current | 3C |
| Charge Voltage | 3.65V | Charge Current | 0.5C |
| Charge Mode | CC, CV | Charge Voltage | 0~45degree |
| Discharge Voltage | -20~60 Degree | Size | 26.3x65.2mm |
| Anode Material | LFP | Battery Size | 26650-3600mAh-3.2V |
| The Charging Ratio | 0.5C, 1C | The Discharge Rate | 1C, 2C, 3C |
| Storage Type | Normal | Electric Energy | 11.52 Wh |
| Highlight | 26500 3600mAh THLB Battery,THLB Battery 3.2V,0.5C Flat Top Battery |
||
Product Description

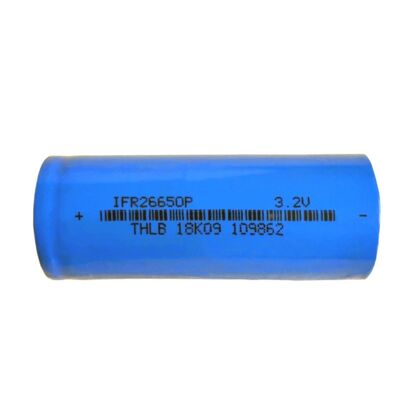

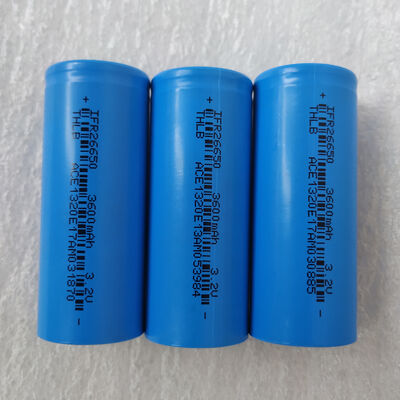

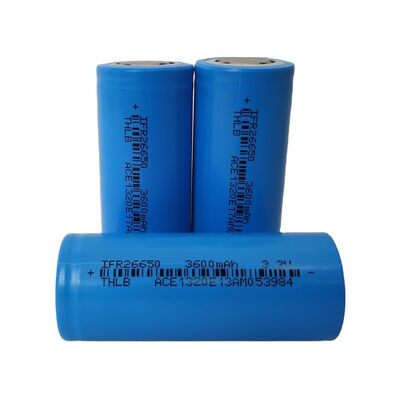

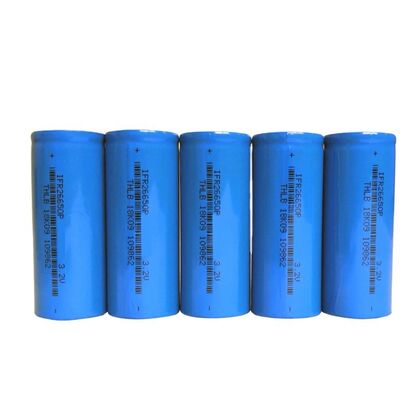

26500 3600mAh THLB Battery 3.2V Normal Storage 0.5C Flat Top Battery

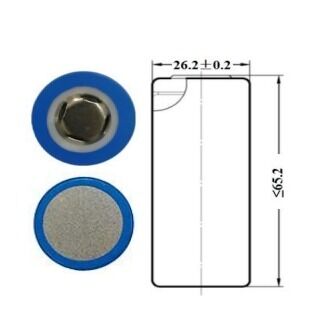

26.3x65.2mm Lithium Ion Rechargeable Battery THLB 3.2V 26500 3600mAh Normal Storage Type Flat Top
Product Specifications
| No. | Item | Standard | Note |
|---|---|---|---|
| 1 | Standard Capacity | 3600mAh | 0.5C,( current value of 4500mA at 1C) |
| 2 | Min Capacity Range | 3500mAh | 0.5C |
| 3 | Standard Voltage | 3.2 V | |
| 4 | Alternating Internal Resistance | ≤18mΩ | |
| 5 | Charge Conditions | Cut-off Voltage: 3.65±0.05V Cut-off Current: 0.01C |
constant-current charge to 3.6V at 0.5C,constant voltage charge to stop until 0.01C mA |
| 6 | Max. Charging Current | 3.6A | |
| 7 | Discharge Cut-off Voltage | 2.0V | |
| 8 | Standard Discharge Current | 3.6A | |
| 9 | Fast Discharge Current | 1.8A | |
| 10 | Max. Continuous Discharge Current | 10.8A | |
| 11 | Pulse Discharge Current | 15A,5s | |
| 12 | Cycle Characteristic | 1500 times(100%DOD) 2500 times(80%DOD) 4000 times(50%DOD) |
the residual capacity is no less than 80% of rated capacity at 1C rate |
| 13 | Working Temperature | Charge: 0°C~45°C Discharge: -20°C~60°C |
|
| 14 | Storage Temperature | -20°C ~ 45°C | Short-term storage (< 3 months) |
| 15 | Battery Weight | 91g (Approx.) |
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
