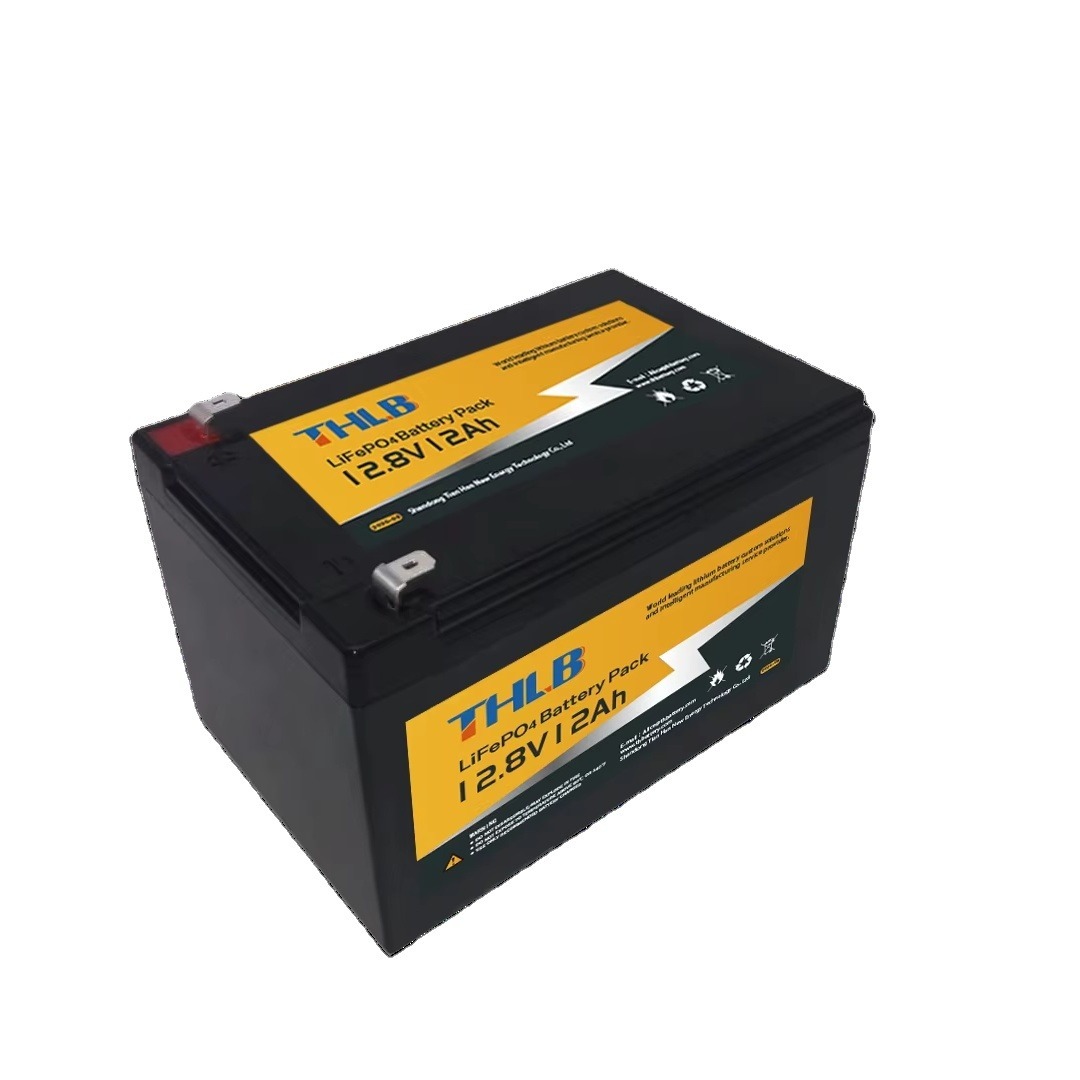

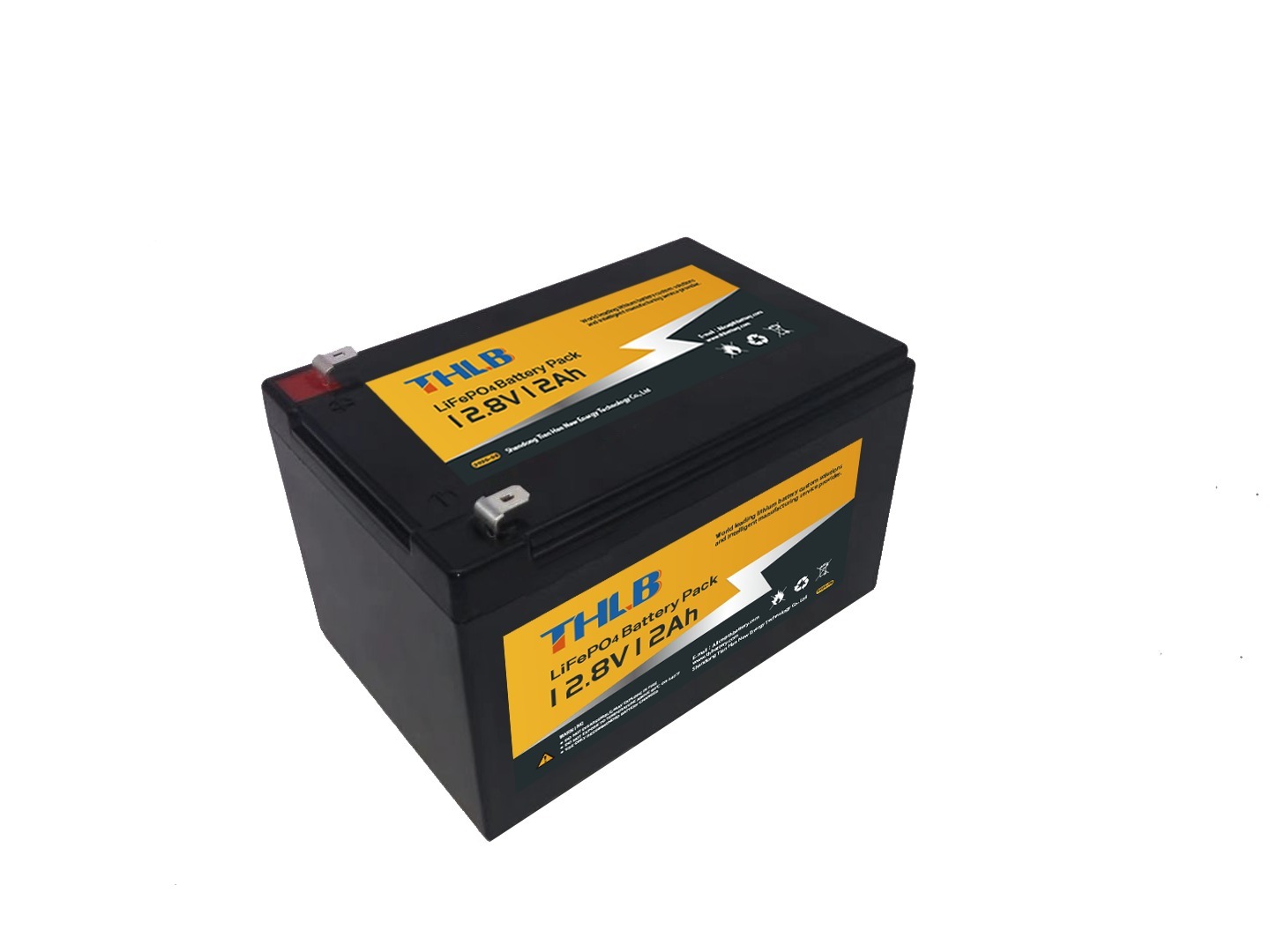

144V Lead Acid Replacement Battery 12V 12Ah LiFePO4 Battery Pack
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12v 12ah |
| Minimum Order Quantity | 10 units |
| Price | $50/units 10-999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Max Load Quantity(cells) | 4 |
|---|---|---|---|
| Cycle Life | 800 Cycles | Application | Power Tools, Solar Energy Storage Systems, Electric Bicycles,UPS,power Tools,aerospace |
| Operating Temperature(℃) | -20-60 | Cathode Materials | LiFePO4 |
| Capacity | 12.8V 12Ah | Charge Voltage | 14.4±0.1V |
| Charge Current | 10A | Cycle Life | ≥6000times 0.5C(80%DOD) |
| Internal Resistance | ≤40mΩ | Battery Cell | LiFePO4 |
| Warranty | 3 Years | Cell Configuration | LiFePO4 18650 3.2V 1800mAh-4S6P |
| Highlight | 144V Lead Acid Replacement Battery,144V LiFePO4 Battery Pack,12V 12Ah LiFePO4 Battery Pack |
||
Product Description
144V Lead Acid Replacement Battery 12V 12Ah LiFePO4 Battery Pack
Charge Voltage 144V LiFePO4 Battery Pack 12V 12Ah Rechargeable Lithium Ion Battery Suitable Lead Acid Solar Street Lamp
Factory Sale LiFePO4 battery pack lithium ion 12v 12ah
Advantages Over Lead Acid Batteries
- Longer cycle lifespan
- Smaller and lighter design
- Higher energy density for greater current output
- Enhanced temperature adaptability
- More environmentally friendly
- Extended warranty coverage
Note: The following battery parameters are customized for our customers and provided for reference only. We specialize in designing, developing, and producing customized battery solutions according to your specific requirements.
Product Overview
Technical Specifications
| MAIN KIT INCLUDES | 1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 12Ah |
| Battery Energy | 153.6Wh |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 18650 3.2V 1800mAh-4S6P |
| Reference Battery Size | 151*99*99mm |
| Reference Battery Weight | 0.2 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=10A |
| Normal Discharge Current | 10A |
| Max. Continuous Output Current | 20A |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Product Range
More Energy Power Battery Models
Packing & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: Size of the battery pack in mm, Capacity of the Battery pack, Voltage of the battery pack, Max discharge current, Cable and connector types, Casing and Terminals if required, Any protection circuits you may need.
Q7: Are your battery real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
