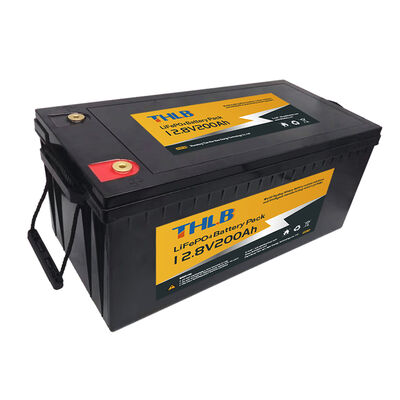

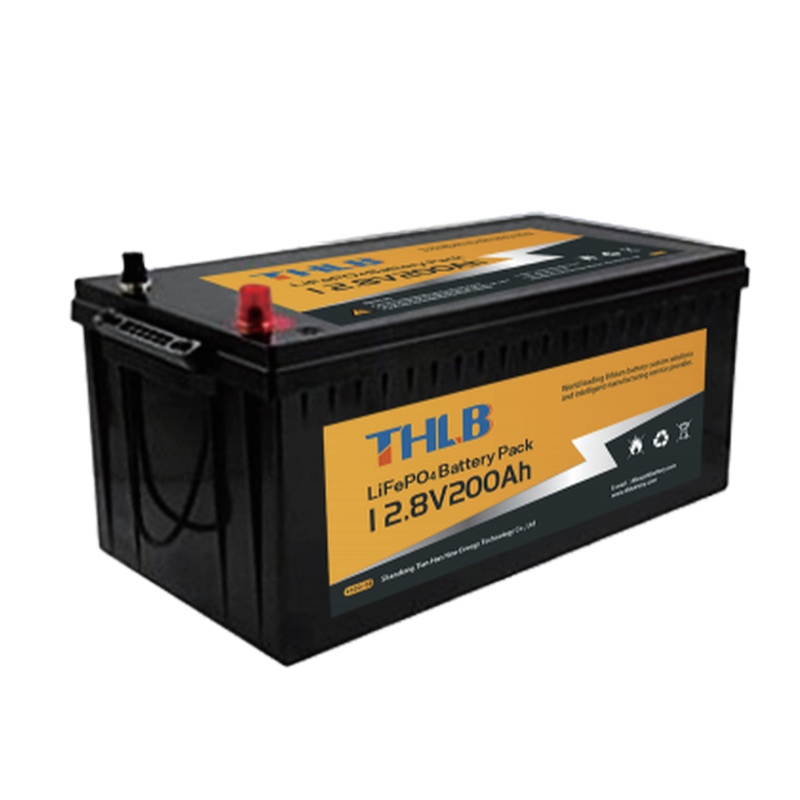

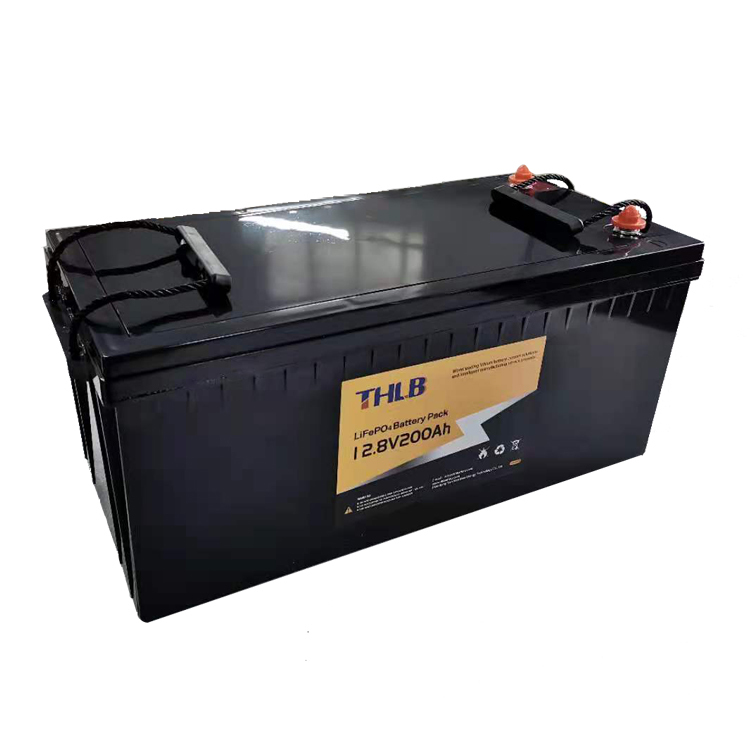

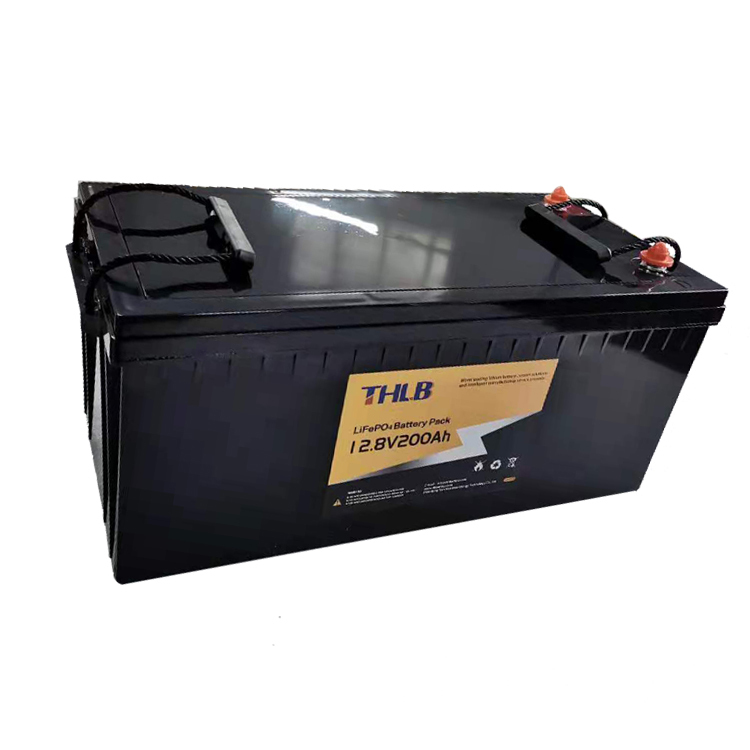

2580Wh 100A LiFePO4 Battery Lead Acid Replacement Battery 12V 200Ah
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V200Ah |
| Minimum Order Quantity | 5 watts |
| Price | $300/watts 5-49 watts |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Max Load Quantity(cells) | 4 |
|---|---|---|---|
| Cycle Life | 1200 Cycles | Application | Boats, Electric Wheelchairs, Solar Energy Storage Systems |
| Operating Temperature(℃) | -20-60 | Cathode Materials | LiFePO4 |
| Rated Capacity | 200±5Ah(0.2C) | Enery | About 2580Wh |
| Normal Voltage | 12.8V | Charge Voltage | 14.4±0.1V |
| Current | 100A | Cycle Life | ≥1500 Times 0.5C(80%DOD) |
| Battery Cell | LiFePO4 | Warranty | 3 Years |
| Highlight | 2580Wh 100A LiFePO4 Battery,LiFePO4 Lead Acid Replacement Battery |
||
Product Description
2580Wh 100A LiFePO4 Battery - 12V 200Ah Lead Acid Replacement
High-performance 12V 200Ah rechargeable lithium battery designed as a superior replacement for lead-acid batteries, featuring exceptional energy density and reliability.
Key Advantages Over Lead-Acid Batteries
- Extended cycle lifespan for long-term reliability
- Compact and lightweight design for easy installation
- Higher energy density delivering more current output
- Superior performance across wider temperature ranges
- Environmentally friendly LiFePO4 chemistry
- Comprehensive extended warranty coverage
Customization Note: The specifications shown are for reference purposes. We specialize in designing and manufacturing customized battery solutions tailored to your specific requirements.
Technical Specifications
| Normal Voltage | 12.8V |
| Rated Capacity | 200±5Ah (0.2C) |
| Energy | Approximately 2580Wh |
| Cycle Life | ≥1500 cycles at 0.5C (80% DOD) |
| Charge Voltage | 14.4±0.1V |
| Charge Mode | 0.5C to 14.4V, then 14.4V, charge current to 0.02C (CC/CV) |
| Charge Current | 100A |
| Max. Charge Current | 200A |
| Charge Temperature | 0℃ to 45℃ |
| Discharge Temperature | -20℃ to 60℃ |
| Storage Temperature | 0℃ to 40℃ |
| Material System | LiFePO4 |
| Material of Case | ABS |
| Dimensions | (522±1)mm × (240±1)mm × (218±2)mm |
| Weight | 29±0.3Kg |
| Terminal | M8 |
| Protection Functions | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
Additional Product Line
Energy Power Battery Models
Packaging & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong, certified with ISO9001:2008 quality system.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples with a lead time of 7-10 days. The buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, we offer a 3-year warranty. If any quality problems occur on our side during this period, we will send a replacement.
Q4: What is your company's advantage?
A4: We supply only high-quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM and ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We require: 1. Battery pack dimensions in mm, 2. Capacity, 3. Voltage, 4. Maximum discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We provide CE, ROHS, FCC, IEC62133, MSDS, and UN38.3 certifications.
Q9: What is your lead time for mass production?
A9: Typically 25-30 days depending on the items after receiving down payment and sample confirmation.
