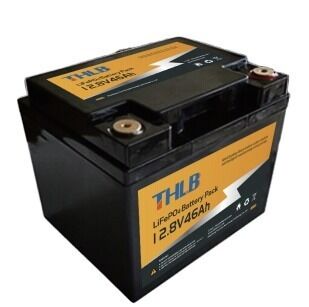

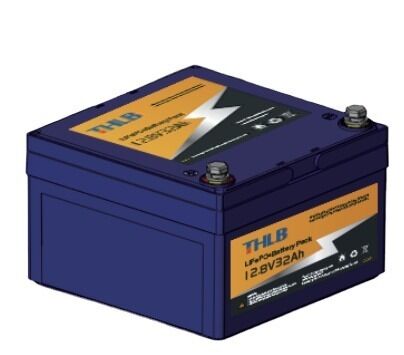

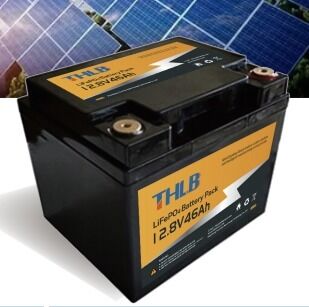

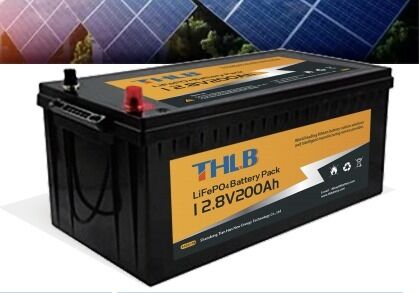

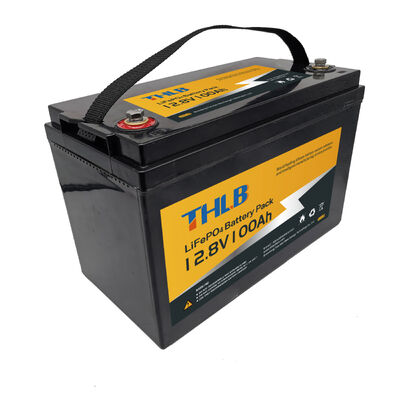

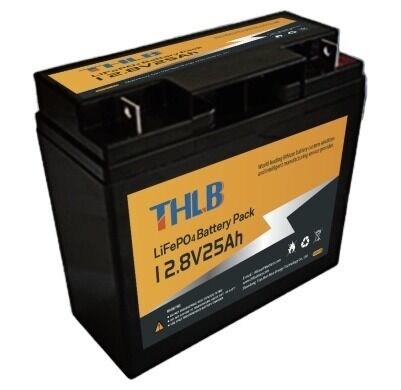

THLB 12V Lithium Battery 12.8V 25.6V 48V Lifepo4 Battery For Electric Scooter
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V 50Ah |
| Minimum Order Quantity | 10 units |
| Price | $180/units 10-999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Battery Size | 26650 |
|---|---|---|---|
| Cycle Life | 6000 Cycles | Cathode Materials | LiFePO4 |
| Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Electric Bicycles,UPS,power Tools,aerospace | Weight | 10.5Kg |
| Operating Temperature(℃) | -20-60 | Capacity | 12.8V 50Ah |
| Charge Voltage | 14.4±0.1V | Charge Current | 30A |
| Cycle Life | ≥6000times 0.5C(80%DOD) | Internal Resistance | ≤40mΩ |
| Battery Cell | LiFePO4 | Warranty | 3 Years |
| Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S18P | ||
| Highlight | THLB 12V Lithium Battery,Electric Scooter 48V Lifepo4 Battery,THLB 48V Lifepo4 Battery |
||
Product Description
THLB 12V Lithium Battery for Electric Scooters
High-performance 12.8V, 25.6V, and 48V LiFePO4 battery solutions designed specifically for electric scooters. Available in 50Ah, 100Ah, and 200Ah capacities with lightweight construction at just 10.5kg.
Key Advantages Over Lead Acid Batteries
- Extended cycle lifespan for long-term reliability
- Compact and lightweight design for easy installation
- Higher energy density delivering superior current output
- Enhanced temperature adaptability for varied operating conditions
- Environmentally friendly composition
- Comprehensive warranty coverage
Customization Note: The specifications shown are representative examples. We specialize in designing, developing, and manufacturing fully customized battery solutions tailored to your specific requirements.
Product Overview
Technical Specifications
| Main Kit Includes | 1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 60Ah |
| Battery Energy | 768Wh |
| Inner Resistance | < 40mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S19P |
| Reference Battery Size | (260±1)*(168±1)*(212±1) mm |
| Reference Battery Weight | 10.5±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=30A |
| Normal Discharge Current | 30A |
| Max. Continuous Output Current | 50A |
| Max. Continuous Output Power | 640W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Product Range
Energy Power Battery Models
Packaging & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send new units as replacement.
Q4: What is your company's advantage?
A4: We only supply high-quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need the following details: 1. Size of the battery pack in mm; 2. Capacity of the battery pack; 3. Voltage of the battery pack; 4. Max discharge current; 5. Cable and connector types; 6. Casing and terminals if required; 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, RoHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for mass production?
A9: Generally, about 25-30 days depending on different items after receiving down payment and sample confirmation.
