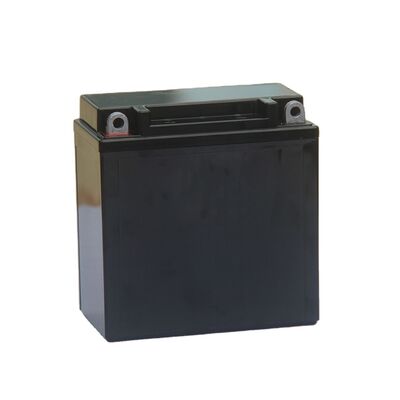

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8v 18ah, (26650-3.2V-4S6P) |
| Minimum Order Quantity | 10 pieces |
| Price | $58/pieces 10-49 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 1000 Cycles |
|---|---|---|---|
| Application | Boats, Toys, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiFePO4 | Type | Li-ion |
| Voltage | 12V | Capacity | 18Ah |
| Category | Rechargeable Batteries Pack | Cycle Characteristic | 2000 Times |
| Working Temperature | -20°C~60°C | Battery Weight | 2.5±0.1kg |
| Reference Battery Size | 168x128x102mm | ||
| Highlight | Customizable Lead Acid Replacement Battery,Lead Acid Replacement Battery Rechargeable,Rechargeable Lithium Ion Battery Pack |
||
Product Description

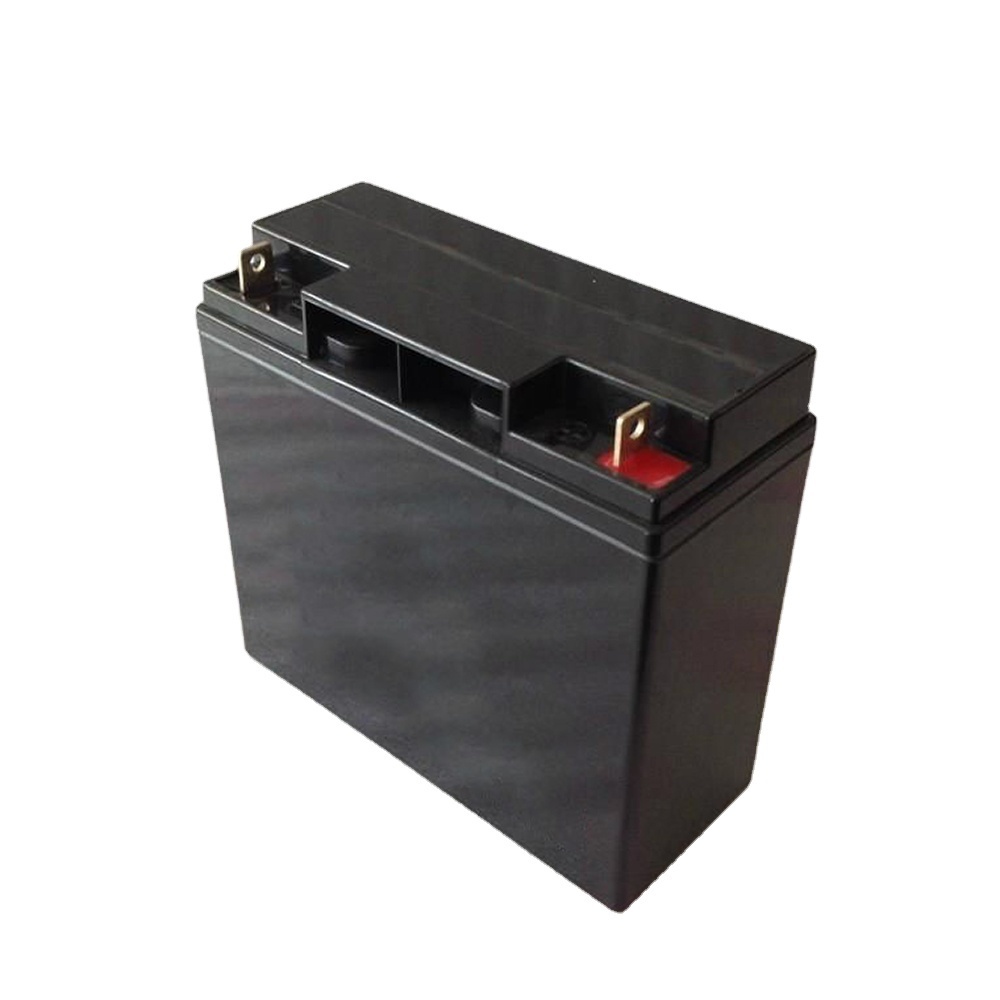

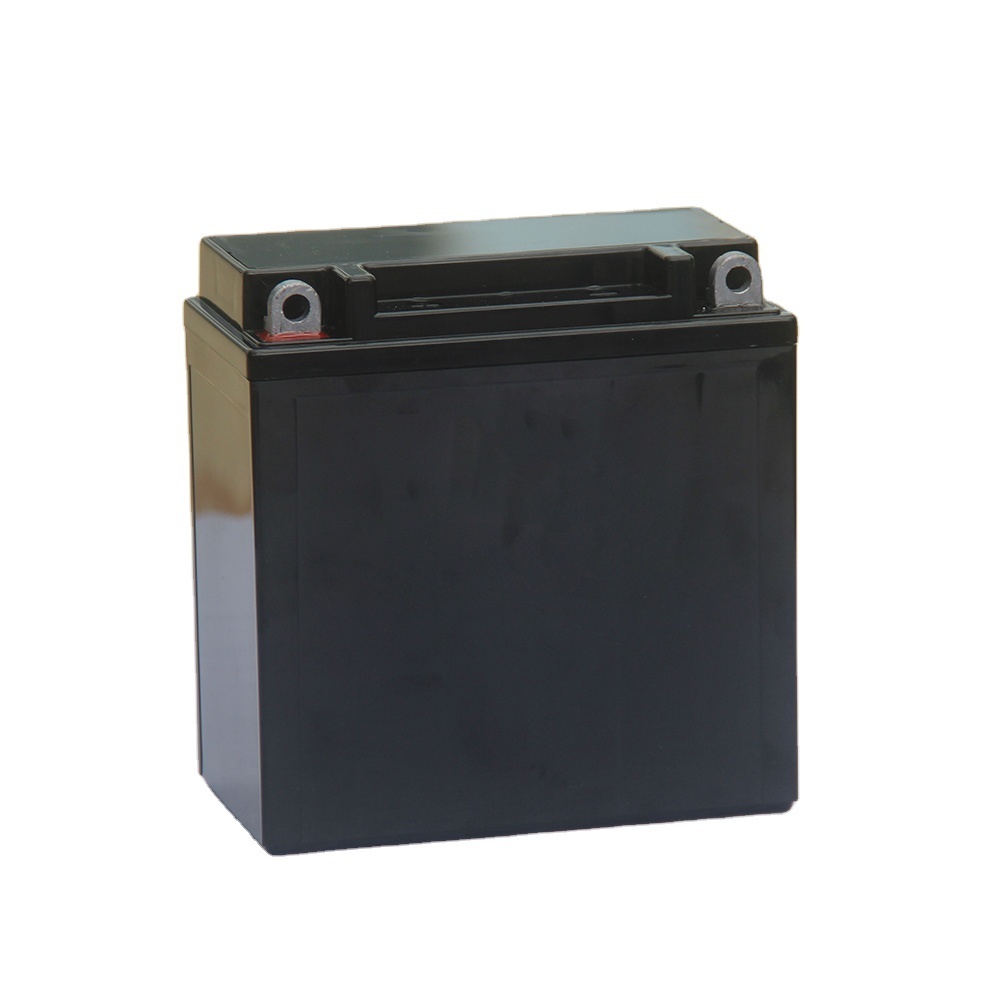

Customizable Lead Acid Replacement Battery
12 Volt Customizable Lithium Ion Rechargeable Battery Pack Replacement Alternative for Lead Acid Boats Energy Backup
Factory customized rechargeable battery lithium ion pack 12volt lithium battery for electric bike
Product Specifications
| Product Model | GC-12V-018LFP-B (26650-3.2V-4S6P) |
| Electrical Characteristics | |
| Normal Voltage | 12.8V |
| Rated Capacity | 18±1Ah(0.2C) |
| Energy | About 230.4Wh |
| Internal Resistance | ≤40mΩ |
| Cycle Life | ≥2,500times 0.2C(80%DOD) |
| Passive Protection Function | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
| Standard Charge | |
| Charge Voltage | 14.4±0.15V |
| Charge Mode | 0.2C to 14.4V, then 14.4V,charge current to 0.01C (CC/CV) |
| Charge Current | 4A |
| Max. Charge Current | 5A |
| Standard Discharge | |
| Continuous Current | 20A |
| Max Continuous Current | ≤30A |
| Max. Pulse Current | ≤66A(≤1s) |
| Discharge Cut-off Voltage | About 10.0V |
| Environmental | |
| Charge Temperature | 0℃ to 45℃ |
| Discharge Temperature | -20℃ to 60℃ |
| Storage Temperature | 0℃ to 40℃ |
| Mechanical | |
| Material System | LiFePO4 |
| Material of Case | Plastic |
| Dimensions (mm) | 168x128x102 |
| Weight | 2.5±0.1kg |
| Terminal | Torberry connector |
Performance Curves
Charge and Discharge Curve
Cycle Performance
Company Information

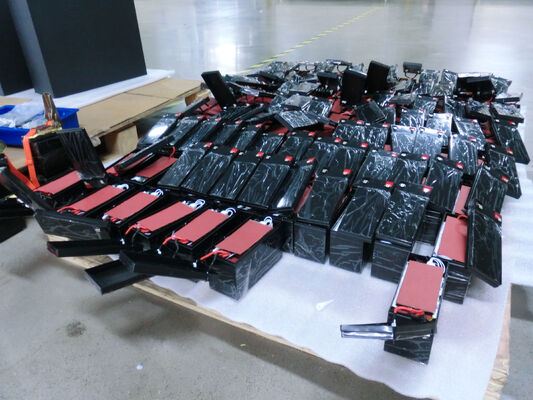

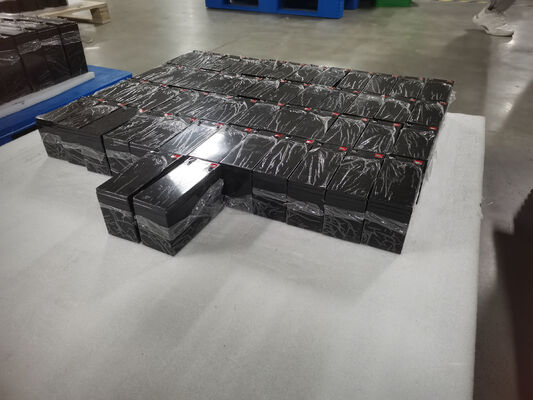

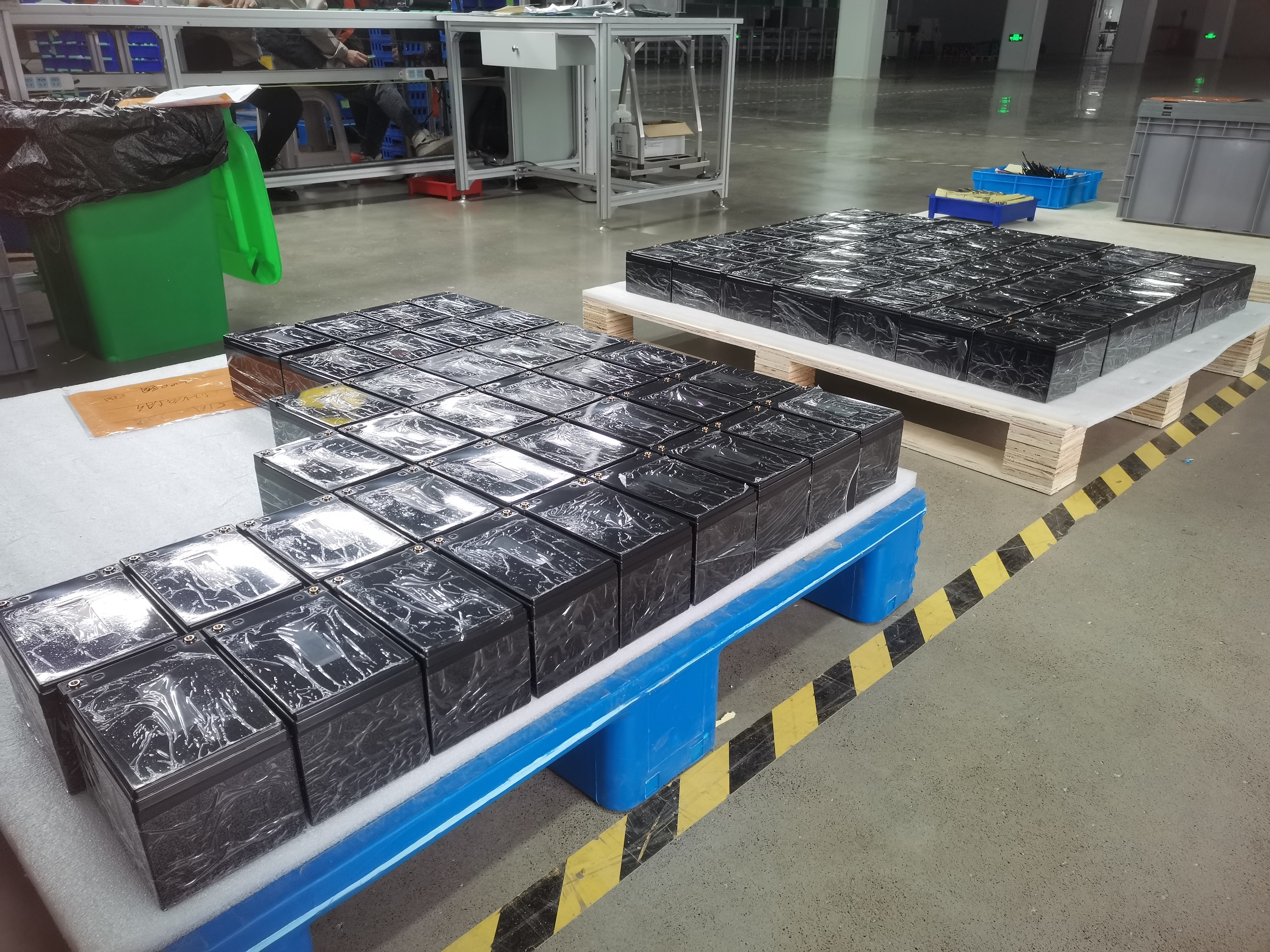

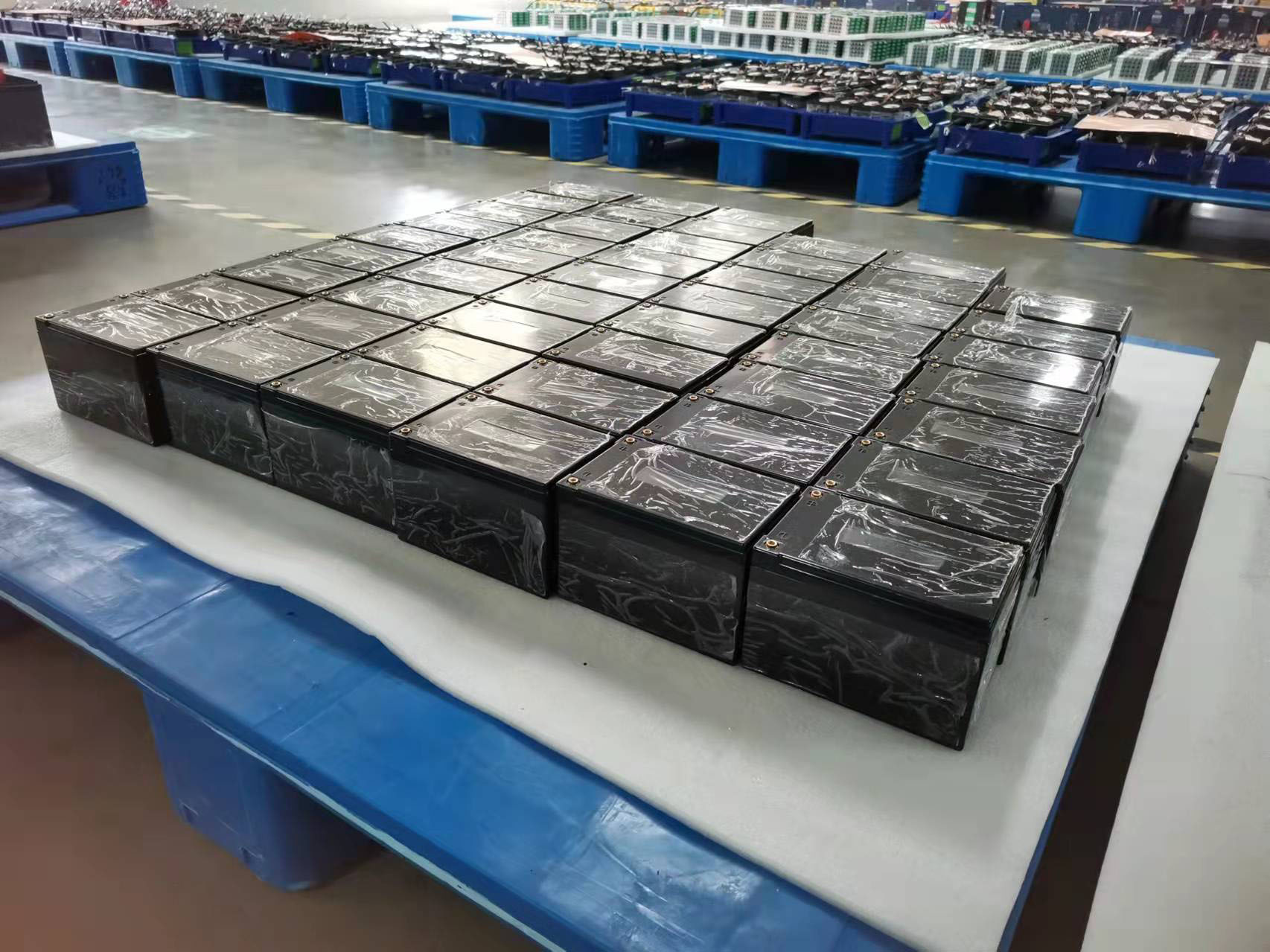

Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
