12.8V 200Ah LiFePO4 26650 3.2V 3200mAh 4S47P Battery Pack BMS
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12V150Ah |
| Minimum Order Quantity | 10 pieces |
| Price | $298/pieces 10-49 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 1200 Cycles |
|---|---|---|---|
| Application | Boats, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiFePO4 | Type | Li-ion |
| Voltage | 12V | Capacity | 150Ah |
| Category | Rechargeable Batteries Pack | Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S47P |
| Cycle Characteristic | 2000 Times | Working Temperature | -20°C~60°C |
| Battery Weight | 18.2±0.2 Kg | Reference Battery Size | (342±1)*(173±1)*(212±1) Mm |
| Color | White,black | ||
| Highlight | 12.8V 200Ah LiFePO4 26650,3200mAh 4S47P Battery Pack BMS,26650 3.2V 3200mAh 4S47P Battery |
||
Product Description
12.8V 200Ah LiFePO4 26650 3.2V 3200mAh 4S47P Battery Pack BMS
High-capacity 12.8V 200Ah LiFePO4 battery pack with 2000 cycle life, designed for renewable energy storage applications. Features 26650 3.2V 3200mAh cells in 4S47P configuration with integrated BMS protection.

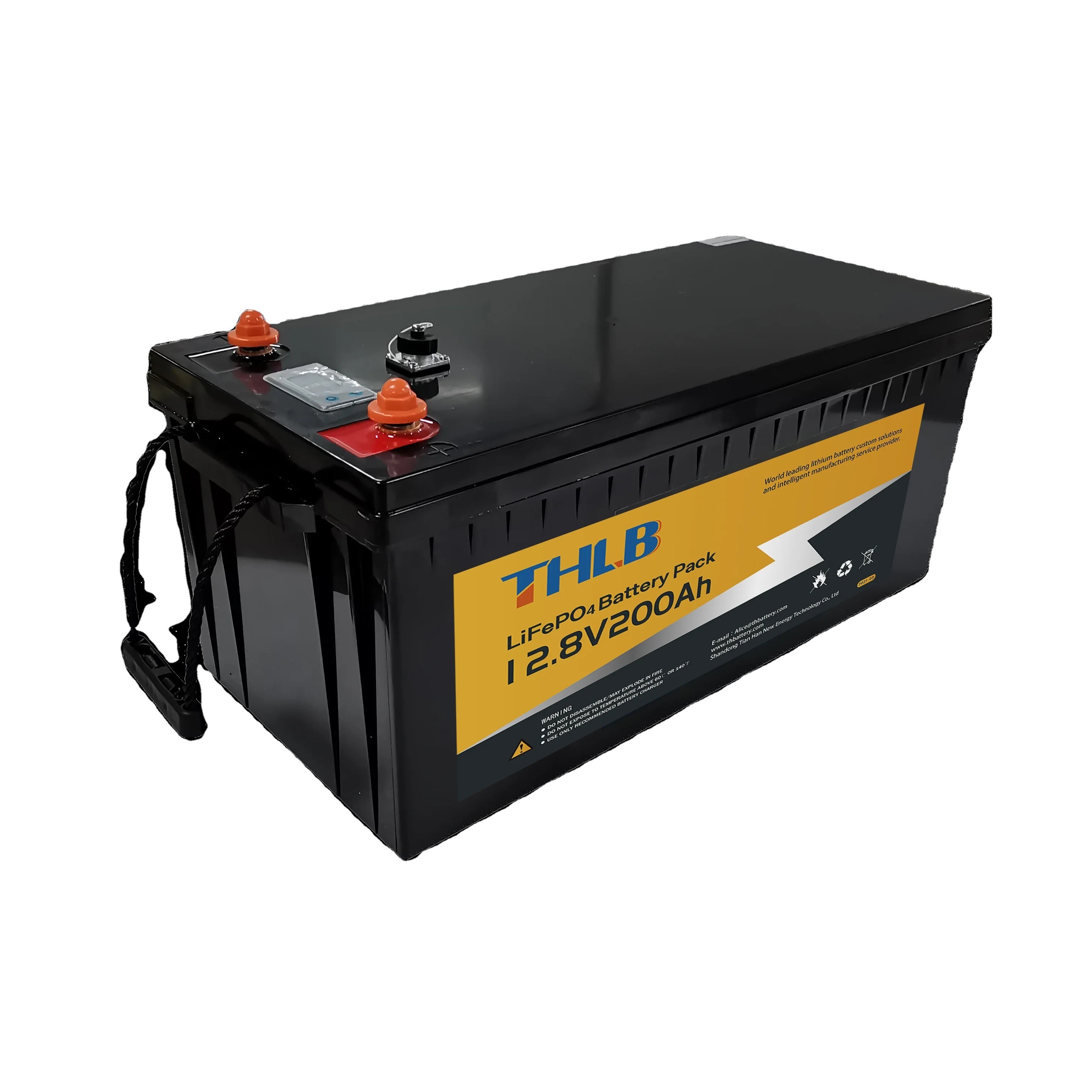

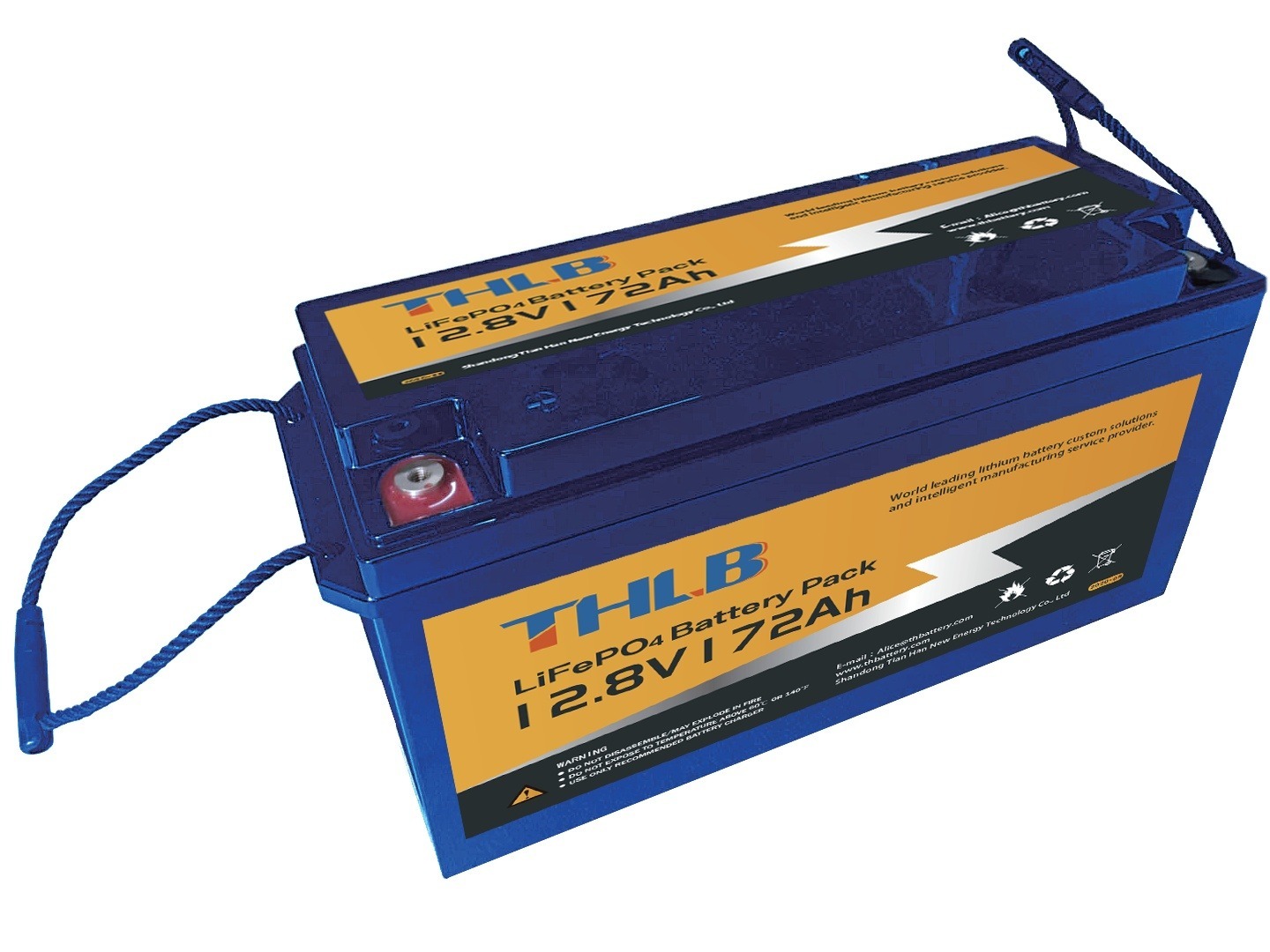

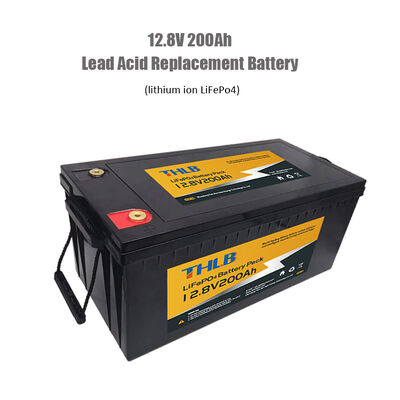

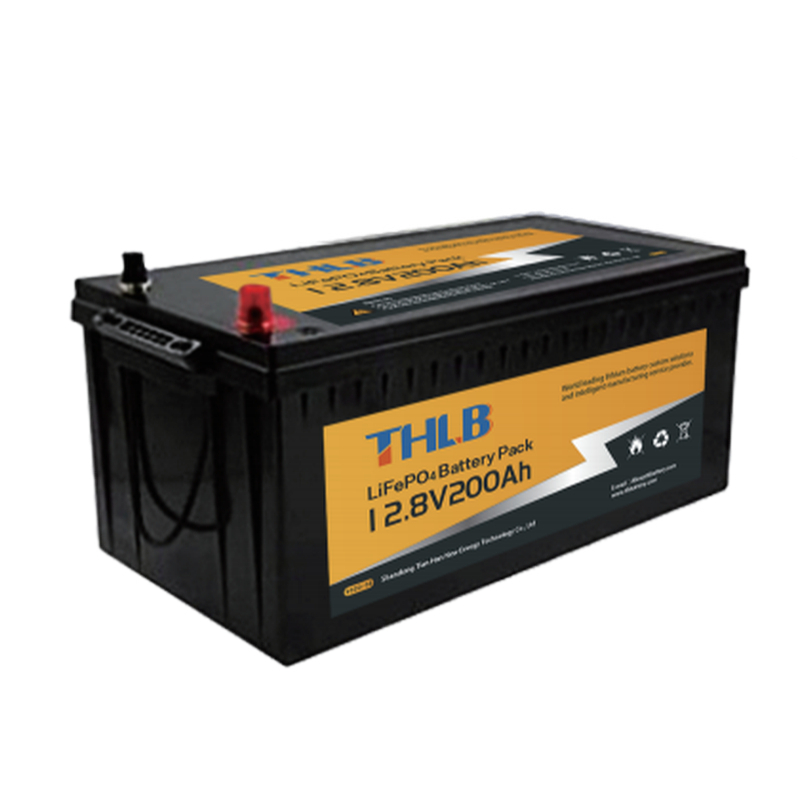

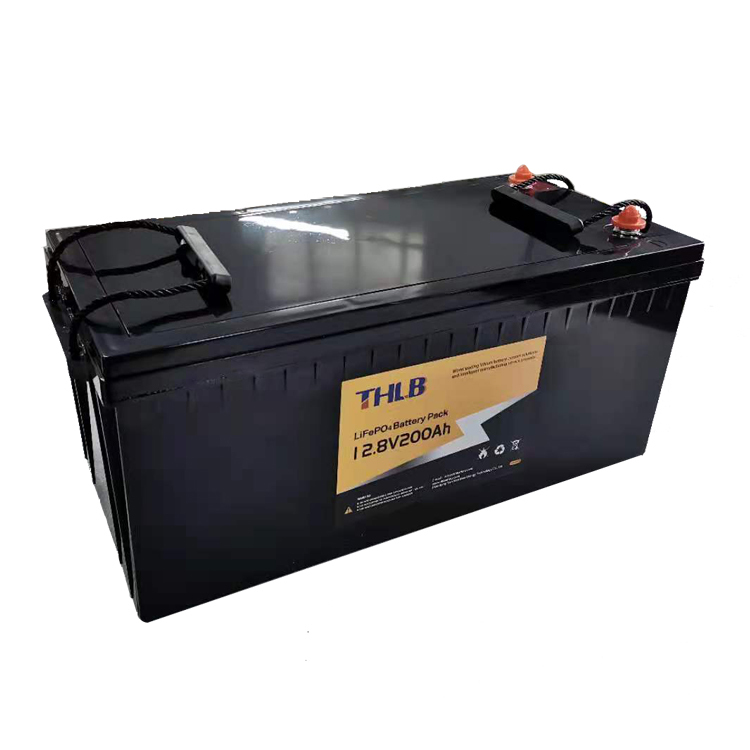

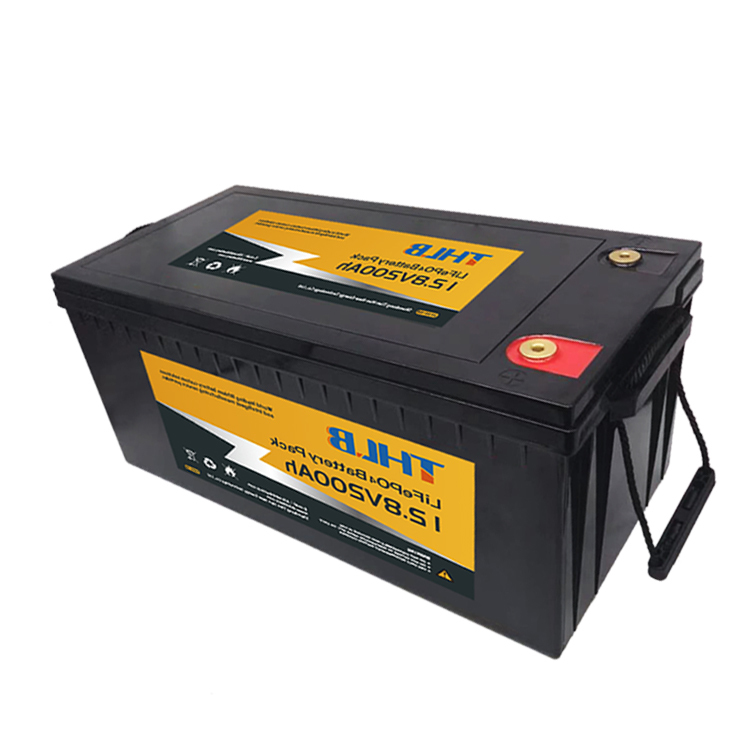

Product Images
Main Kit Includes
| 1 x 12V150Ah LiFePO4 Battery Module | 1 x 4S-150A PCM |
| 1 x Plastic Battery Case | 2 x M8 Terminals |
Product Specification - Lithium Iron Phosphate Battery Pack 12V 150Ah
| Normal Voltage | 12.8V |
| Normal Capacity | 150Ah |
| Battery Energy | 1920Wh |
| Inner Resistance | < 60mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S47P |
| Reference Battery Size | (342±1)*(173±1)*(212±1) mm |
| Reference Battery Weight | 18.2±0.2 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=50A |
| Normal Discharge Current | 75A |
| Max. Continuous Output Current | 150A |
| Max. Continuous Output Power | 1920W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Product Views
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
