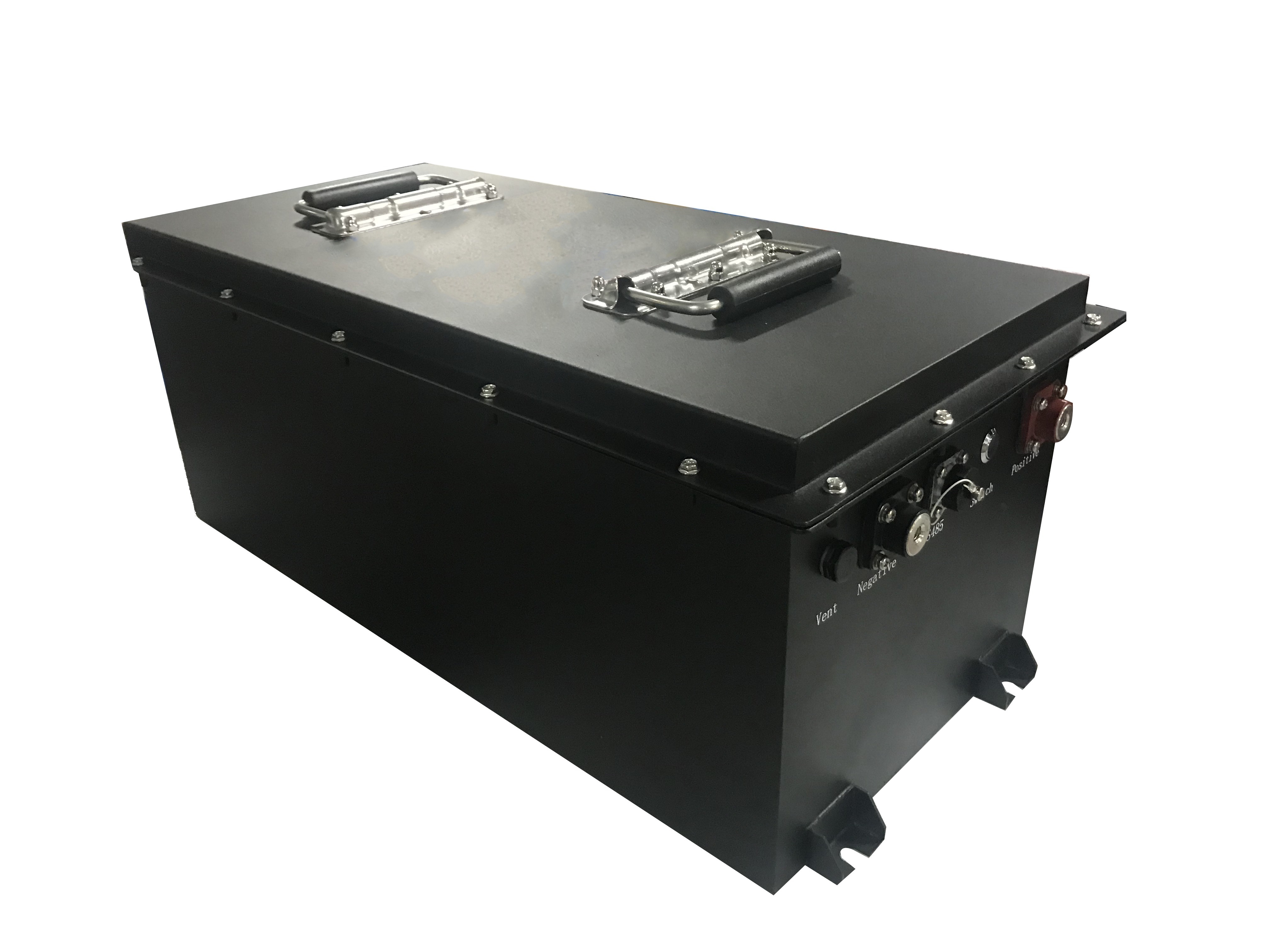

Rechargeable Lithium Golf Cart Battery Pack THLB 1200 Cycles 51.2V 60Ah
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 51.2V60Ah LiFePO4 Battery |
| Minimum Order Quantity | 2 pieces |
| Price | $600/pieces 2-19 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 1200 Cycles |
|---|---|---|---|
| Application | Boats, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiFePO4 | Type | LiFePO4 |
| Voltage | 51.2v | Capacity | 60Ah |
| Category | Rechargeable Batteries Pack | Cycle Characteristic | 1500-2000 Times |
| Working Temperature | -20°C~60°C | Battery Weight | 46.3±0.1 Kg |
| PCM | YES | Size | 560x345x240mm |
| Highlight | Rechargeable Lithium Golf Cart Battery Pack,Lithium Golf Cart Battery Pack THLB,1200 Cycles Golf Cart Battery |
||
Product Description

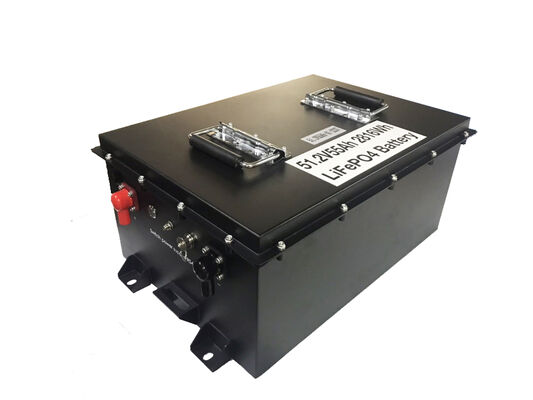

Rechargeable Lithium Golf Cart Battery Pack THLB 1200 Cycles 51.2V 60Ah
Max Load Quantity 4 Rechargeable Batteries Pack 51.2V 60Ah LiFePO4 Golf Cart Battery Pack Lithium Ion Rechargeable Battery
Main Kit Includes
| 1x 51.2V60Ah LiFePO4 Battery Module |
| 1x 16S-70A PCM |
| 1x Metal casing |
Product Specification
| Nominal voltage | 51.2V |
| Normal Capacity | 60±2Ah (At 0.2C discharge rate) |
| Max discharge continuous current | ≤60A |
| Discharge cut-off voltage | About 40V |
| Charge voltage | 57.6±1V |
| Charge current | ≤60A |
| Charge mode | CC/CV, please use special lithium charger |
| Discharging Inner resistance | ≤50mΩ |
| Charge temperature | 0℃～+45℃ |
| Discharge temperature | When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection |
| Humidity | RH≤85%, When the environment humidity is higher than 85%, please pay attention to protect |
| Temperature | 0℃～40℃(Capacity 80%) Recommended long-term storage temperature is 15~25℃ |
| Humidity | RH≤50%, Easily oxidized components note sealed |
| Protection function | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
| Shell material | Metal |
| Weight | 46.3±0.3kg |
| Size(L*W*H) | (560±1)mm *(345±1)mm *(240±2)mm |
| Cycle | Standard charge at 0.2C(A), rest 0.5~1 h, discharge at 0.2C to cut off voltage, rest 0.5~1h, repeat the above steps until 1500 cycles (capacity retention rate≥80%) |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
