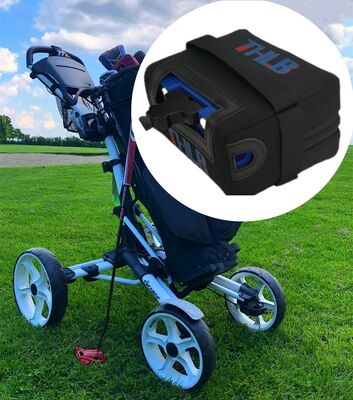

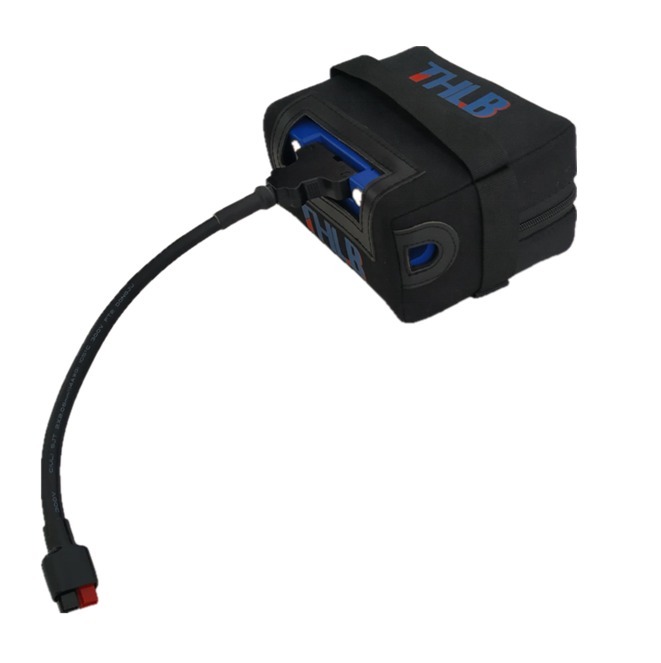

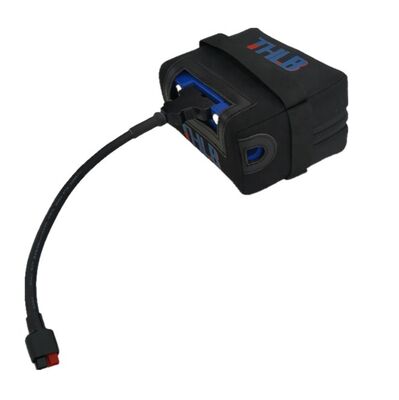

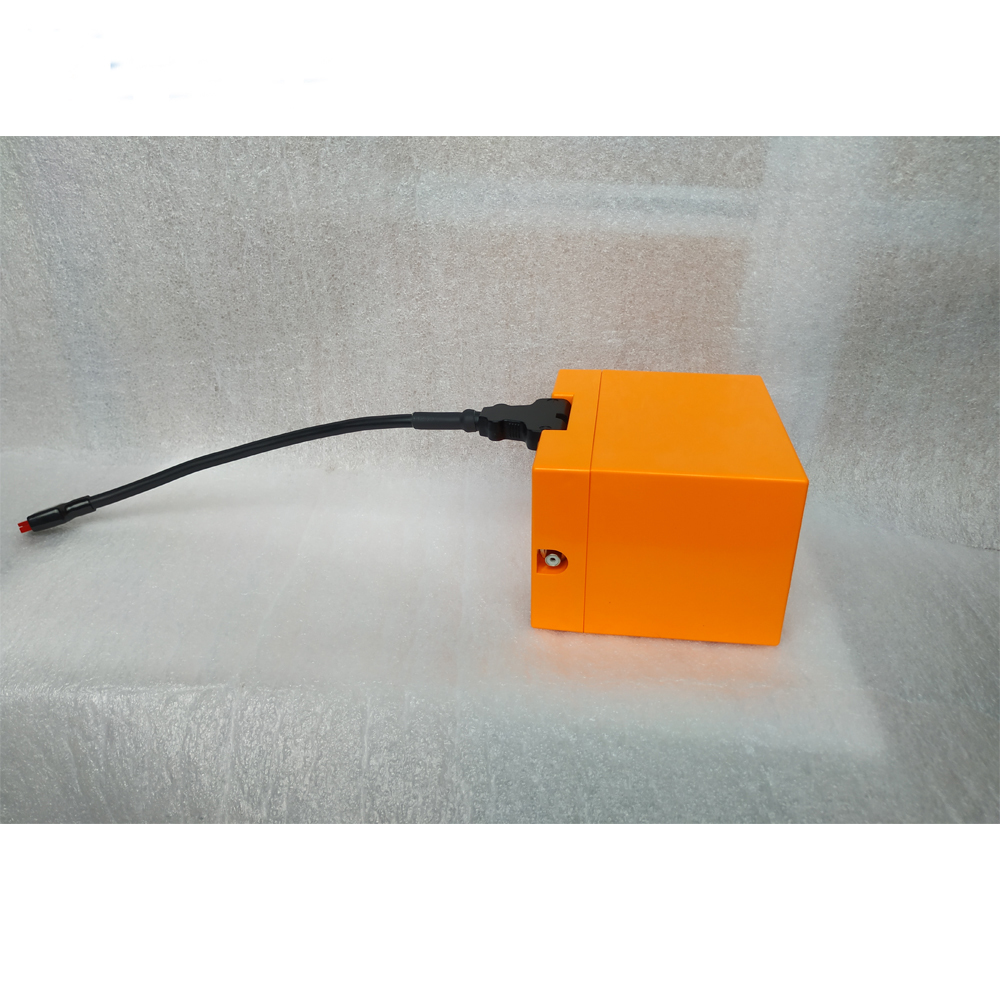

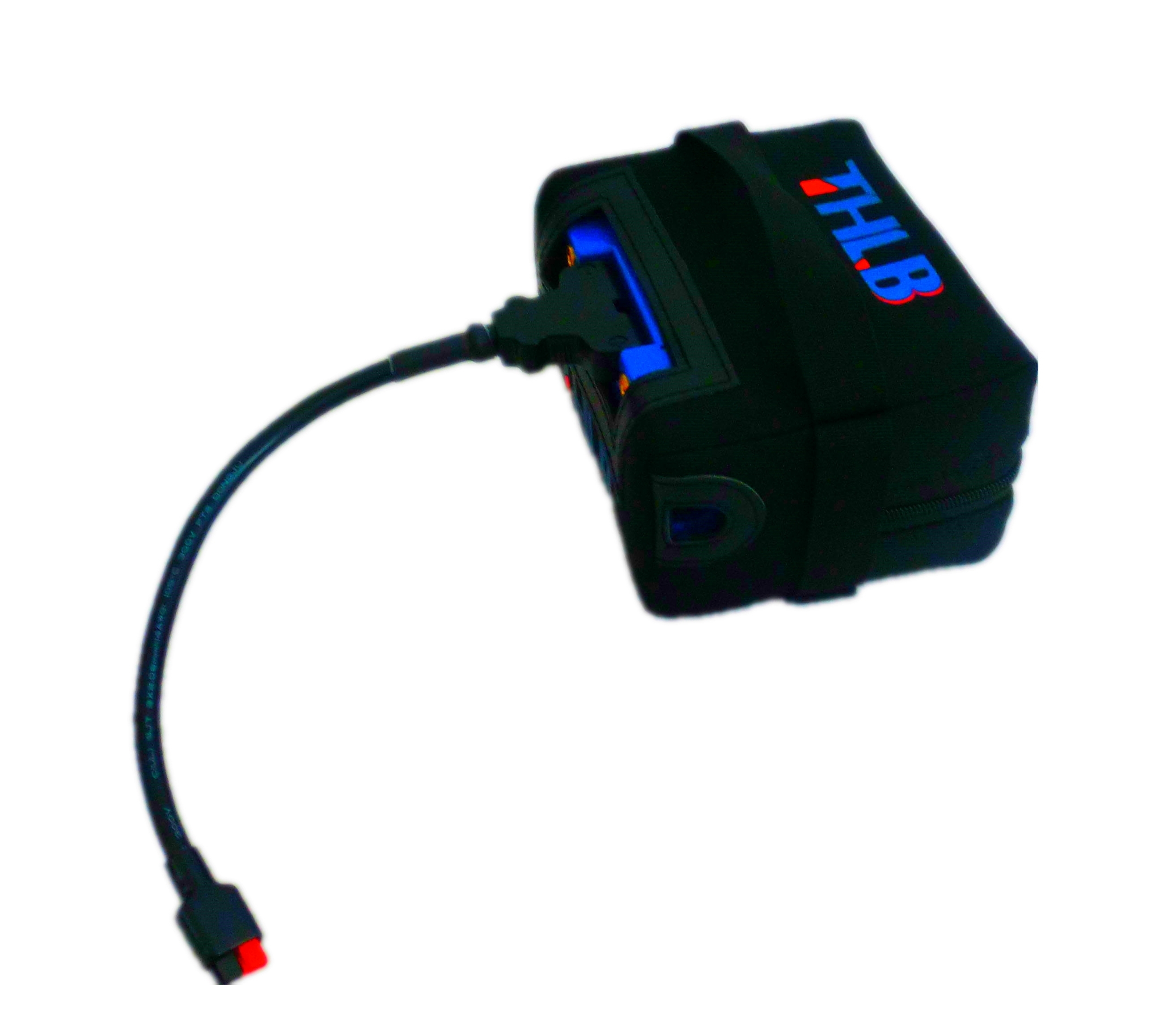

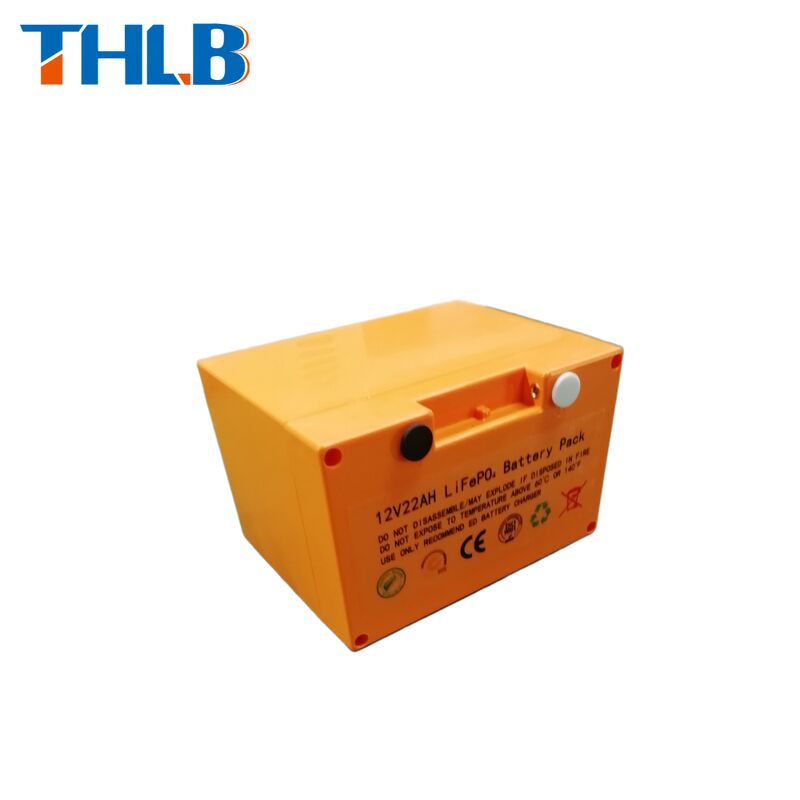

12.8V 22Ah Golf Cart Lithium Batteries LiFePO4 1000 Cycles THLB Battery

Brand Name:	THLB
Model Number:	12.8V 22Ah
MOQ:	5 units
Price:	$75/units 10-999 units
Packaging Details:	Standard Packaging
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

High Energy Density,Long Cycle Life Etc

Cycle Life:

1000 Cycles

Cathode Materials:

LiFePO4

Capacity:

12.8V 22Ah

Charge Voltage:

14.4±0.1V

Charge Current:

Cycle Life:

≥6000times 0.5C(80%DOD)

Internal Resistance:

≤40mΩ

Battery Cell:

LiFePO4

Warranty:

3 Years

Highlight:

12.8V 22Ah Golf Cart Lithium Batteries

LiFePO4 1000 Cycles THLB Battery

12.8V 22Ah THLB Battery

Product Description

12.8V 22Ah Golf Cart Lithium Batteries LiFePO4 1000 Cycles

Operating Temperature: -20°C to 60°C | 12.8V 22Ah LiFePO4 Lithium Golf Cart Battery | Deep Cycle | 1000+ Cycles | Long Life

12.8V 22Ah Golf Cart Lithium Batteries LiFePO4 1000 Cycles THLB Battery 0

12.8V 22Ah Golf Cart Lithium Batteries LiFePO4 1000 Cycles THLB Battery 1

Product Specifications

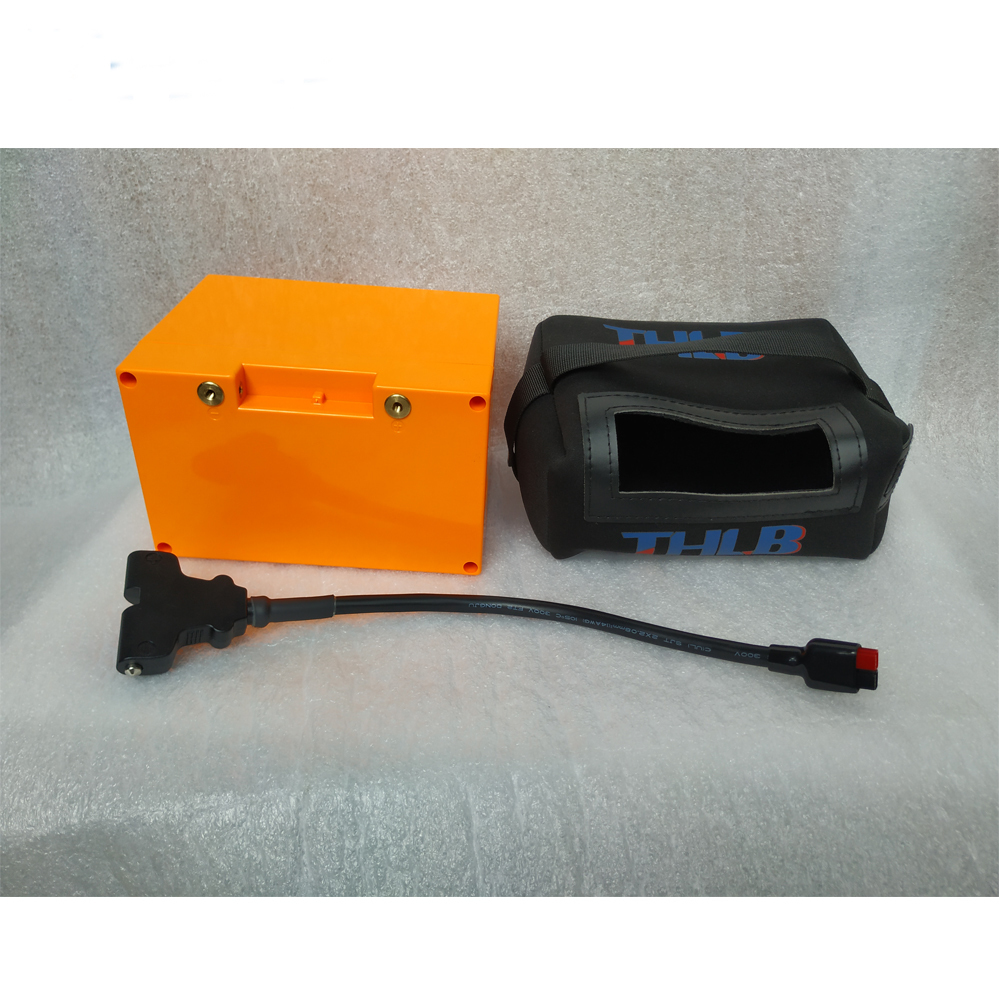

MAIN KIT INCLUDES	1 x 12V22Ah LiFePO4 Battery Module 1 x 4S-25A PCM 1 x Plastic Battery Case
Normal Voltage	12.8V
Normal Capacity	22Ah
Battery Energy	768Wh
Inner Resistance	< 40mΩ
Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration	LiFePO4 26650 3.2V 3600mAh-4S6P
Reference Battery Size	(260±1)(168±1)(212±1) mm
Reference Battery Weight	2.5±0.1 kg

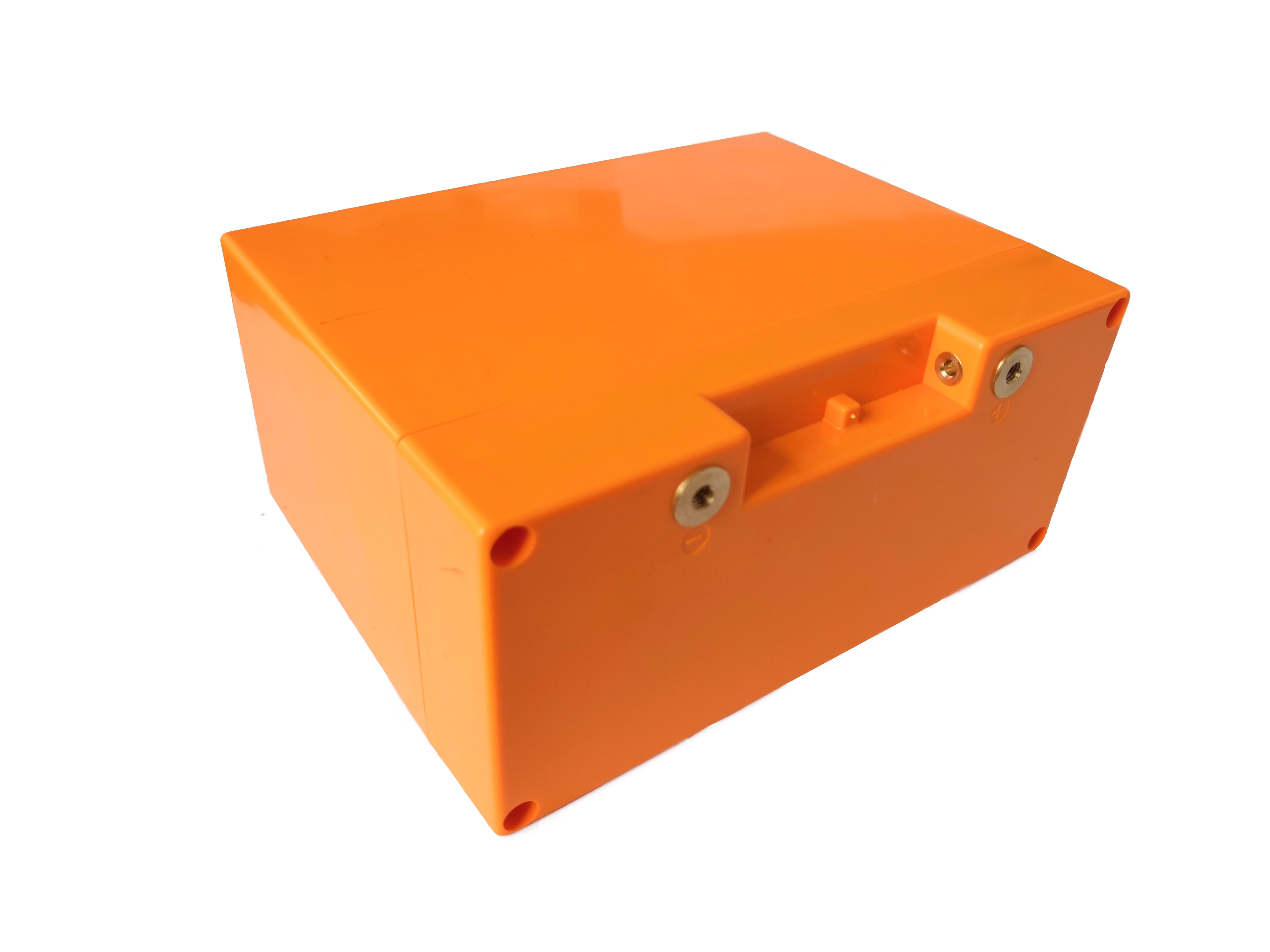

Battery Encapsulation	Plastic Case
Charge Voltage	14.4V
Charge Mode	CC/CV
Normal Charge Current	<=20A
Normal Discharge Current	20A
Max. Continuous Output Current	20A
Max. Continuous Output Power	288W
Passive Protection Function	Over charge protection; Over discharge protection; Over current protection; Charge balance function
Operation Temperature Range	Charge: 0°C - 45°C Discharge: -20°C - 60°C
Battery Storage Temperature	-20°C - 25°C
Individual Cell Approval	CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

Additional Product Models

12.8V 22Ah Golf Cart Lithium Batteries LiFePO4 1000 Cycles THLB Battery 3

Packing & Delivery

Company Profile

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.

Q4: What is your company's advantage?

A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, it is available.

Q6: What information do you need to make a customized battery pack?

A6: We need the details below:

Size of the battery pack you need in mm
Capacity of the Battery pack
Voltage of the battery pack
Max discharge current
Cable and connector types you need
Casing and Terminals if required
Any protection circuits you may need

Q7: Are your battery real capacity?

A7: All of our battery cells with Grade A, 100% new and real capacity.

Q8: What kind of certificates do you have?

A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.

Q9: What is your lead time for the mass production?

A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
