LiFePO4 12V Golf Trolley Battery 50Ah 100Ah 200Ah Lithium Golf Trolley Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V 50Ah |
| Minimum Order Quantity | 10 units |
| Price | $180/units 10-999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Max Load Quantity(cells) | 4 |
|---|---|---|---|
| Cycle Life | 800 Cycles | Application | Boats, Electric Wheelchairs, Solar Energy Storage Systems, Electric Bicycles,UPS,power Tools,aerospace |
| Operating Temperature(℃) | -20-60 | Cathode Materials | LiFePO4 |
| Capacity | 12.8V 50Ah | Charge Voltage | 14.4±0.1V |
| Charge Current | 30A | Cycle Life | ≥6000times 0.5C(80%DOD) |
| Internal Resistance | ≤40mΩ | Battery Cell | LiFePO4 |
| Warranty | 3 Years | Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S18P |
| Highlight | LiFePO4 12V Golf Trolley Battery,12V Golf Trolley Battery 50Ah,200Ah lithium golf trolley battery |
||
Product Description
LiFePO4 12V Golf Trolley Battery
Available in 50Ah, 100Ah, and 200Ah capacities for golf trolleys and trolling motors
Product Overview
High-performance LiFePO4 12V lithium iron phosphate batteries offering superior cycle life and reliability for golf trolley applications.
Advantages Over Lead Acid Batteries
- Extended cycle lifespan
- Compact and lightweight design
- Higher energy density for increased current output
- Superior temperature adaptability
- Environmentally friendly composition
- Extended warranty coverage
Note: Specifications shown are for reference. We specialize in custom battery design and production to meet your specific requirements.

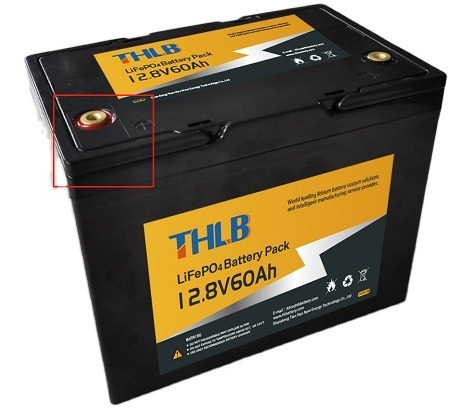

Product Images
Technical Specifications
| Main Kit Includes | 1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 60Ah |
| Battery Energy | 768Wh |
| Inner Resistance | < 40mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S19P |
| Reference Battery Size | (260±1)*(168±1)*(212±1) mm |
| Reference Battery Weight | 10.5±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=30A |
| Normal Discharge Current | 30A |
| Max. Continuous Output Current | 50A |
| Max. Continuous Output Power | 640W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function |
| Operation Temperature Range | Charge: 0°C - 45°C Discharge: -20°C - 60°C |
| Battery Storage Temperature | -20°C - 25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Products
Packaging & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send new ones as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need: 1. Battery pack dimensions in mm, 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.
Q7: Are your battery real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for the mass production?
A9: Generally, about 25-30 days depending on different items after receiving down payment and sample confirmation.
