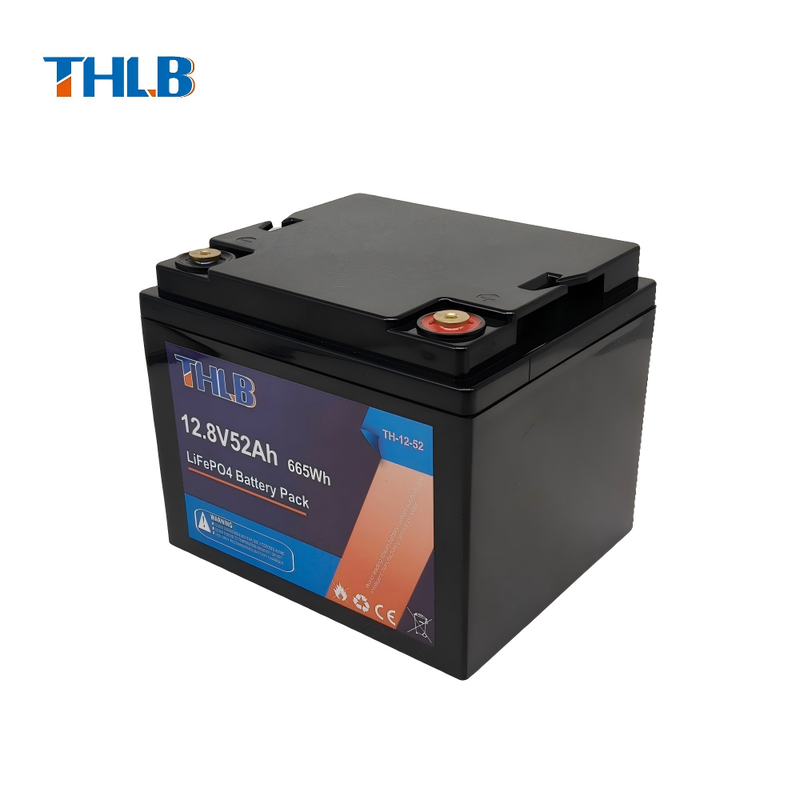

Name: LiFePO4 12V Golf Trolley Battery 50Ah 100Ah 200Ah Lithium Golf Trolley Battery
Brand: Shandong Tian Han New Energy Technology Co., Ltd.
SKU: 12.8V 50Ah
Availability: InStock

Brand Name:	THLB
Model Number:	12.8V 50Ah
MOQ:	10 units
Price:	price can be negotiation
Packaging Details:	Standard Packaging
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

High Energy Density,Long Cycle Life Etc

Capacity:

12.8V 50Ah

Charge Voltage:

14.4±0.1V

Charge Current:

30A

Cycle Life:

≥2000times 0.5C(80%DOD)

Internal Resistance:

≤40mΩ

Battery Cell:

LiFePO4

Operating Temperature(℃):

-20-60

Warranty:

2Years

Highlight:

LiFePO4 12V Golf Trolley Battery

12V Golf Trolley Battery 50Ah

200Ah lithium golf trolley battery

Product Description

LiFePO4 12V Golf Trolley Battery

Available in 50Ah, 100Ah, and 200Ah capacities for golf trolleys and trolling motors

Product Overview

High-performance LiFePO4 12V lithium iron phosphate batteries offering superior cycle life and reliability for golf trolley applications.

Advantages Over Lead Acid Batteries

Extended cycle lifespan
Compact and lightweight design
Higher energy density for increased current output
Superior temperature adaptability
Environmentally friendly composition
Extended warranty coverage

Note: Specifications shown are for reference. We specialize in custom battery design and production to meet your specific requirements.

Product Images

Technical Specifications

Main Kit Includes	1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals
Normal Voltage	12.8V
Normal Capacity	60Ah
Battery Energy	768Wh
Inner Resistance	< 40mΩ
Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration	LiFePO4 26650 3.2V 3200mAh-4S19P
Reference Battery Size	(260±1)(168±1)(212±1) mm
Reference Battery Weight	10.5±0.1 kg
Battery Encapsulation	Plastic Case
Charge Voltage	14.4V
Charge Mode	CC/CV
Normal Charge Current	<=30A
Normal Discharge Current	30A
Max. Continuous Output Current	50A
Max. Continuous Output Power	640W
Passive Protection Function	Over charge protection; Over discharge protection; Over current protection, Charge balance function
Operation Temperature Range	Charge: 0°C - 45°C Discharge: -20°C - 60°C
Battery Storage Temperature	-20°C - 25°C
Individual Cell Approval	CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

Additional Products

Packaging & Delivery

Company Profile

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send new ones as replacement.

Q4: What is your company's advantage?

A4: We only supply high quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, OEM/ODM services are available.

Q6: What information do you need to make a customized battery pack?

A6: We need: 1. Battery pack dimensions in mm, 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.

Q7: Are your battery real capacity?

A7: All of our battery cells are Grade A, 100% new with real capacity.

Q8: What kind of certificates do you have?

A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.

Q9: What is your lead time for the mass production?

A9: Generally, about 25-30 days depending on different items after receiving down payment and sample confirmation.
