Consumer Electronics, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies

Weight:

20kg

Operating Temperature(℃):

-20℃--60℃

Battery Type:

LifePO4

Nominal Capacity:

100Ah/200Ah

Nominal Voltage:

48V/51.2V

Warranty:

3 Years

OEM/ODM:

Available

Brand:

New(grade A Cell)

Size:

310*180*234mm

Communication:

RS485/CAN Communication

Discharge Cut-off Voltage:

About 37.5V

Discharge Current:

100A

Highlight:

48V Off Grid Solar Battery

10KW Energy Storage Lithium Battery

1500 Cycles Energy Lithium Battery

Product Description

48V Off Grid Solar Battery - 10KW Energy Storage with 1500 Cycles

48V Nominal Voltage Off Grid Solar System 10KW Complete Home Energy System with 51.2V Cylindrical Lithium Ion Batteries

Ternary Battery Pack Specifications

Items	Parameters
Battery Model	IFR-48.0V100.0Ah
Nominal voltage	48V
Typical capacity	100Ah ± 3Ah (At 0.2C discharge rate)
Working current	50A
Max discharge current	100A
Cut-off voltage	about 37.5V
Voltage	54.0V±0.2V
Charge	0℃～+55℃
Discharge	-20℃～+60℃
Discharging Inner Resistance	≤22mΩ
Protection Function	Overcharge, over-discharge, over-current, temperature, short circuit and other protection functions
Communication mode	UART/RS485/RS232/CAN
Output mode	Barrier terminal (KT8-10-2P/Black/Pitch 21/Current 115A/M6 screw)
Weight	41±1kg
Size(LWH)	(482460177)±2mm
Cycle	≥1500,and the capacity retention rate is ≥80%

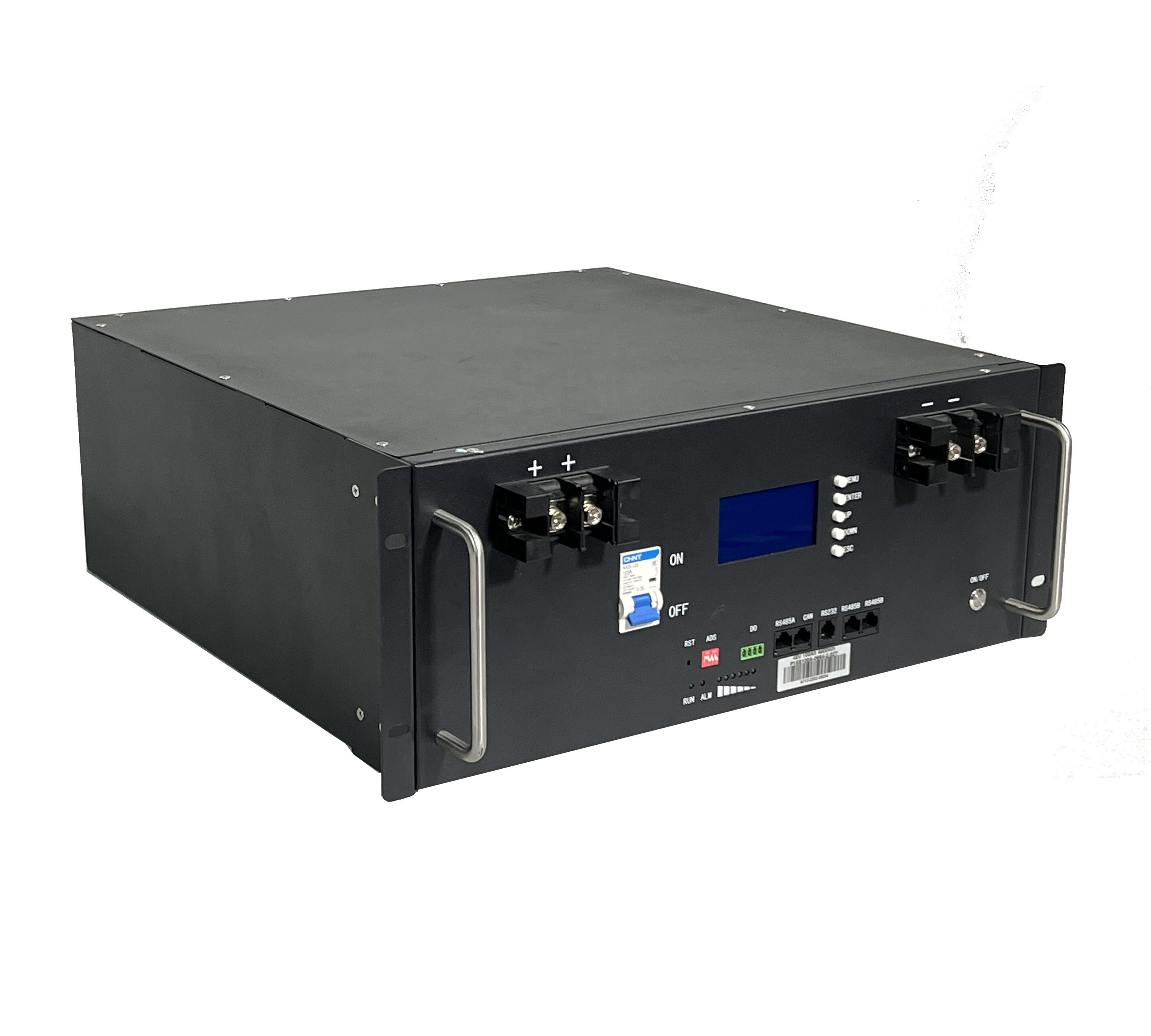

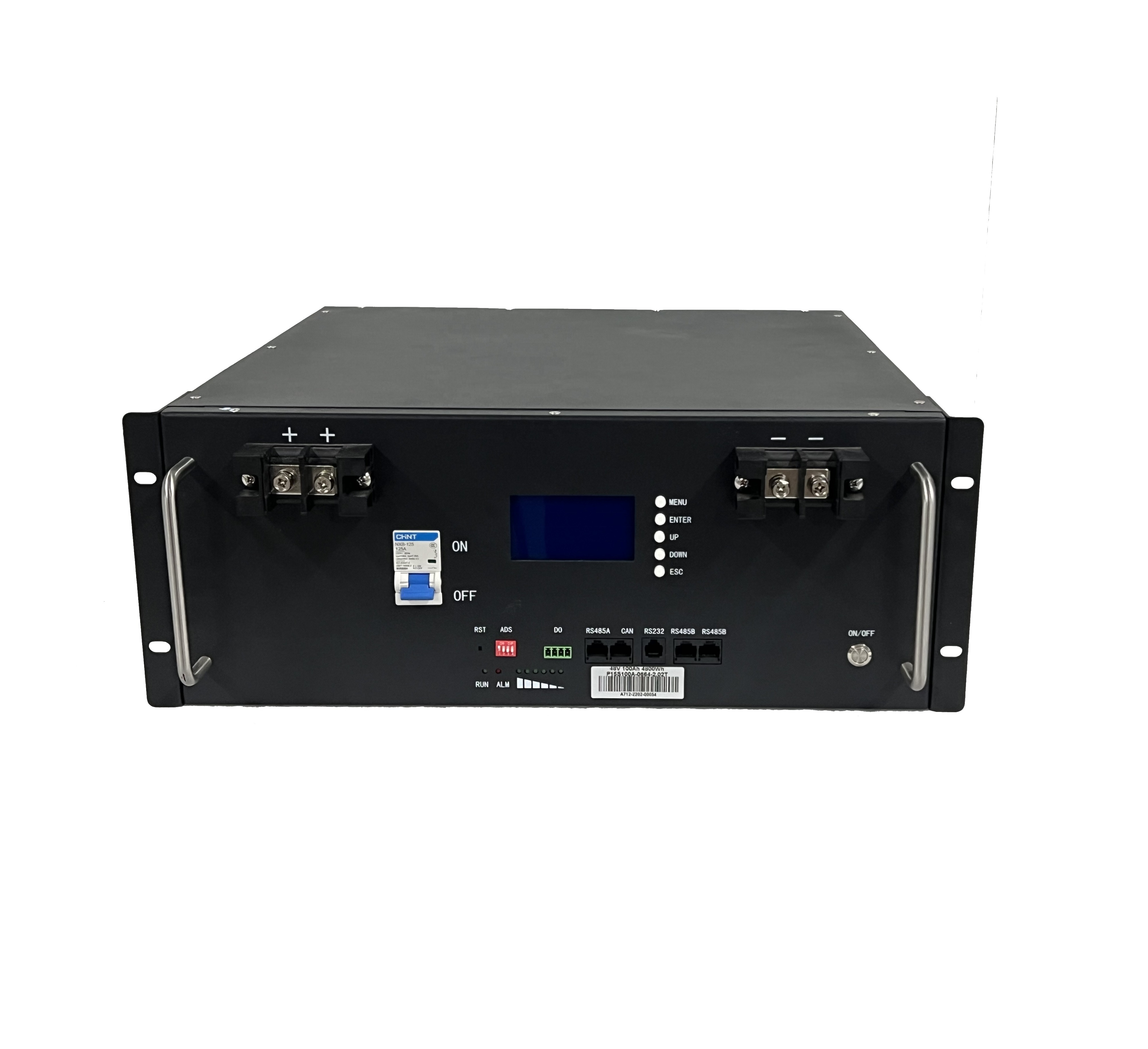

Product Images

Packaging and Delivery

Company Profile

Shandong Tian Han New Energy Technology Co., Ltd is an ISO 9001:2015 certified manufacturer, specializing in R&D, manufacturing, sales, and service of lithium batteries, power lithium batteries, battery packs, and BMS etc.

Our batteries have passed CB, CE, UL, RoHS, REACH, BIS, UN38.3, MSDS etc certification to ensure quality.

Customization/OEM/ODM are available.

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.

Q4: What is your company's advantage?

A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, it is available.

Q6: What information do you need to make a customized battery pack?

A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need.

Q7: Are you battery real capacity?

A7: All of our battery cells with Grade A, 100% new and real capacity.

Q8: What kind of certificates do you have?

A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.

Q9: What is your lead time for the mass production?

A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
