480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 24v20Ah |
| Minimum Order Quantity | 10 pieces |
| Price | $90/pieces 10-49 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Cycle Life | 1000 Cycles |
|---|---|---|---|
| Application | Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters | Operating Temperature(℃) | -20-60 |
| Cathode Materials | LiFePO4 | Type | Li-ion |
| Voltage | 24V | Capacity | 20Ah |
| Category | Rechargeable Batteries Pack | Cell Configuration | LiFePO4 26650 3.2V 3200mAh-8S7P |
| Cycle Characteristic | 2000 Times | Working Temperature | -20°C~60°C |
| Battery Weight | 2.9±0.2 Kg | Reference Battery Size | (168±1)*(128±1)*(102±1) Mm |
| Color | White,black | ||
| Highlight | 480Wh Lithium Iron Phosphate Battery Pack,THLB 24V 20Ah Lifepo4 Battery,Lithium Iron Phosphate Battery Pack THLB |
||
Product Description
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
High-performance 480Wh Lithium Iron Phosphate battery pack with 2000 cycles lifespan and wide operating temperature range of -20°C to 60°C.

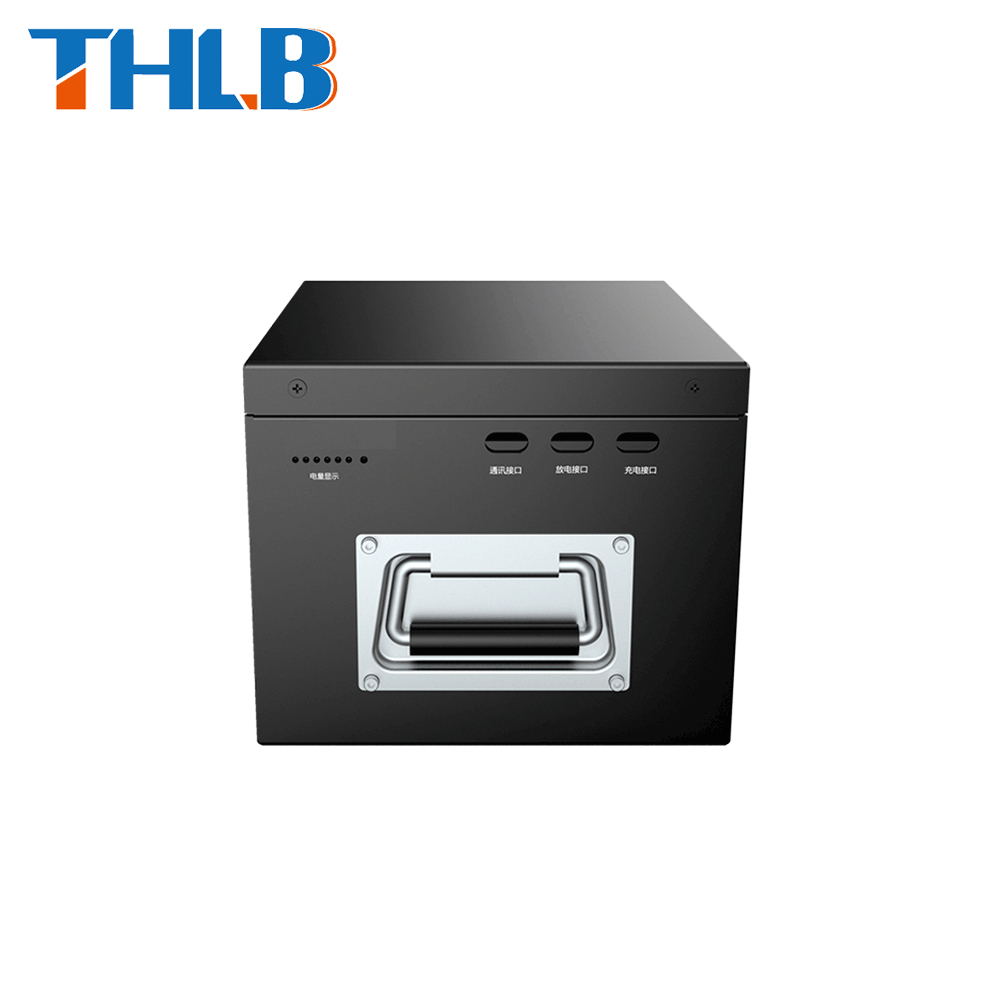

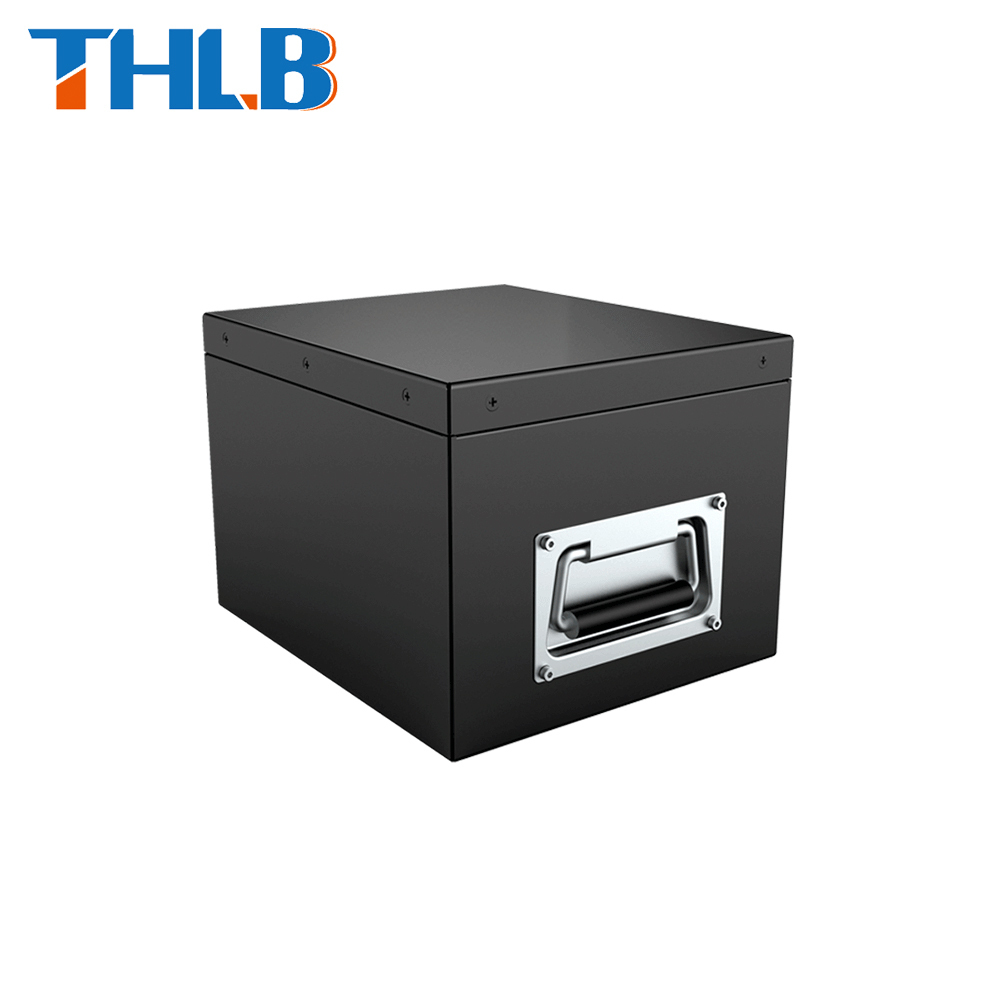

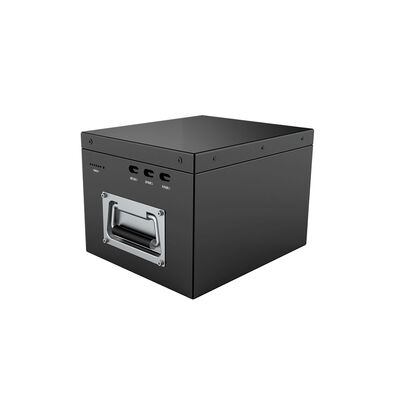

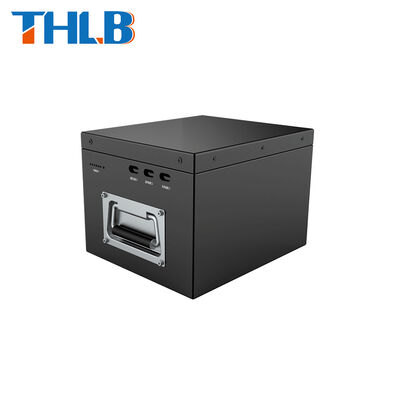

Product Images
Main Kit Includes
| 1 x 24V20Ah LiFePO4 Battery Module | 1 x 4S-20A PCM |
| 1 x Plastic Battery Case | 2 x M8 Terminals |
Product Specifications
| Normal Voltage | 24V |
| Normal Capacity | 20Ah |
| Battery Energy | 480Wh |
| Inner Resistance | < 60mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-8S7P |
| Reference Battery Size | (168±1)*(128±1)*(102±1) mm |
| Reference Battery Weight | 2.9±0.2 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 28.8V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=50A |
| Normal Discharge Current | 10A |
| Max. Continuous Output Current | 20A |
| Max. Continuous Output Power | 480W |
| Operation Temperature Range | Charge: 0°C - 45°C Discharge: -20°C - 60°C |
| Battery Storage Temperature | -20°C - 25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Safety Performance Classification
Comprehensive Safety Testing for Industrial Applications
- Resistance to heavy loads - tested to prevent ignition or explosion
- Resistance to thermal shock - tested to prevent ignition or explosion
- Anti-overcharge protection - tested to prevent ignition or explosion
- Resistance to overdischarge - tested to prevent ignition or explosion
- Resistance to short circuit - tested to prevent ignition or explosion
- High temperature storage stability - tested to prevent leakage, smoke, fire or explosion
- Anti-heating protection - tested with no battery penetration through safety screen
- Anti-puncture resistance - tested to prevent ignition or explosion
- Anti-extrusion durability - tested to prevent ignition or explosion
- Resistance to low pressure - tested to prevent leakage, smoke, fire or explosion
- Constant damp heat resistance - maintains capacity above 90% of rated value
- Anti-vibration performance - maintains normal operation under stress
- Anti-collision durability - maintains normal operation after impact
- Temperature cycling stability - maintains capacity above 70% of initial state
- Flame retardant properties - meets GB/T2408-2008 FH-1 and FV-0 standards
- Insulation resistance - exceeds 2 MΩ for metal casing models

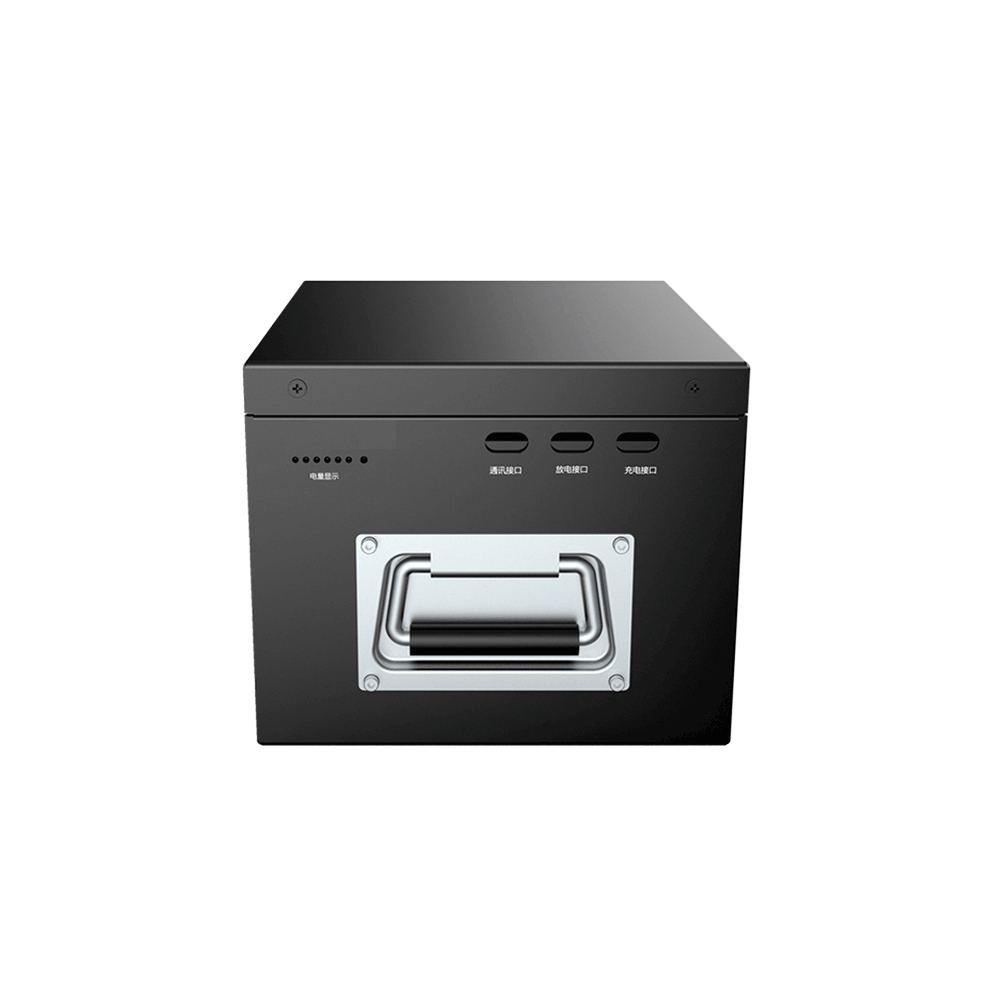

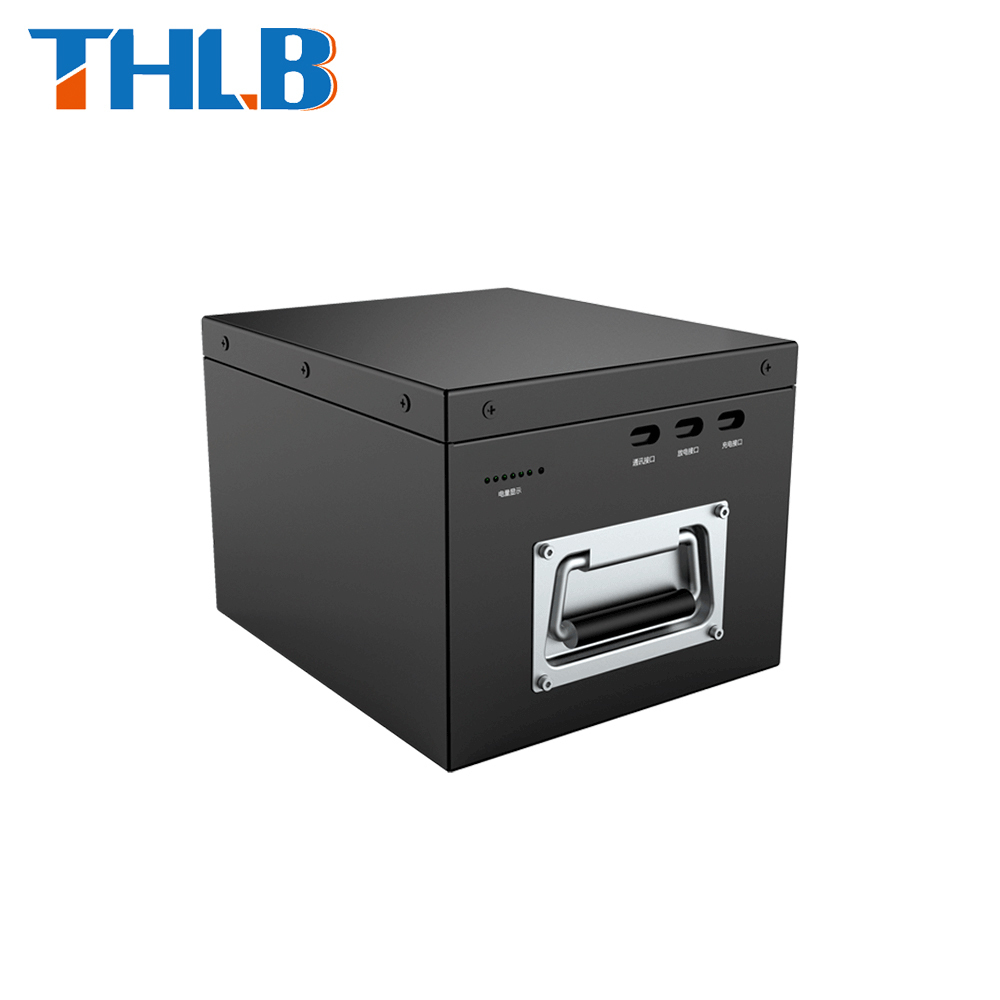

Additional Product Images
Company Information
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping costs are not covered.
Q2. What about the lead time?
A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: Minimum order quantity is 100 pieces.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or sea shipping options available.
Q5. How to proceed an order for Lithium ion cell?
A: Process includes confirming cell models, receiving specifications and quotation, order confirmation, and production upon payment.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcome.
Q7: Do you offer guarantee for the products?
A: Yes, we provide 3-5 years warranty on our products.
