6000 Cycles LiFePO4 Battery Cell 12V 60AH 100AH 200AH 400AH THLB Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V50Ah |
| Minimum Order Quantity | 10 units |
| Price | $180/units 10-999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Battery Size | 26650 |
|---|---|---|---|
| Cycle Life | 6000 Cycles | Cathode Materials | LiFePO4 |
| Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Electric Bicycles,UPS,power Tools,aerospace | Weight | 10.5Kg |
| Operating Temperature(℃) | -20-60 | Capacity | 12.8V 50Ah |
| Charge Voltage | 14.4±0.1V | Charge Current | 30A |
| Cycle Life | ≥6000times 0.5C(80%DOD) | Internal Resistance | ≤40mΩ |
| Battery Cell | LiFePO4 | Warranty | 3 Years |
| Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S18P | ||
| Highlight | 6000 Cycles LiFePO4 Battery Cell,200AH 400AH THLB Battery,12V 60AH THLB Battery |
||
Product Description
6000 Cycles LiFePO4 Battery Cell 12V 60AH-400AH

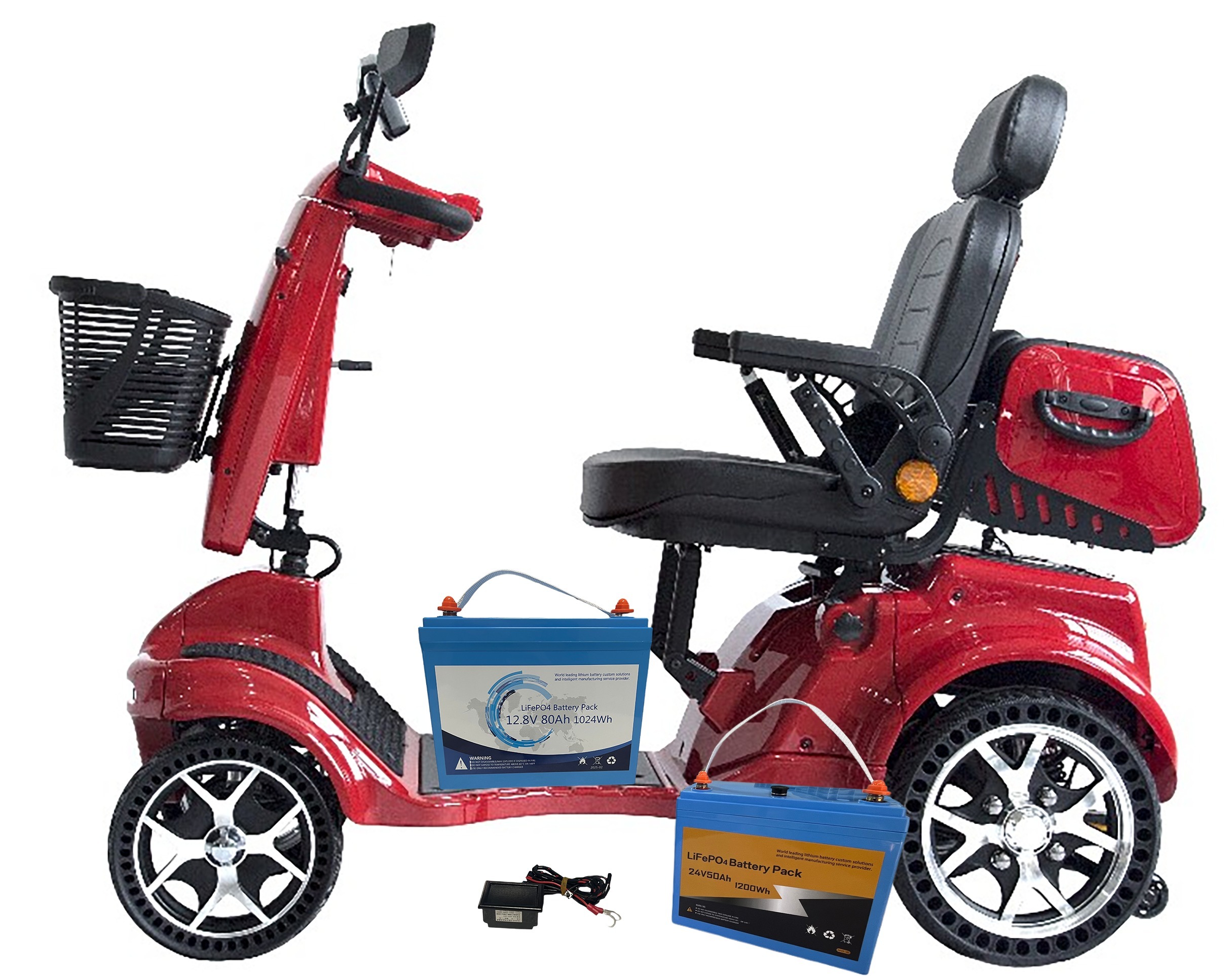

High-performance LiFePO4 battery pack designed for elderly scooters and mobility scooters with exceptional 6000-cycle lifespan at 80% depth of discharge.
Factory Direct LiFePO4 Battery Advantages
- Extended cycle lifespan compared to lead acid batteries
- Compact and lightweight design
- Higher energy density for increased current output
- Superior temperature adaptability in extreme conditions
- Environmentally friendly composition
- Comprehensive warranty coverage
Note: Specifications shown are for reference. We specialize in custom battery design and production tailored to your specific requirements.
Product Overview
Technical Specifications
| Main Kit Includes | 1 x 12V60Ah LiFePO4 Battery Module 1 x 4S-60A PCM 1 x Plastic Battery Case 2 x M8 Terminals |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 60Ah |
| Battery Energy | 768Wh |
| Inner Resistance | < 40mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S19P |
| Reference Battery Size | (260±1)*(168±1)*(212±1) mm |
| Reference Battery Weight | 10.5±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=30A |
| Normal Discharge Current | 30A |
| Max. Continuous Output Current | 50A |
| Max. Continuous Output Power | 640W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Product Range
Energy Power Battery Models
Packaging & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send new units as replacement.
Q4: What is your company's advantage?
A4: We only supply high-quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need the following details: 1. Size of the battery pack in mm; 2. Capacity of the battery pack; 3. Voltage of the battery pack; 4. Max discharge current; 5. Cable and connector types; 6. Casing and terminals if required; 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, RoHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for mass production?
A9: Generally, about 25-30 days depending on different items after receiving down payment and sample confirmation.
