10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery

Brand Name:	THLB
Model Number:	36v10ah
MOQ:	2 pieces
Price:	$90/pieces 2-29 pieces
Packaging Details:	Standard Packaging

Detail Information

Product Description

Detail Information

Place of Origin:

China

Max Load Quantity(cells):

Cycle Life:

800 Cycles

Application:

Boats, Electric Wheelchairs, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters, E-Bike, Electric Bicycle, Electric Bike

Operating Temperature(℃):

-20-60

Cathode Materials:

LiMn2O4

Voltage:

36V

Cycle Life:

500-800 Times

Battery Type:

Lithium Battery

Nominal Capacity (Ah):

10ah

Battery Cell:

NCM 3.7v

Weight:

Approx 3.5kg

Shell Material:

Plastic

Place Of Origin::

Shandong

Warranty:

3 Year

Highlight:

NCM Electric Bicycle Lithium Battery

LiMn2O4 36v 14.5ah Lithium Battery

Product Description

36V 10Ah NCM Electric Bicycle Lithium Battery

High-performance NCM 3.7V battery cell electric bicycle conversion kit with 36V 14.5Ah lithium battery capacity. Premium e-bike battery solution for reliable power and extended range.

Available Configurations

THLB 36V, 48V, 52V, 72V batteries available in 7.8Ah, 10Ah, 13Ah, 15.6Ah, 18.2Ah, and 20.8Ah capacities

Key Advantages

No memory effect - charging interruptions do not harm the battery
Comprehensive short circuit protection
Overcharge and over discharge protection
Excellent low temperature resistance
Advanced overvoltage protection
Reliable overcurrent protection
Extended service life
Easy installation and setup

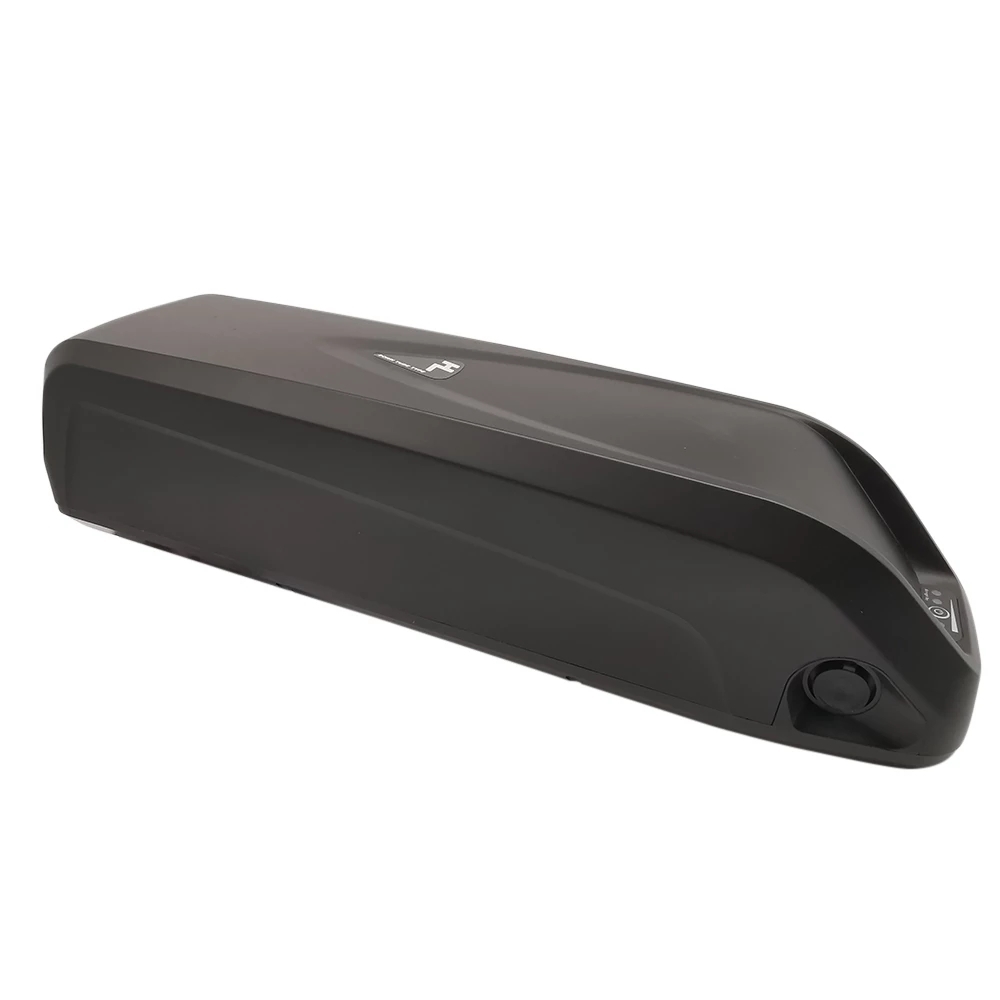

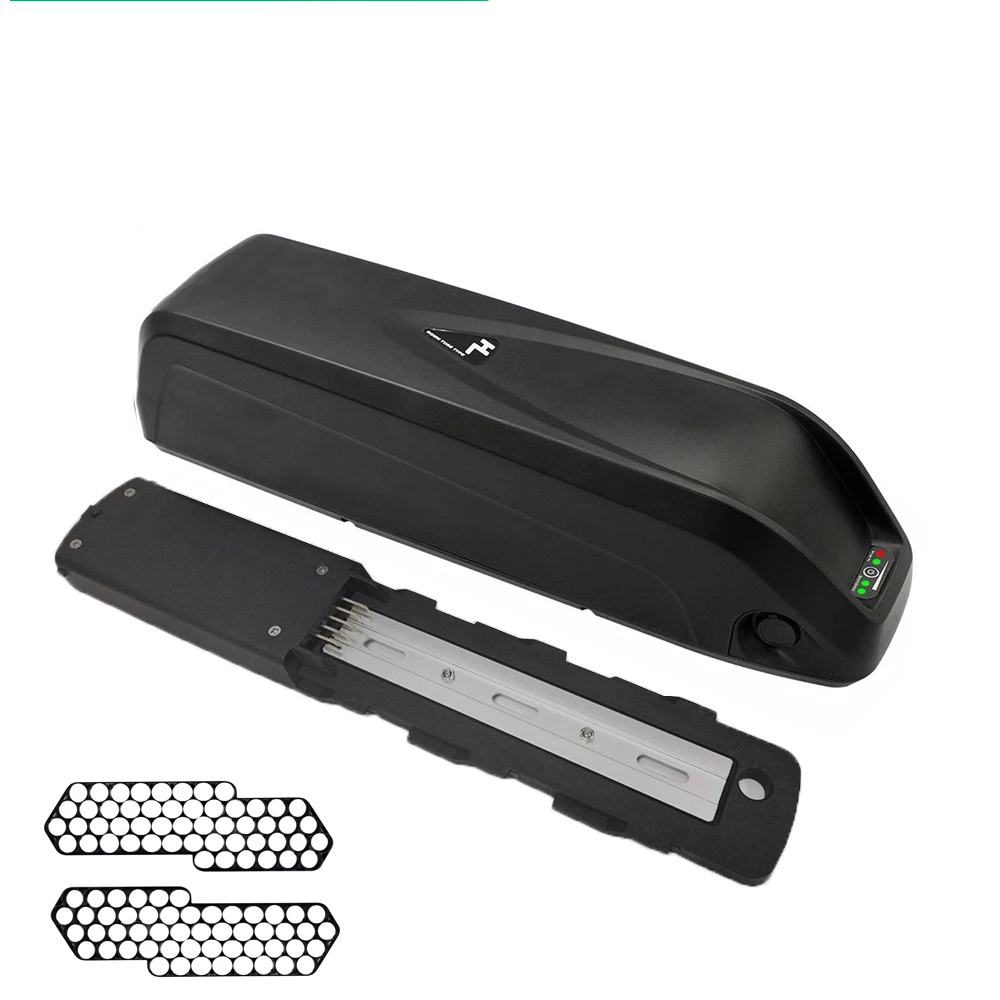

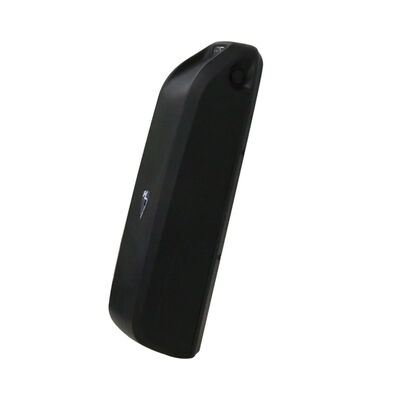

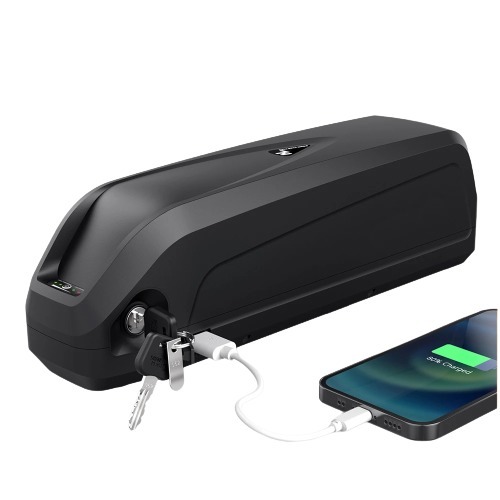

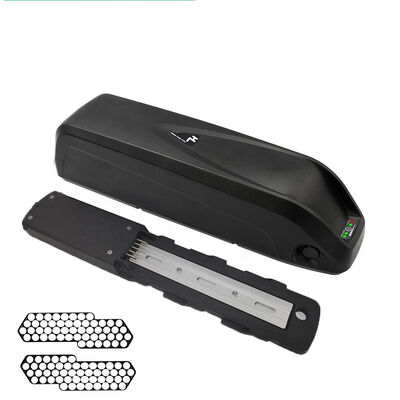

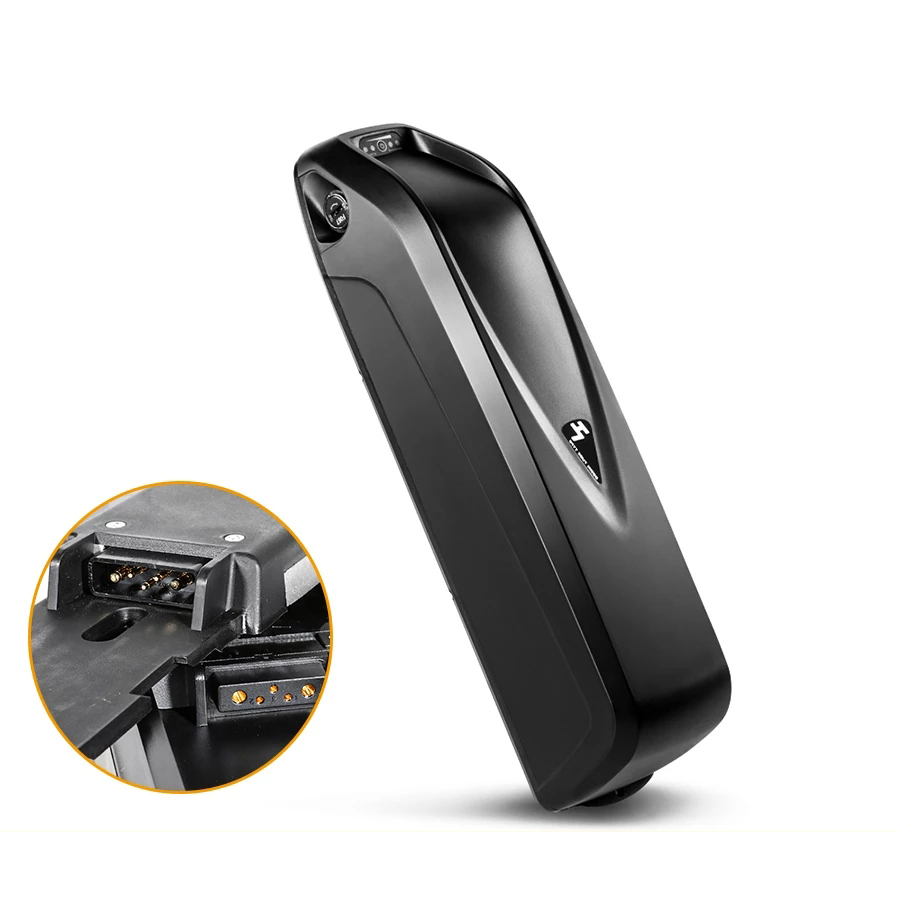

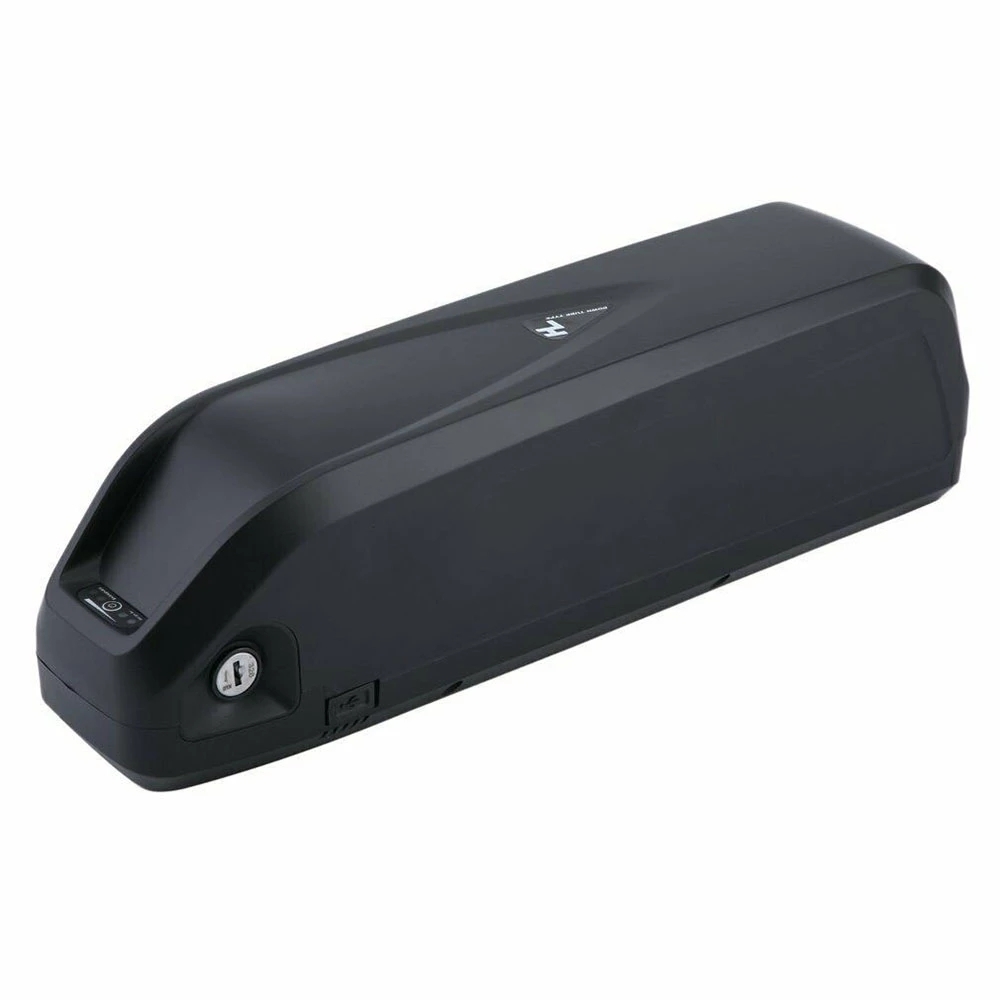

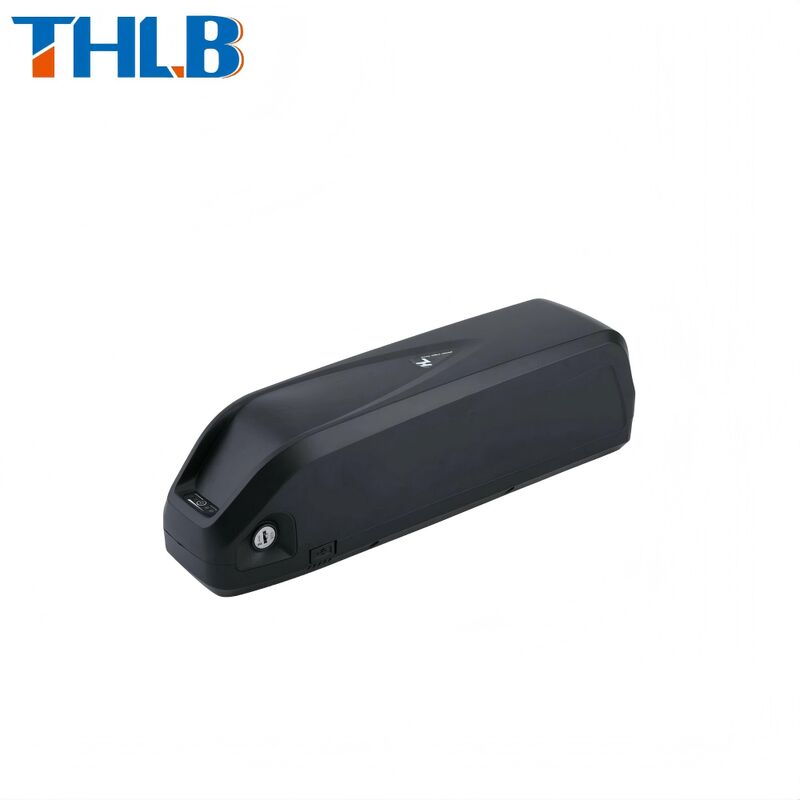

Product Images

Technical Specifications

Parameter	Details
Nominal Voltage	36V
Typical Capacity	10Ah
Array Mode	10S4P
Typical Capacity	10±0.2Ah (At 0.2C discharge rate)
Discharge
Working Current	≤ 10A
Over Current Protection Current	20±3A
Cut-off Voltage	About 35V
Terminal	14AWG, length 300mm
Charge
Voltage	42.0±0.5V
Max Charging Current	≤10A
Charge Mode	CC/CV, please use a special lithium charger
Charging Cut-off Current	About 0.5A
Terminal	DC2.1
Operation Temperature
Charge	0℃～+45℃
Discharge	-20℃～+60℃
Storage Temperature	-20℃～60℃
Discharging Inner Resistance	≤ 150mΩ
Protection Function	Overcharge protection, over discharge protection, temperature protection and short circuit protection
Shell Material	SSE-046/ABS
Weight	2±0.5Kg
Size (LWH)	(368±2)mm (91±2)mm(111±2)mm
Cycle Life	Not less than 500 cycles with capacity retention rate ≥80%

Packaging & Delivery

Manufacturer Profile

Professional manufacturer of rechargeable lithium-ion and LifePO4 batteries located in Shandong, certified with ISO9001:2008 quality system.

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.

Q4: What is your company's advantage?

A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, OEM/ODM services are available.

Q6: What information do you need to make a customized battery pack?

A6: We need: 1. Battery pack size in mm, 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.

Q7: Are your batteries real capacity?

A7: All of our battery cells are Grade A, 100% new with real capacity.

Q8: What kind of certificates do you have?

A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.

Q9: What is your lead time for the mass production?

A9: Generally about 25-30 days depending on different items after receiving down payment and sample confirmation.
