Toys, Power Tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For

Operating Temperature(℃):

-20-60

Product Name:

18650 NCM Li-ion Battery Cell

Key Words:

Lithium Ion Cell

MOQ:

100PCS

Internal Resistance:

15-18mΩ

End Of Charge Voltage:

4.2V

End Of Charge Current:

0.02C

End Of Discharge Voltage:

2.75V

Max. Continuous Discharge Current:

Cycle Life:

Over 1000times, 80% DOD

Discharge Temperature:

-20~60 Degree

Highlight:

NCM 18650 Lithium Ion Battery

Cylindrical Electric Vehicle Battery Cell

2600mAh Electric Vehicle Battery Cell

Product Description

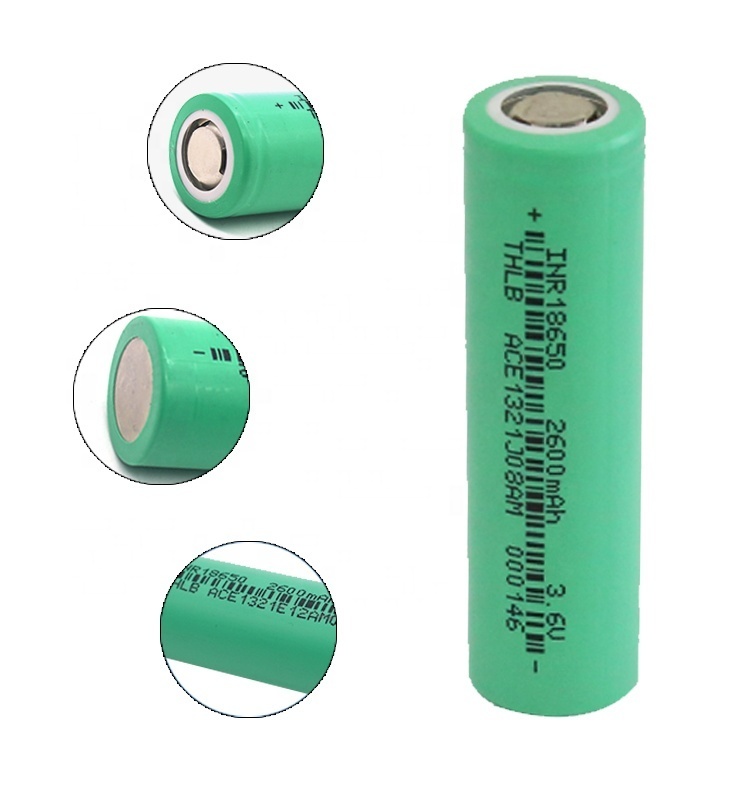

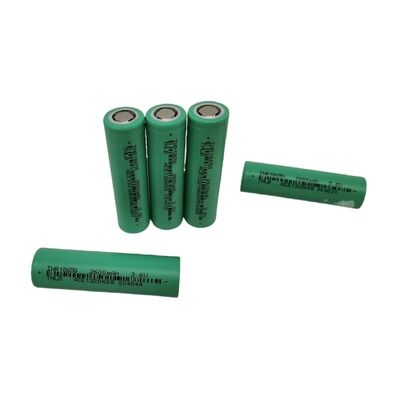

NCM 18650 Lithium Ion Battery 2500mAh 2600mAh Cylindrical Electric Vehicle Battery Cell

High-performance NCM 18650 lithium-ion battery cell designed for electric vehicles, featuring wide operating temperature range (-20°C to 60°C discharge) and excellent capacity options of 2500mAh or 2600mAh.

Product Specifications

No.	Specification	Value
1	Capacity	Nominal: 2600mAh, Minimum: 2550mAh
2	Internal Resistance	15-18mΩ
3	Nominal Voltage	3.6V
4	Charging Voltage	4.2V
5	Standard Charge Conditions	Current: 0.5C, Voltage: 4.2V, Cut-off: 0.02C
6	Max. Charging Current	1C
7	Standard Discharge Conditions	Current: 0.5C, Cut-off Voltage: 2.75V
8	Max. Continuous Discharge Current	3C
9	Working Temperature	Charge: 0°C to +55°C, Discharge: -20°C to +60°C
10	Storage Temperature	-20°C to +60°C
11	Weight	43g
12	Dimension	Diameter: 18.3mm, Height: 65.2mm

Key Advantages

Lower Internal Resistance: Double electrode design ensures very low internal resistance of 15-19mΩ
Advanced Manufacturing: State-of-the-art automatic production line guarantees higher consistency
Superior Matching: Strict matching requirements with variations under 5mV, 3mΩ, and 20mAh
High Performance: Excellent 3C max continuous discharge rate and long cycle life exceeding 2000 cycles at 80% depth of discharge

Electrical Performance Curves

Automated Production Line

Packaging & Delivery

Our Company

Shandong TianHan New Energy Technology Co., Ltd specializes in research & development, manufacturing, sales, and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage solutions.
