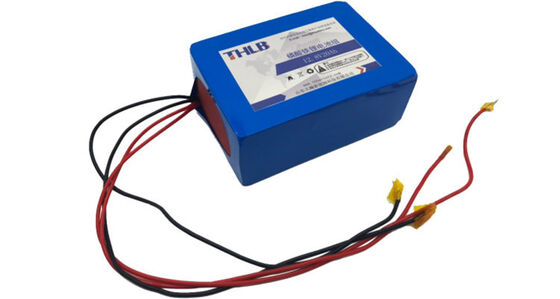

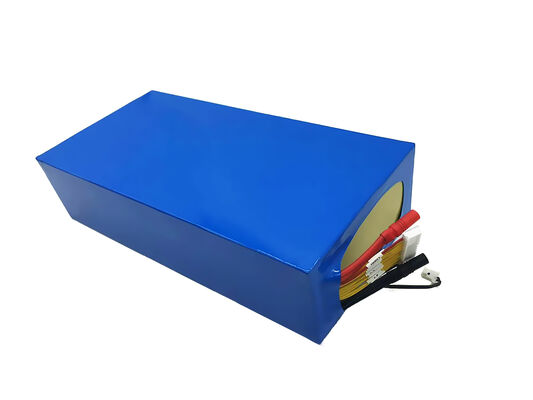

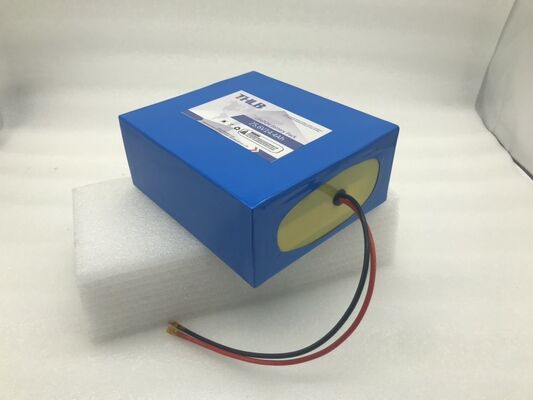

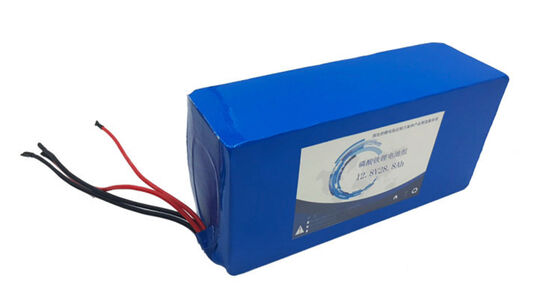

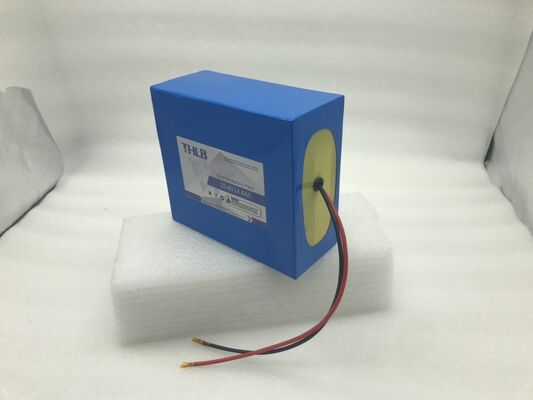

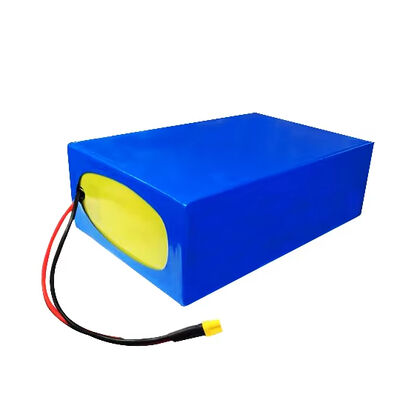

28.8V 24V LiFePO4 Deep Cycle Battery 15Ah 18Ah Electric Scooter Lithium Ion Battery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Power Tools, Consumer Electronics, Boats, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Solar Energy Storage Systems | Weight | 3Kg |
|---|---|---|---|
| Product Name | 24V15Ah LiFePO4 Lithium Battery | Nominal Voltage | 24V |
| Nominal Capacity | 15Ah | Charge Voltage | 28.8V |
| Casing | PVC | Cycle | Over 2000 Times |
| Working Temperature | -20°C~60°C | Battery Weight | 3kg |
| BMS | YES | PVC Color | Blue |
| Anode Material | LFP | Battery Size | 24V15Ah |
| The Charging Ratio | 0.5C/1C | The Discharge Rate | 0.5C/1C/1.5C |
| Storage Type | -20~40 Degree | Electric Energy | 360 Wh |
| Highlight | 24V LiFePO4 Deep Cycle Battery,28.8V LiFePO4 Deep Cycle Battery,18Ah Electric Scooter Lithium Ion Battery |
||
Product Description
28.8V 24V LiFePO4 Deep Cycle Battery - 15Ah 18Ah
High-performance rechargeable lithium iron phosphate battery pack designed for electric scooters and similar applications. Features deep cycle capability and removable design.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Typical Capacity | 14.4Ah |
| Normal Discharge Current | <30A |
| Discharge Cut-off Voltage | 20V |
| Charging Voltage | 28.8V |
| Charging Current | 7.2A |
| Charging Method | CC/CV |
| Cut-off Current | 0.01C |
| Discharging Inner Resistance | <=50mΩ |
| Charge Temperature Range | 0℃~+45℃ |
| Discharge Temperature Range | -20℃~+60℃ |
| Operating Humidity | RH<85% |
| Storage Temperature | 0℃~+40℃ (capacity 80%) Recommended long-term storage: 15-25℃ |
| Storage Humidity | RH<50% |
| Protection Functions | Overcharge protection, over discharge protection, temperature protection, balanced function |
| Battery Case Material | PVC |
| Dimensions | (172±1)mm × (72±1)mm × (152±1)mm |
| Cycle Life | 1500 cycles (capacity retention rate >80%) Standard charge at 0.2C, discharge at 0.2C to cut-off voltage |
Note: When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation. When humidity exceeds 85%, implement appropriate protection measures.
Manufacturer Profile
Shandong TianHan New Energy Technology Co., Ltd specializes in research, development, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage solutions.
Certifications
We maintain all necessary industry certifications and compliance standards.
