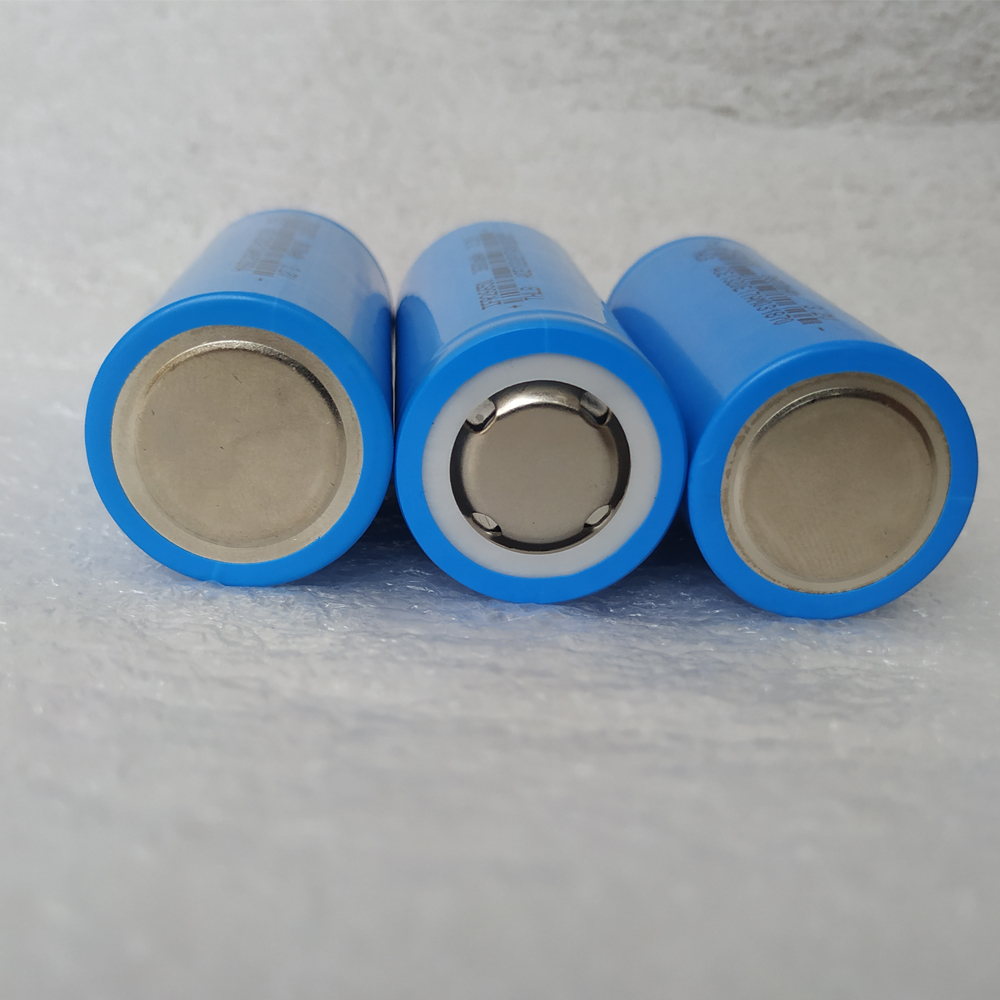

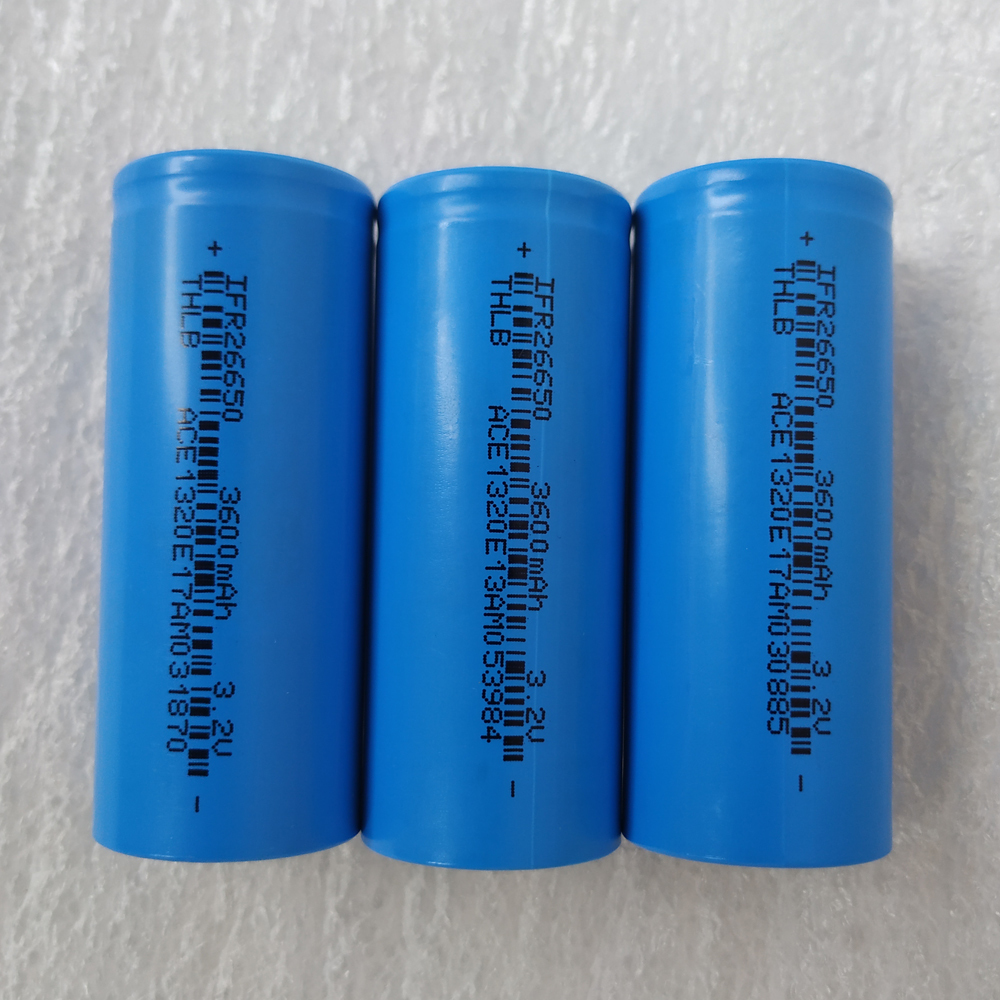

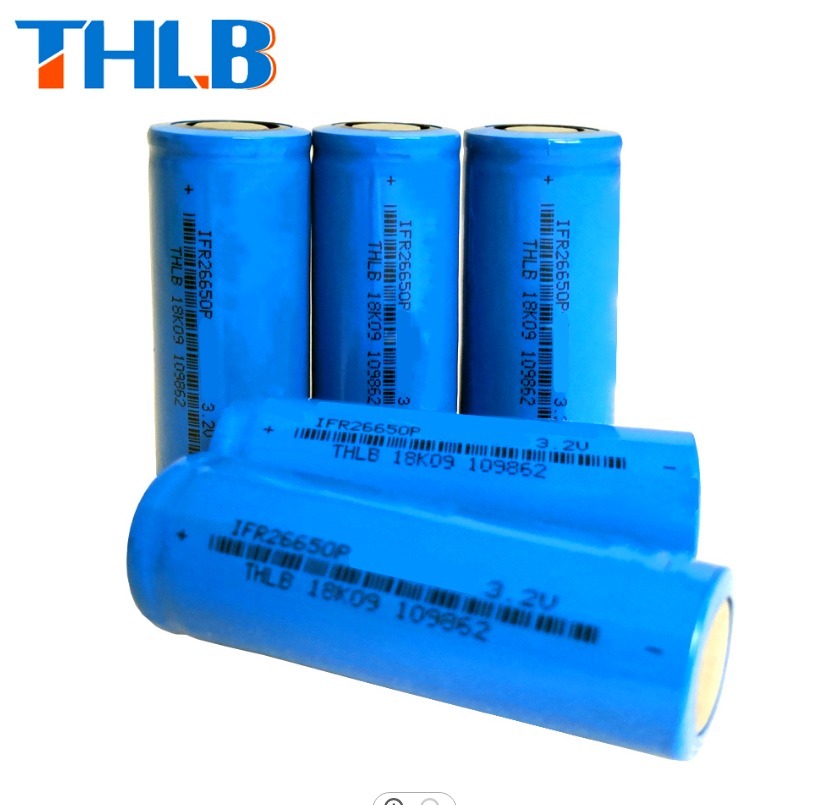

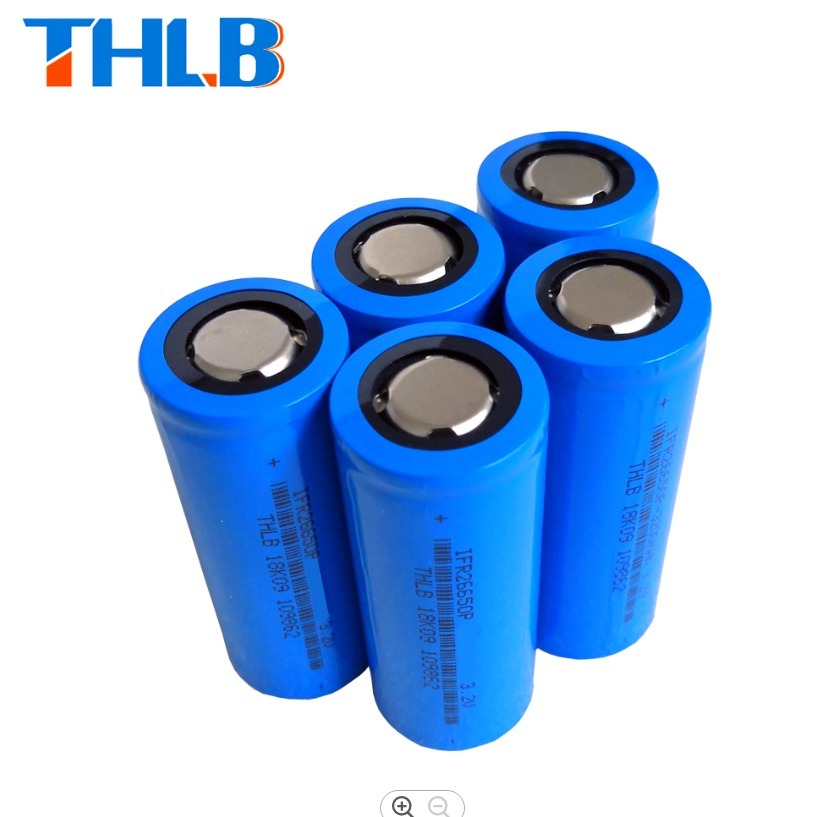

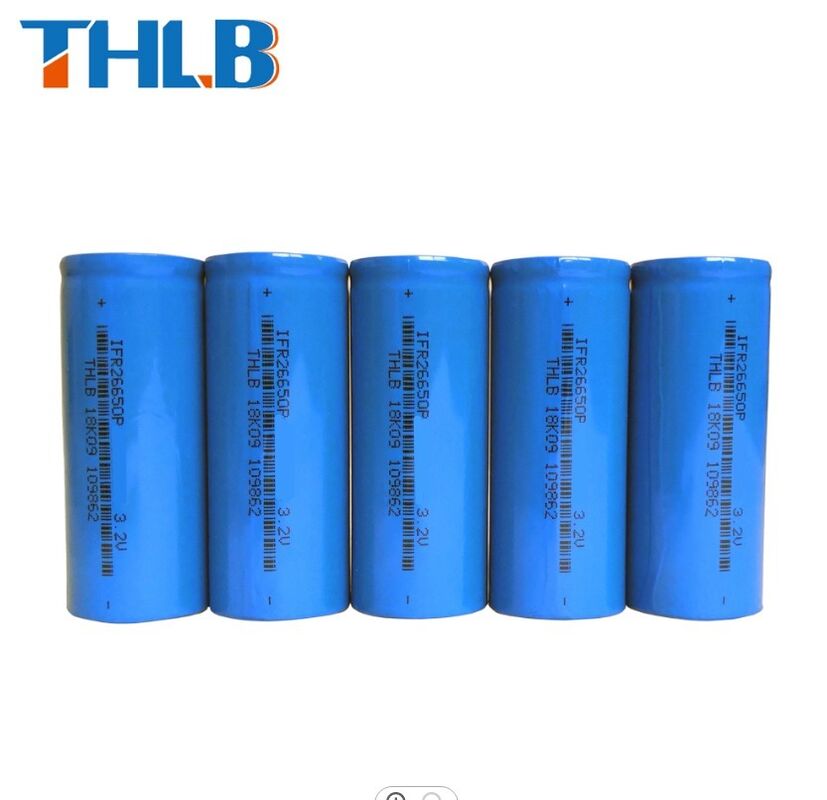

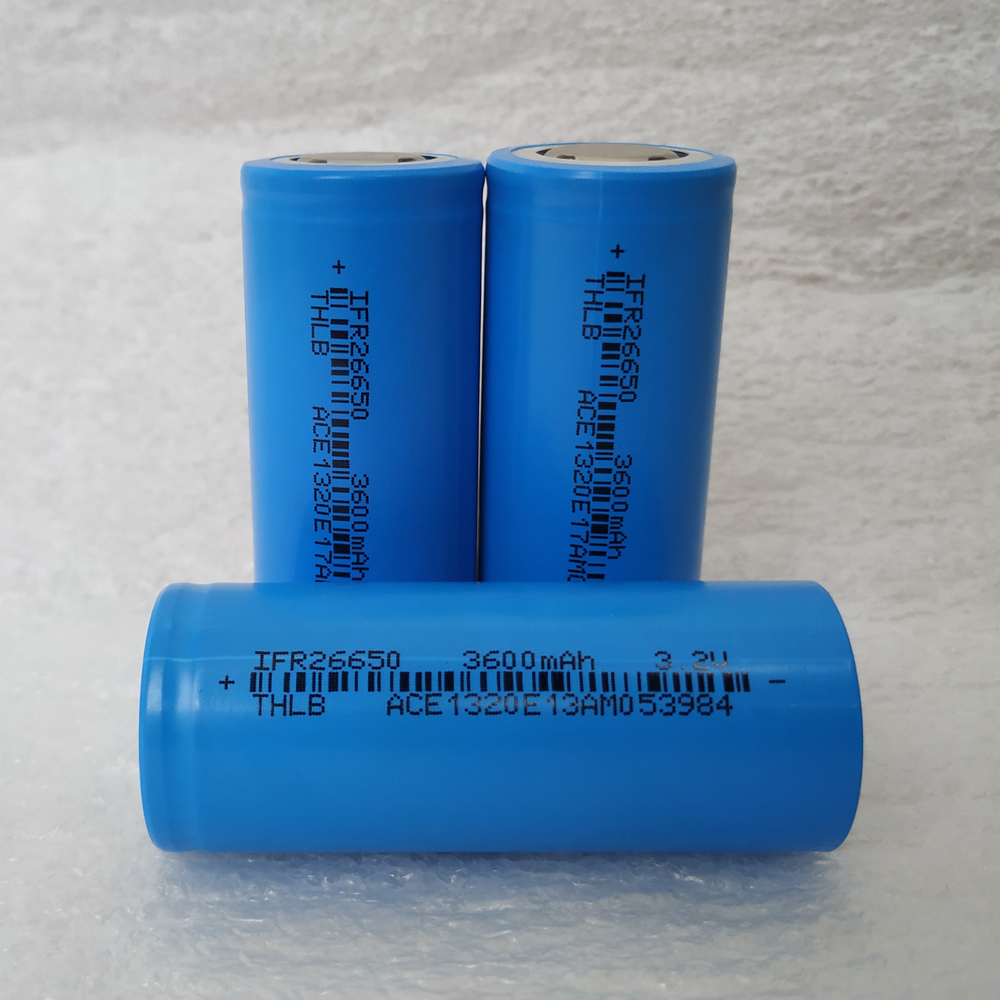

26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 26650-3200mAh-3.2V |
| Minimum Order Quantity | 100 pieces |
| Price | $1.40/pieces 100-499 pieces |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 32 | Cycle Life | 1200 Cycles |
|---|---|---|---|
| Application | Toys, Consumer Electronics, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs | Operating Temperature(℃) | -20-60℃ |
| Cathode Materials | LiFePO4 | Type | LiFePO4 |
| Voltage | 3.2 V | Capacity | 3200 MAh |
| Size | 26650 | Category | Rechargeable Batteries |
| Cycle Characteristic | 2000 Times | Working Temperature | -20°C~60°C |
| Battery Weight | 86g (Approx.) | Color | Blue |
| Highlight | 26650 Cylindrical LiFePO4 Battery,Cylindrical LiFePO4 Battery 3200mAh,1200 Cycles THLB Battery |
||
Product Description
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles
3.2V Lithium Ion 26650 Cylindrical LiFePO4 Battery Cells with 3200mAh capacity, deep cycle capability, 1200 cycles, and operating temperature range of -20°C to 60°C.
Product Specifications
| No. | Item | Standard | Note |
|---|---|---|---|
| 1 | Standard Capacity | 3200mAh | 0.5C, (current value of 3200mA at 1C) |
| 2 | Capacity Range | 3100~3300mAh | 0.5C |
| 3 | Standard Voltage | 3.2V | |
| 4 | Alternating Internal Resistance | ≤30mΩ | |
| 5 | Charge Conditions | Cut-off Voltage: 3.65±0.05V | Constant-current charge to 3.6V at 0.5C, constant voltage charge to stop until 0.01C mA |
| 6 | Max. Charging Current | 3.2A | |
| 7 | Discharge Cut-off Voltage | 2.5V | |
| 8 | Standard Discharge Current | 1.6A | |
| 9 | Fast Discharge Current | 3.2A | |
| 10 | Max. Continuous Discharge Current | 9.6A | |
| 11 | Pulse Discharge Current | 15A 5s | |
| 12 | Cycle Characteristic | 2000 times (100% DOD) 4000 times (80% DOD) 7000 times (50% DOD) |
The residual capacity is no less than 80% of rated capacity at 1C rate |
| 13 | Working Temperature | Charge: 0°C~55°C Discharge: -20°C~60°C |
|
| 14 | Storage Temperature | -20°C ~ 45°C | Short-term storage (< 3 months) |
| 15 | Battery Weight | 86g (Approx.) |
Safety Performance Classification
- Resistance to heavy loads - Battery pack tested according to regulations, no ignition or explosion
- Resistance to thermal shock - Battery pack tested according to regulations, no ignition or explosion
- Anti-overcharge - Battery module tested according to regulations, no ignition or explosion
- Resistance to overdischarge - Battery module tested according to regulations, no ignition or explosion
- Resistance to short circuit - Battery module tested according to regulations, no ignition or explosion
- High temperature storage - Battery tested according to regulations, no leak, smoke, fire or explosion
- Anti-heating - Battery module tested according to regulations, no explosion penetration through screen
- Anti-puncture - Battery pack tested according to regulations, no ignition or explosion
- Anti-extrusion - Battery module tested according to regulations, no ignition or explosion
- Resistance to low pressure - Battery pack tested according to regulations, no leak, smoke, fire or explosion
- Constant damp heat - Battery pack tested according to regulations, no deformation, rust, smoke or explosion
- Anti-vibration - Battery pack tested according to regulations, no damage, leakage, smoke or explosion
- Anti-collision - Battery pack tested according to regulations, no damage, leakage, smoke or explosion
- Temperature cycling - Battery pack tested according to regulations, no leak, smoke, ignition or explosion
- Flame retardant properties - Plastic casing meets GB/T2408-2008 FH-1 and FV-0 requirements
- Insulation resistance - Metal case battery pack insulation resistance not less than 2 MΩ
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
