Weight:

107kg

Battery Type:

LifePO4

Capacity:

200Ah

Nominal Voltage:

51.2V

Charge Voltage:

56-58V

Discharge Cut-off Voltage:

40-44V

Limiting Current:

20A

Discharge Current:

100A

Internal Resistance:

≤60mΩ

Communication:

RS485

Anode Material:

LFP

The Charging Ratio:

DOD100%

The Discharge Rate:

DOD100%

Storage Type:

Room Temperature Storage

Highlight:

200 Amp Hour Lithium Battery

THLB Lithium Battery 51.2 Volt

THLB lithium ion solar battery

Product Description

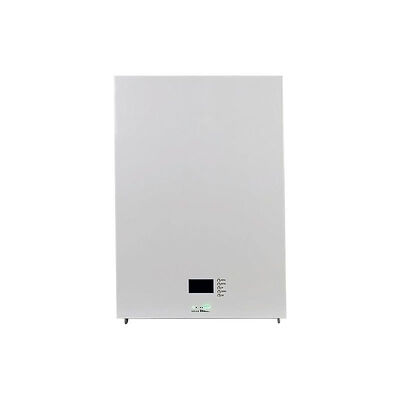

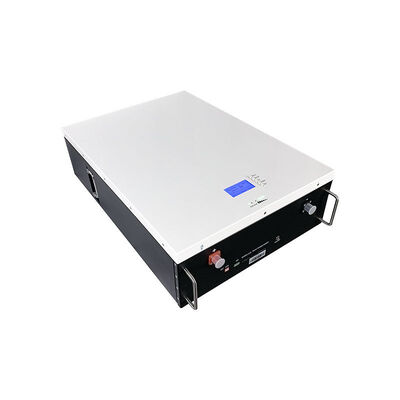

THLB 200 Amp Hour Lithium Battery 51.2 Volt Lithium Ion Solar Battery

Advanced 51.2 volt 200 amp hour lithium ion battery with 10 kilowatt capacity, featuring internal resistance limited to 60 milliohms for optimal solar system performance.

Customization Available: This battery is designed for demonstration purposes. We specialize in producing fully customized battery solutions according to your specific requirements. Share your needs with us, and we'll handle the rest with professional expertise you can trust.

Technical Specifications

Parameter	Specification
Normal Voltage	51.2V
Rated Capacity	200Ah
Energy	Approx 10KWh
Factory Voltage	51V-53V (40-60%)
Voltage at End of Discharge	40-44V
Charging Voltage	56-58V
Internal Impedance	≤60mΩ
Standard Charge	Constant Current 40A, Constant Voltage (see No.5), 0.02CA cut-off, Charge time: Approx 6h
Limiting Current	20A
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	100A
Operation Temperature Range	Charge: 0~45℃, Discharge: -20~55℃
Storage Temperature Range	Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 days: -20~65℃

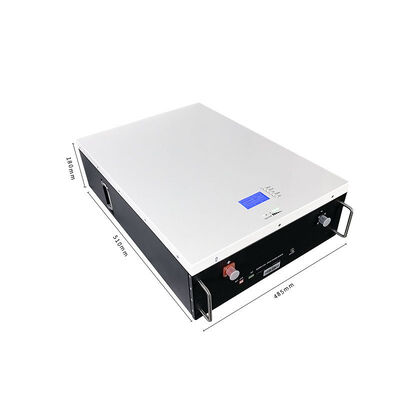

Dimensions	680485180 (220)mm
Weight	Approx 107kg
Communication	RS485

Packaging & Delivery

Company Profile

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong, certified with ISO9001:2008 quality system.

Q2: Can I have samples to test? And what is lead time for sample order?

A2: Yes, we can supply samples with a lead time of 7-10 days. The buyer pays for sample cost and shipping cost.

Q3: Do you provide after-sales service?

A3: Yes, we offer a 3-year warranty. If any quality problems occur on our side during this period, we will send a new unit as replacement.

Q4: What is your company's advantage?

A4: We supply only high-quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.

Q5: Do you accept OEM/ODM?

A5: Yes, OEM/ODM services are available.

Q6: What information do you need to make a customized battery pack?

A6: We require: 1. Battery pack dimensions in mm, 2. Capacity, 3. Voltage, 4. Maximum discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.

Q7: Are your batteries real capacity?

A7: All our battery cells are Grade A, 100% new with real capacity.

Q8: What kind of certificates do you have?

A8: We provide CE, ROHS, FCC, IEC62133, MSDS, and UN38.3 certifications.

Q9: What is your lead time for mass production?

A9: Typically 25-30 days depending on the item, after receiving down payment and sample confirmation.
