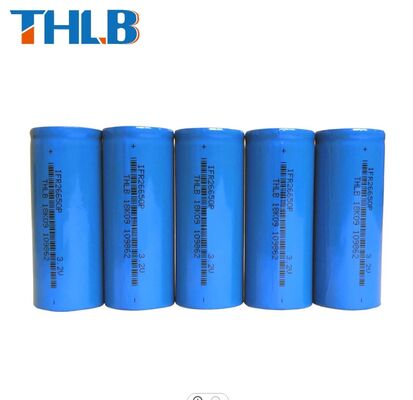

Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery

  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
  • Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery
Place of Origin China
Brand Name THLB
Model Number 26650-3200mAh-3.2V
Minimum Order Quantity 100 pieces
Price $1.40/pieces 100-499 pieces
Packaging Details Standard Packaging
Delivery Time 7-15 Working Days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Load Quantity(cells) 32 Cycle Life 1200 Cycles
Application Toys, Consumer Electronics, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs Operating Temperature(℃) -20-60℃
Cathode Materials LiFePO4 Type LiFePO4
Voltage 3.2 V Capacity 3200 MAh
Size 26650 Category Rechargeable Batteries
Cycle Characteristic 2000 Times Working Temperature -20°C~60°C
Battery Weight 86g (Approx.) Color Blue
Highlight

Lithium Ion Deep Cycle Battery

,

Deep Cycle Battery Cells 3200MAh

,

3.2 Volt 26650 Rechargeable Battery
Leave a Message
Product Description
Lithium Ion Deep Cycle Battery Cells 3200mAh 3.2V 26650
3200mAh capacity rechargeable lithium ion deep cycle battery cells with 3.2V nominal voltage and 26650 form factor. Operating temperature range: -20°C to 60°C.
Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 0 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 1 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 2
Technical Specifications
No. Item Standard Note
1 Standard Capacity 3200mAh 0.5C (current value of 3200mA at 1C)
2 Capacity Range 3100~3300mAh 0.5C
3 Standard Voltage 3.2V
4 Alternating Internal Resistance ≤30mΩ
5 Charge Conditions Cut-off Voltage: 3.65±0.05V Constant-current charge to 3.6V at 0.5C, constant voltage charge to stop until 0.01C mA
6 Max. Charging Current 3.2A
7 Discharge Cut-off Voltage 2.5V
8 Standard Discharge Current 1.6A
9 Fast Discharge Current 3.2A
10 Max. Continuous Discharge Current 9.6A
11 Pulse Discharge Current 15A 5s
12 Cycle Characteristic 2000 times (100% DOD)
4000 times (80% DOD)
7000 times (50% DOD)		 Residual capacity no less than 80% of rated capacity at 1C rate
13 Working Temperature Charge: 0°C~55°C
Discharge: -20°C~60°C
14 Storage Temperature -20°C ~ 45°C Short-term storage (< 3 months)
15 Battery Weight 86g (Approx.)
Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 3 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 4
Safety Performance Classification
  • Resistance to heavy loads - tested according to regulations, no ignition or explosion
  • Resistance to thermal shock - tested according to regulations, no ignition or explosion
  • Anti-overcharge - battery module tested according to regulations, no ignition or explosion
  • Resistance to overdischarge - battery module tested according to regulations, no ignition or explosion
  • Resistance to short circuit - battery module tested according to regulations, no ignition or explosion
  • High temperature storage - tested according to regulations, no leakage, smoke, fire or explosion
  • Anti-heating - battery module tested according to regulations, no explosion penetration
  • Anti-puncture - battery pack tested according to regulations, no ignition or explosion
  • Anti-extrusion - battery module tested according to regulations, no ignition or explosion
  • Resistance to low pressure - battery pack tested according to regulations, no leakage, smoke, fire or explosion
  • Constant damp heat - tested according to regulations, no deformation, rust, smoke or explosion
  • Anti-vibration - battery pack tested according to regulations, no damage, leakage, smoke or explosion
  • Anti-collision - battery pack tested according to regulations, no damage, leakage, smoke or explosion
  • Temperature cycling - tested according to regulations, no leakage, smoke, ignition or explosion
  • Flame retardant properties - plastic casing meets GB/T2408-2008 standards
  • Insulation resistance - metal case insulation resistance not less than 2 MΩ
Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 5 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 6 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 7 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 8 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 9 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 10 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 11 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 12
Our Company
Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 13 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 14 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 15 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 16
Packing & Delivery
Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 17 Lithium Ion Deep Cycle Battery Cells 3200MAh 3.2 Volt 26650 Rechargeable Battery 18
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples need 3-5 days. Mass production time is approximately 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ = 100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days. Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Please confirm the cell models that you are interested in. We send cell specifications and best quotation to you for reference. You confirm the quotation and inform quantity or issue PO, we will send PI accordingly. After deposit or full payment confirmed, production started.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
