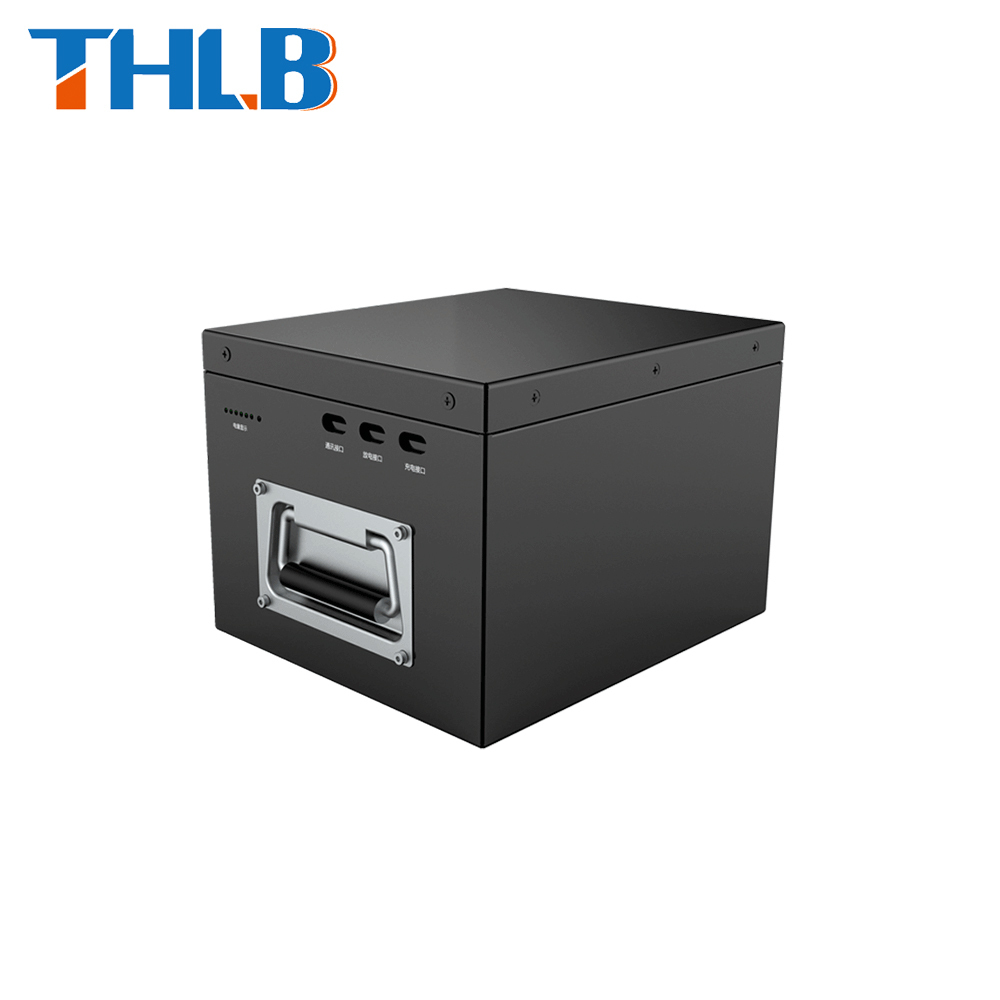

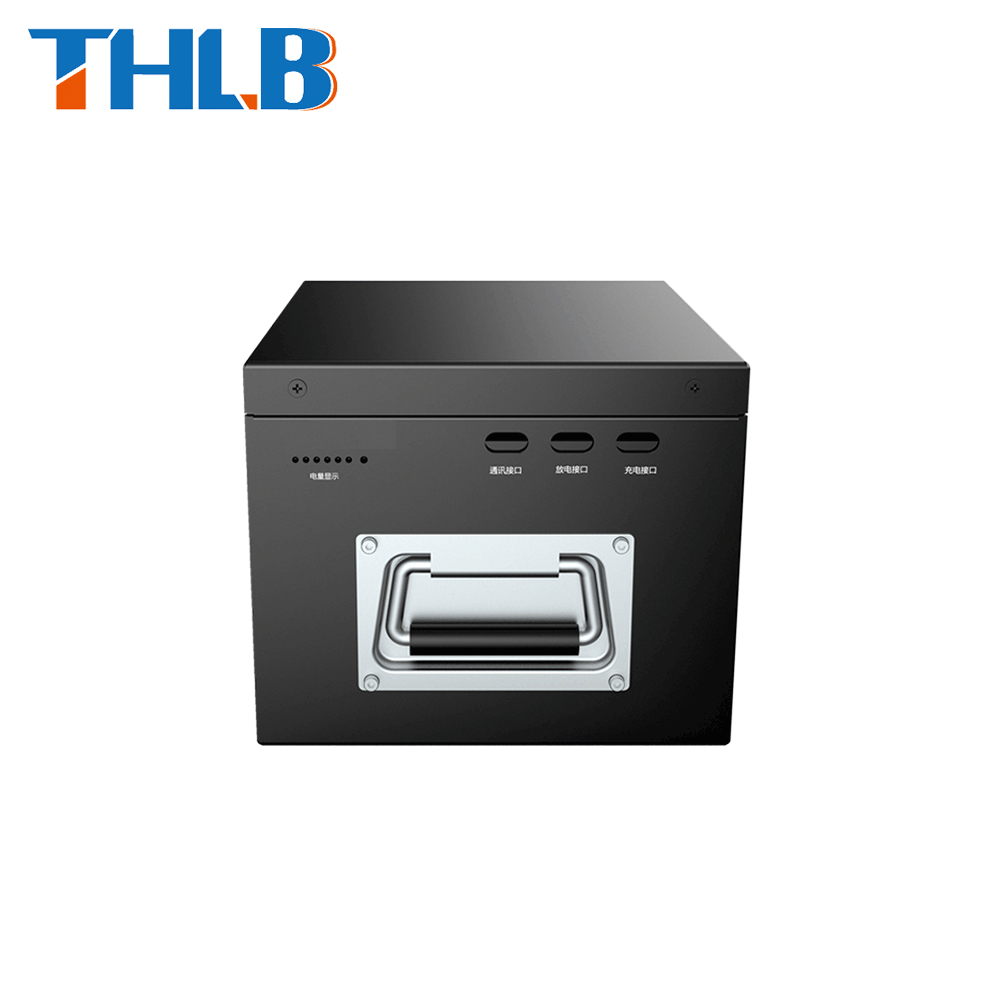

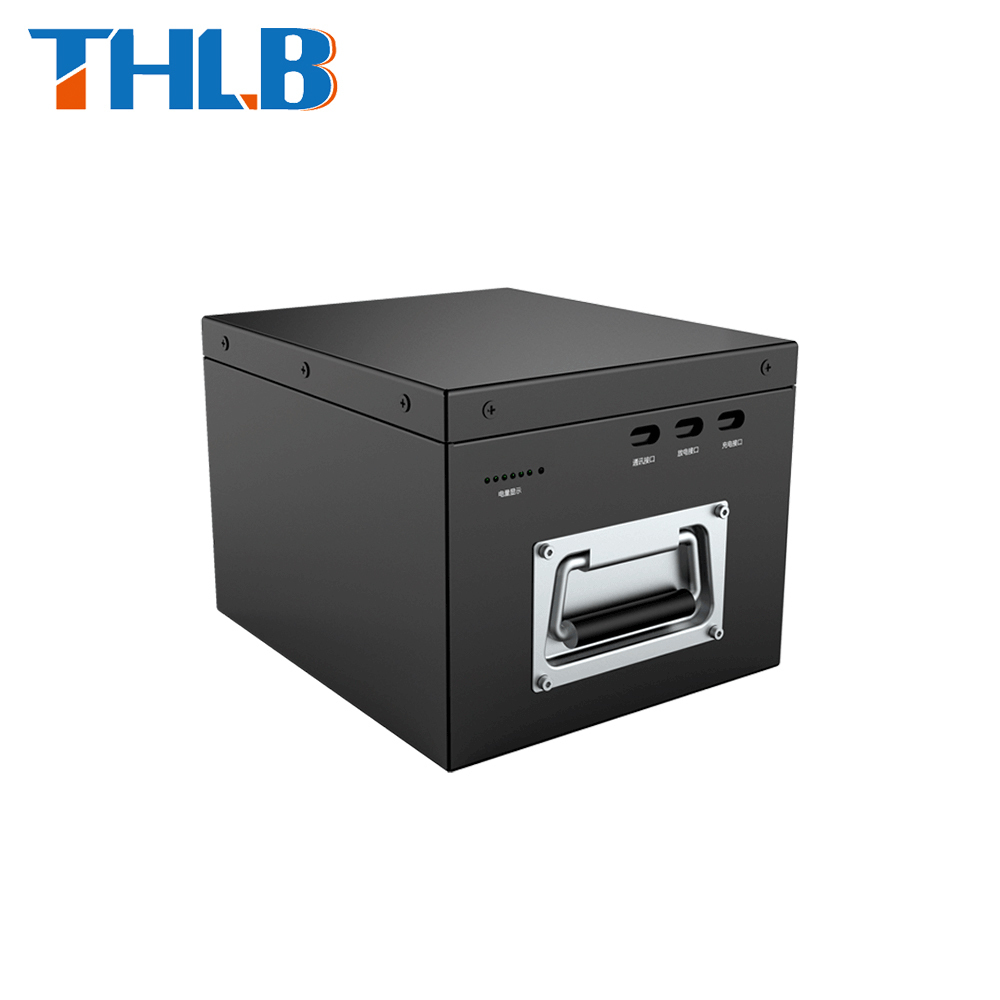

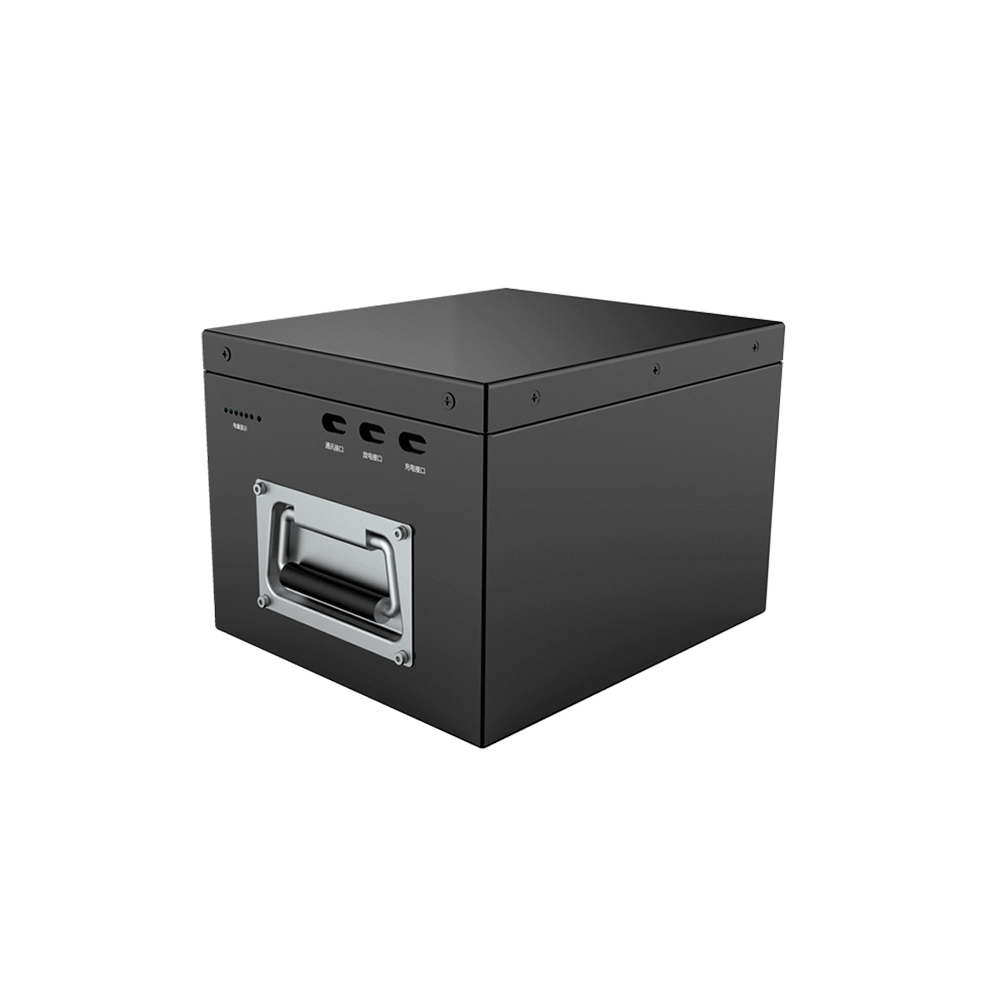

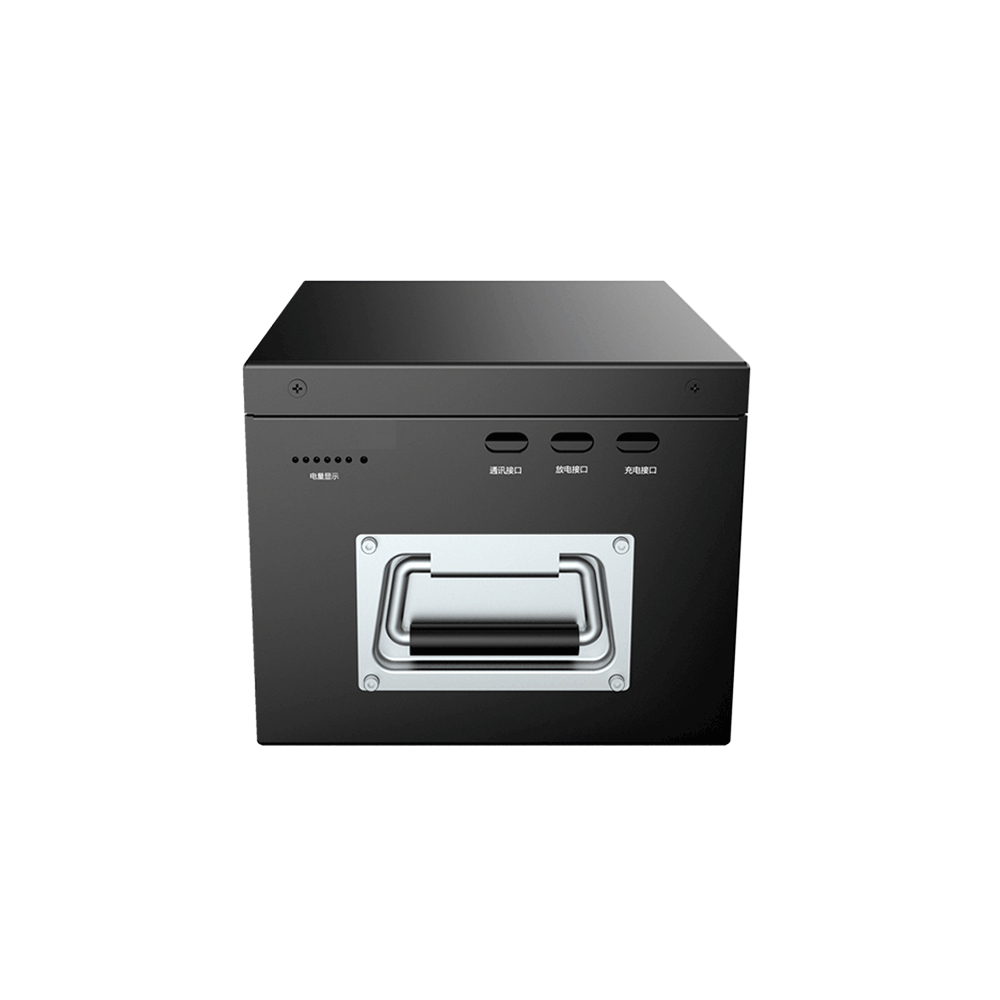

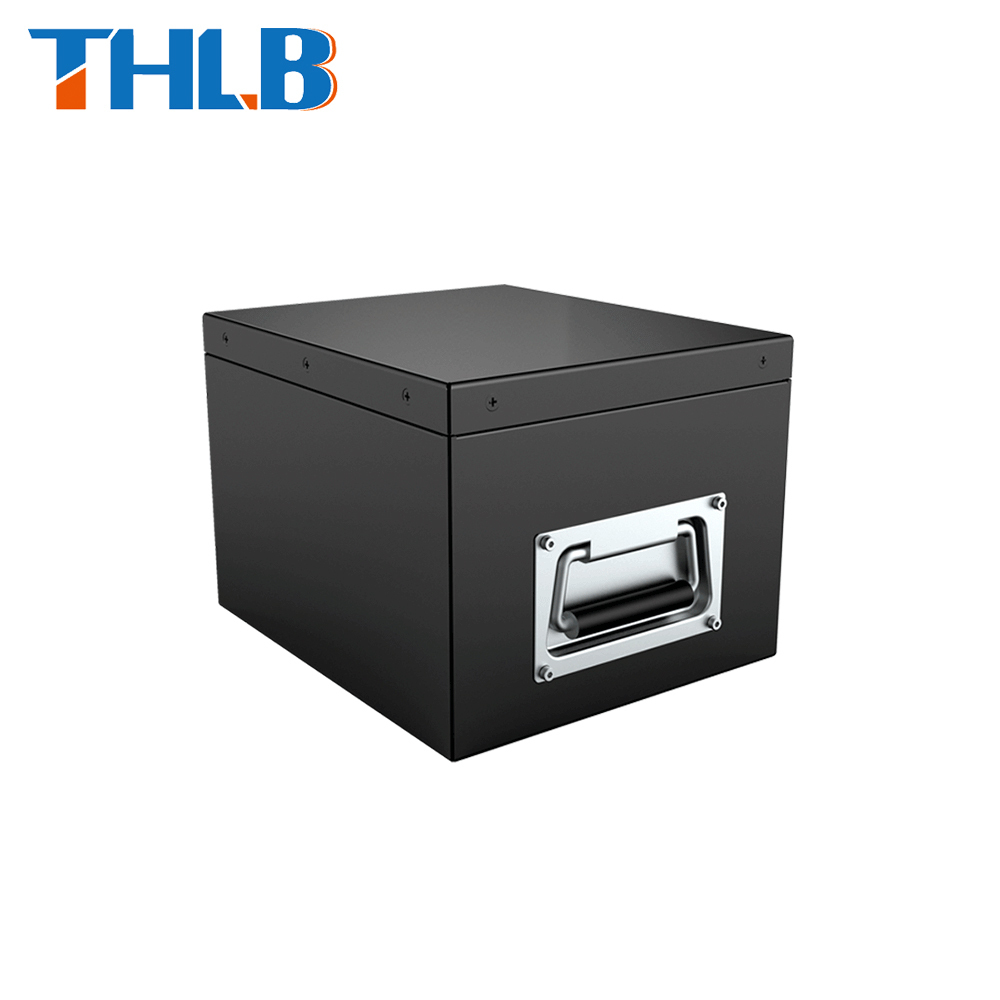

THLB Deep Cycle Solar Battery 12v 24v 100ah 200ah 600ah Lifepo4 Battery Pack

Brand Name:	THLB
Model Number:	24V20Ah LiFePO4 Battery
MOQ:	10 pieces
Price:	$98/pieces 10-49 pieces
Packaging Details:	Standard Packaging

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Consumer Electronics, Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs

Battery Size:

24v 20ah

Weight:

2.9KG

Type:

LIFEPO4

Voltage:

24V

Capacity:

20Ah

Category:

Rechargeable Batteries Pack

Cell Configuration:

LiFePO4 26650 3.2V 3200mAh-8S7P

Cycle Characteristic:

2000 Times

Working Temperature:

-20°C~60°C

Battery Weight:

2.9±0.2 Kg

Reference Battery Size:

(168±1)*(128±1)*(102±1) Mm

Warranty:

3 Months ~ 1 Year

Highlight:

THLB Deep Cycle Solar Battery

Deep Cycle Solar Battery 12v

THLB 600ah Lifepo4 Battery Pack

Product Description

THLB Deep Cycle Solar Battery 12V 24V 100Ah 200Ah 600Ah LiFePO4 Battery Pack

2000+ cycle rechargeable deep cycle solar energy storage lithium iron phosphate battery pack designed for reliable power in solar applications.

Main Kit Components

1 x 24V20Ah LiFePO4 Battery Module	1 x 4S-20A PCM
1 x Plastic Battery Case	2 x M8 Terminals

Product Specifications

Normal Voltage	24V
Normal Capacity	20Ah
Battery Energy	480Wh
Inner Resistance	< 60mΩ
Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration	LiFePO4 26650 3.2V 3200mAh-8S7P
Reference Battery Size	(168±1)(128±1)(102±1) mm
Reference Battery Weight	2.9±0.2 kg
Battery Encapsulation	Plastic Case
Charge Voltage	28.8V
Charge Mode	CC/CV
Normal Charge Current	<=50A
Normal Discharge Current	10A
Max. Continuous Output Current	20A
Max. Continuous Output Power	480W
Passive Protection Function	Over charge protection; Over discharge protection; Over current protection, etc
Operation Temperature Range	Charge: 0°C---45°C Discharge: -20°C---60°C
Battery Storage Temperature	-20°C---25°C
Individual Cell Approval	CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

Safety Performance Classification

Resistance to heavy loads - tested to not ignite or explode
Resistance to thermal shock - tested to not ignite or explode
Anti-overcharge - tested to not ignite or explode
Resistance to overdischarge - tested to not ignite or explode
Resistance to short circuit - tested to not ignite or explode
High temperature storage - tested to not leak, smoke, catch fire or explode
Anti-heating - tested with no explosion battery penetration
Anti-puncture - tested to not ignite or explode
Anti-extrusion - tested to not ignite or explode
Resistance to low pressure - tested to not leak, smoke, catch fire or explode
Constant damp heat - maintains capacity and appearance integrity
Anti-vibration - maintains functionality and appearance
Anti-collision - maintains functionality and appearance
Temperature cycling - maintains capacity and structural integrity
Flame retardant properties - meets GB/T2408-2008 standards
Insulation resistance - meets safety requirements for metal cases

Our Company

Packing & Delivery

Frequently Asked Questions

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
