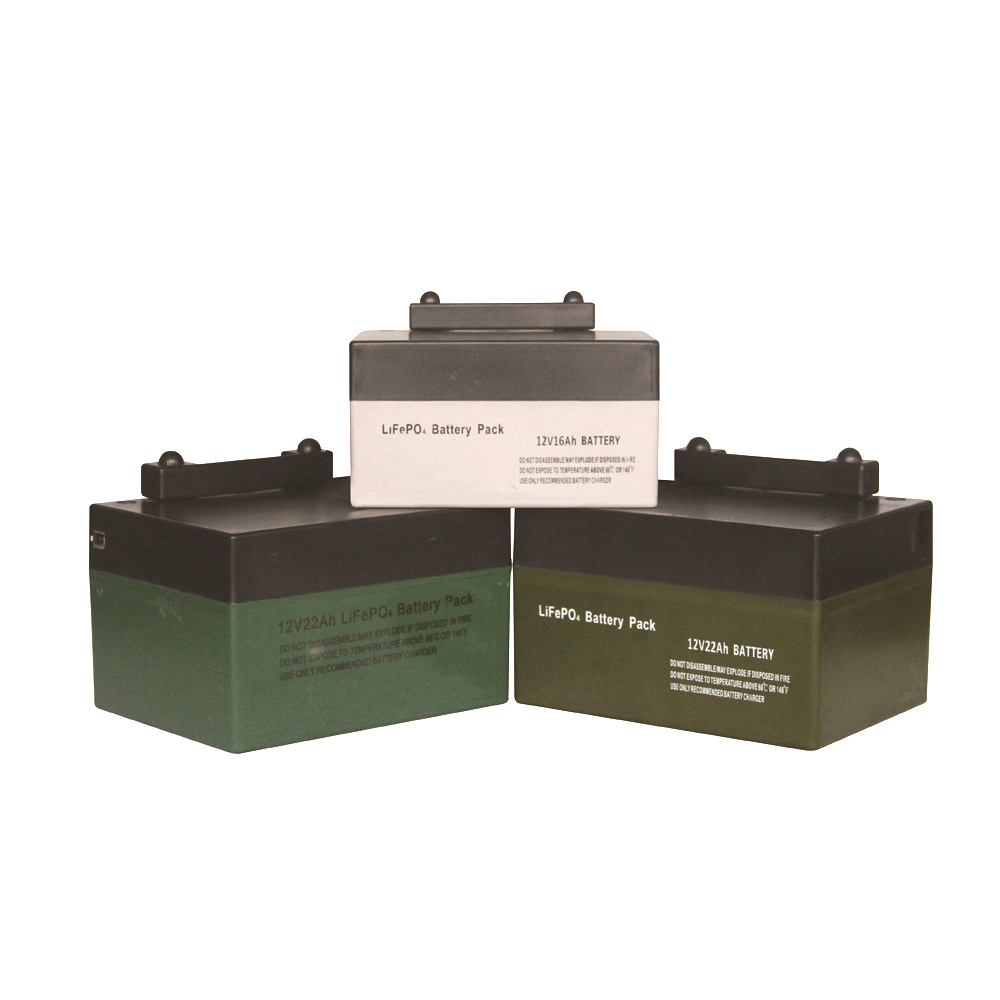

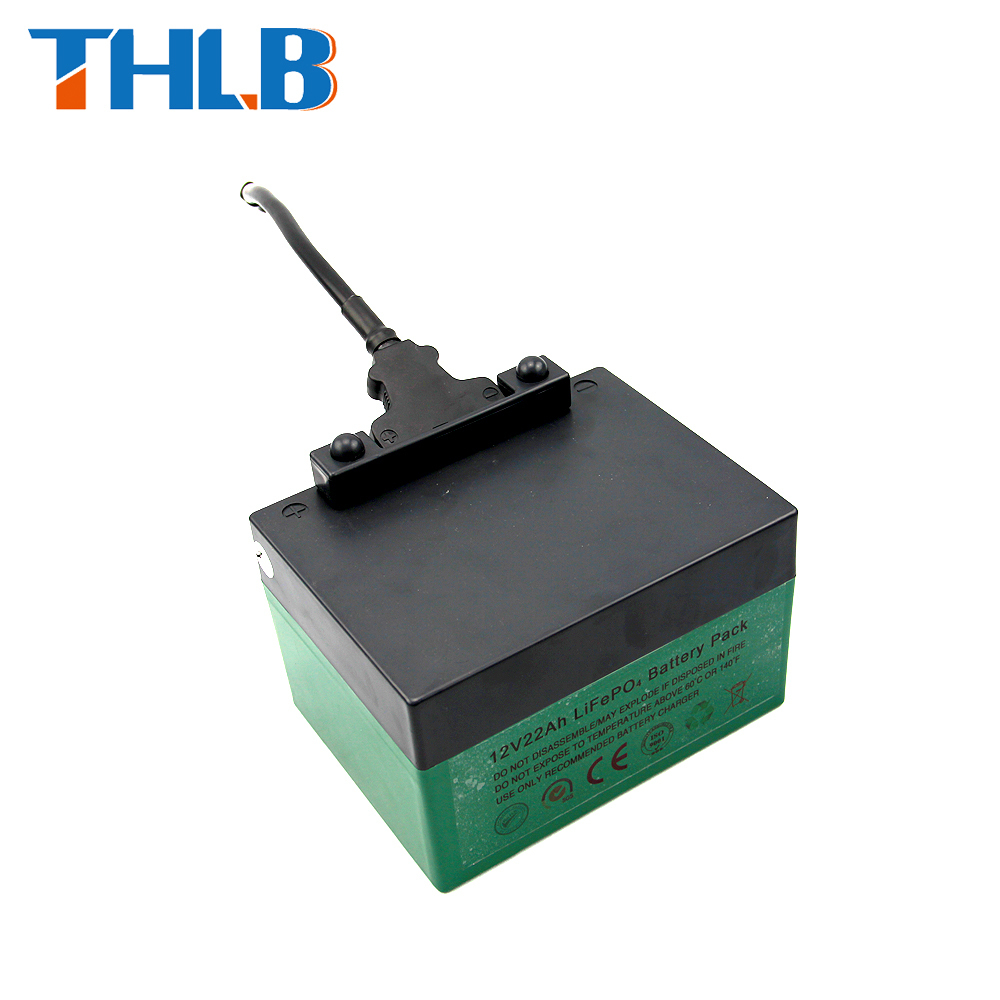

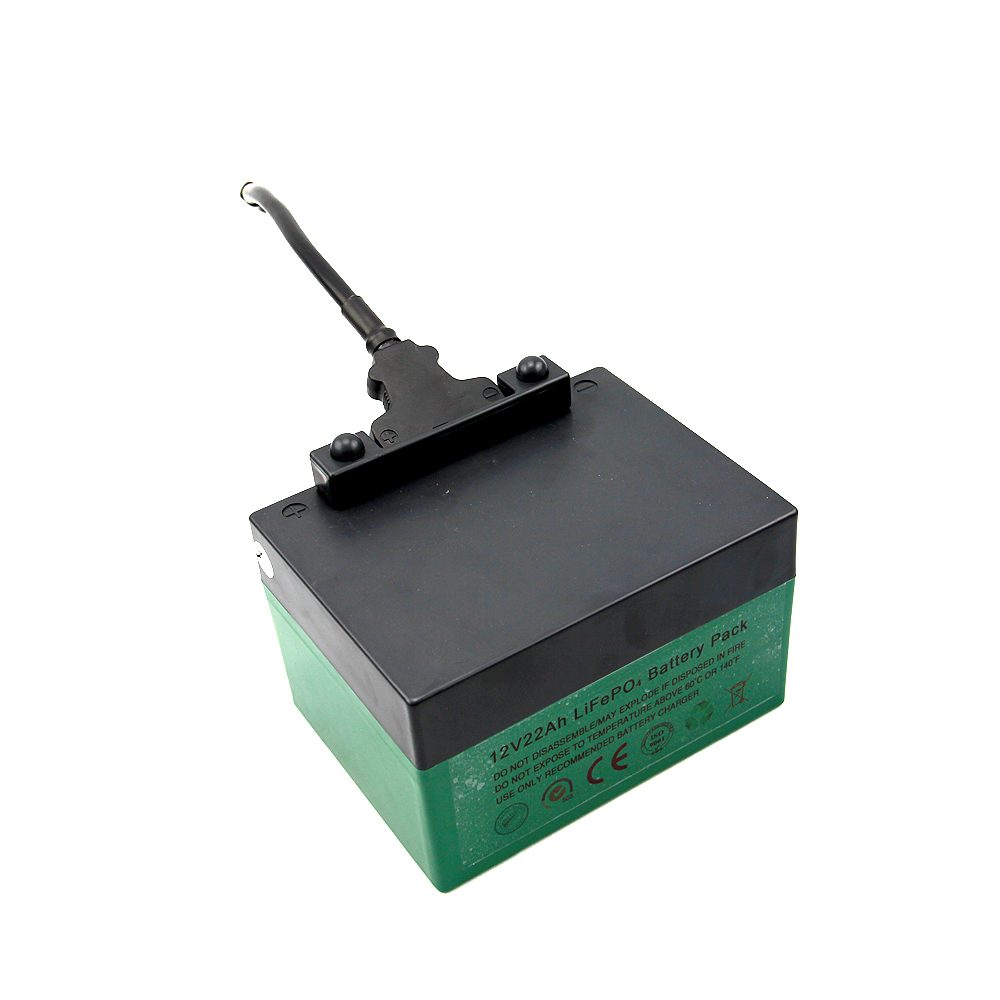

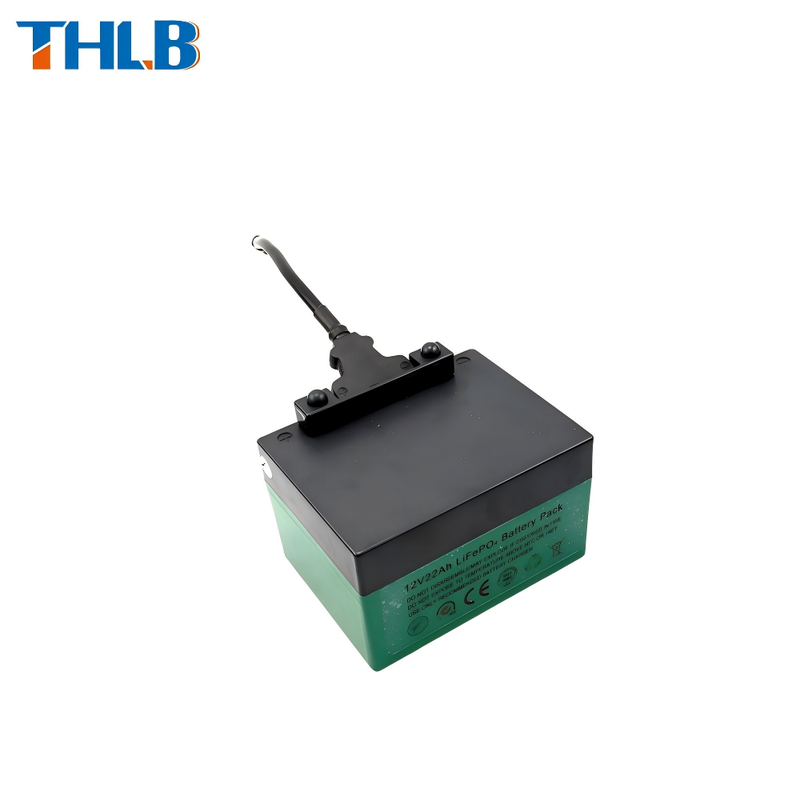

20A Golf Cart Lithium Batteries 6000 Cycles 12.8V 22Ah THLB Battery
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V 22Ah |
| Minimum Order Quantity | 10 units |
| Price | $85/units 10-999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Energy Density,Long Cycle Life Etc | Battery Size | 26650 |
|---|---|---|---|
| Cycle Life | 6000 Cycles | Cathode Materials | LiFePO4 |
| Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Electric Bicycles,UPS,power Tools,aerospace | Weight | 10.5Kg |
| Operating Temperature(℃) | -20-60 | Capacity | 12.8V 22Ah |
| Charge Voltage | 14.4±0.1V | Charge Current | 20A |
| Cycle Life | ≥6000times 0.5C(80%DOD) | Internal Resistance | ≤40mΩ |
| Battery Cell | LiFePO4 | Warranty | 3 Years |
| Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S6P | ||
| Highlight | 20A Golf Cart Lithium Batteries,6000 Cycles THLB Battery,12.8V 22Ah THLB Battery |
||
Product Description
20A Golf Cart Lithium Batteries 6000 Cycles 12.8V 22Ah THLB Battery
High-performance 20A deep cycle lithium LiFePO4 golf trolley batteries with 12.8V 22Ah capacity, compatible with various power tools and golf cart applications.
Product Specifications
| Main Kit Includes | 1 x 12V22Ah LiFePO4 Battery Module 1 x 4S-25A PCM 1 x Plastic Battery Case |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 22Ah |
| Battery Energy | 768Wh |
| Inner Resistance | < 40mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S6P |
| Reference Battery Size | (260±1)*(168±1)*(212±1) mm |
| Reference Battery Weight | 2.5±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=20A |
| Normal Discharge Current | 20A |
| Max. Continuous Output Current | 20A |
| Max. Continuous Output Power | 288W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc |
| Operation Temperature Range | Charge: 0°C - 45°C Discharge: -20°C - 60°C |
| Battery Storage Temperature | -20°C - 25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Additional Product Models
Explore our complete range of energy power battery solutions:
Packing & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send new ones as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality lithium batteries and we guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: Size of the battery pack in mm, Capacity of the battery pack, Voltage of the battery pack, Max discharge current, Cable and connector types needed, Casing and terminals if required, Any protection circuits you may need.
Q7: Are your battery real capacity?
A7: All of our battery cells are Grade A, 100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, RoHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
