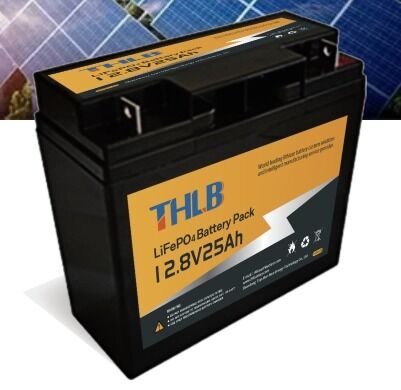

25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
| Place of Origin | China |
|---|---|
| Brand Name | THLB |
| Model Number | 12.8V20Ah |
| Minimum Order Quantity | 300 units |
| Price | $80/units 300-2999 units |
| Packaging Details | Standard Packaging |
| Delivery Time | 7-15 Working Days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 26650 | Cycle Life | 2000 Cycles |
|---|---|---|---|
| Cathode Materials | LiFePO4 | Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts |
| Weight | 2.70kg | Operating Temperature(℃) | -20-60 |
| Warranty | 1years | Capacity | 20Ah |
| Voltage | 12.8v | Type | LFP |
| Apllication | Golf Trolley | OEM/ODM | Accepatable |
| Discharge Rate | 1c | ||
| Highlight | 25Ah Forklift Lithium Battery,Forklift Lithium Battery 2000 Cycles,LiFePO4 Forklift Battery Lithium Ion |
||
Product Description
25Ah Forklift Lithium Battery - 2000 Cycles LiFePO4 Power Solution
High-performance Grade A 12.8V 20Ah/22Ah/25Ah cylindrical LFP lithium ion battery designed for electric forklifts and golf trolleys, featuring exceptional cycle life and reliability.
Product Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah (25℃) |
| Energy | 256Wh |
| Internal Resistance | ≤50mΩ |
| Cycle Life | >2000 cycles @1C 100%DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96-99% @1C |
Standard Charge
| Parameter | Specification |
|---|---|
| Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current |
| Charger Current | 20A |
| Max. Charge Current | 30A |
| Charge Cut-off Voltage | 15.6V±0.2V |
Standard Discharge
| Parameter | Specification |
|---|---|
| Continuous Current | 30A |
| Max. Pulse Current | 60A (<3s) |
| Discharge Cut-off Voltage | 8V |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Charge Temperature | 0℃ to 45℃ (32F to 113F) @60+25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60+25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32F to 104F) @60+25% Relative Humidity |
| Water Dust Resistance | IP56 |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Cell & Method | 26650 4S6P |
| Plastic Case | ABS |
| Dimensions | 181*77*167mm (7.13"*3.03"*6.57") |
| Weight | 2.70kg (5.958lbs) |
| Terminal | T3 |
| Protocol (optional) | SMBUS/RS485/RS232 |
| SOC (optional) | LED |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below:
- Size of the battery pack you need in mm
- Capacity of the Battery pack
- Voltage of the battery pack
- Max discharge current
- Cable and connector types you need
- Casing and Terminals if required
- Any protection circuits you may need
Q7: Are your batteries real capacity?
A7: All of our battery cells with Grade A, 100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
