408Wh 24V 20Ah Lithium Ion Battery THLB Electric Scooter Lithium Battery
  • Name
  • Name
  • Name

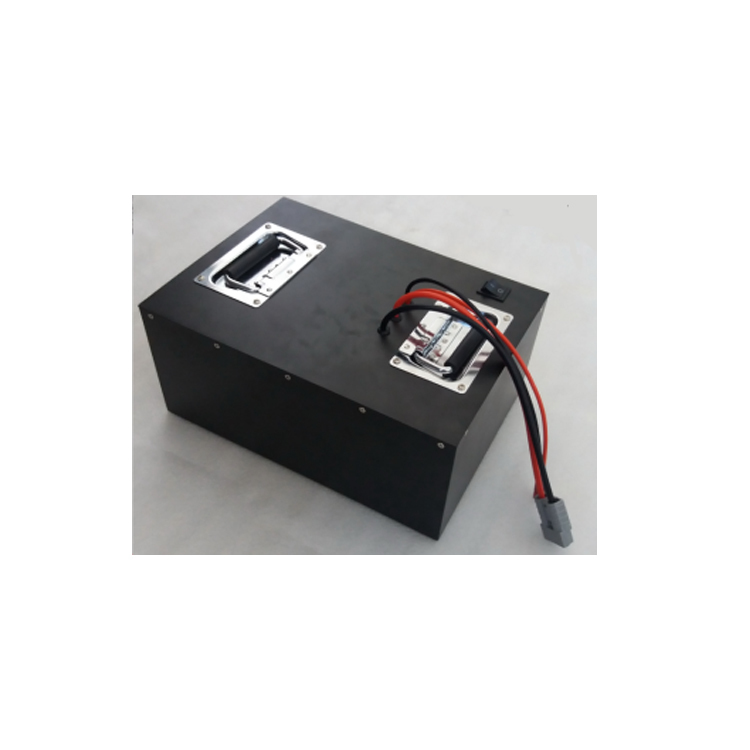

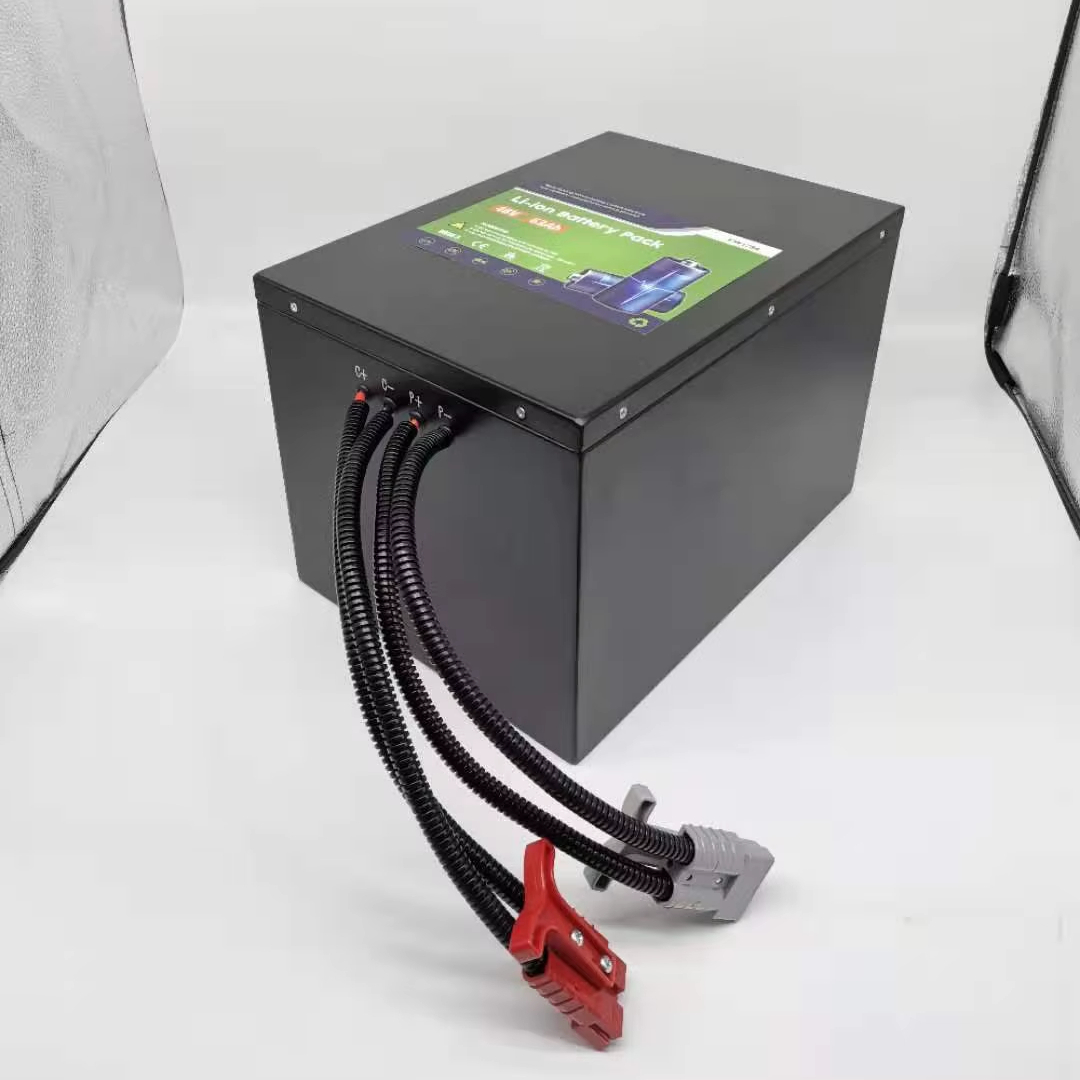

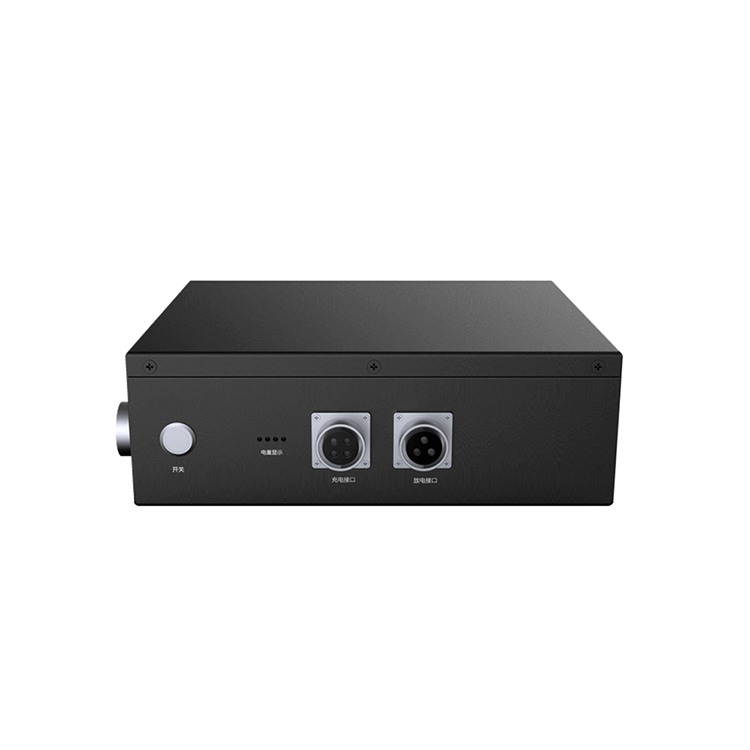

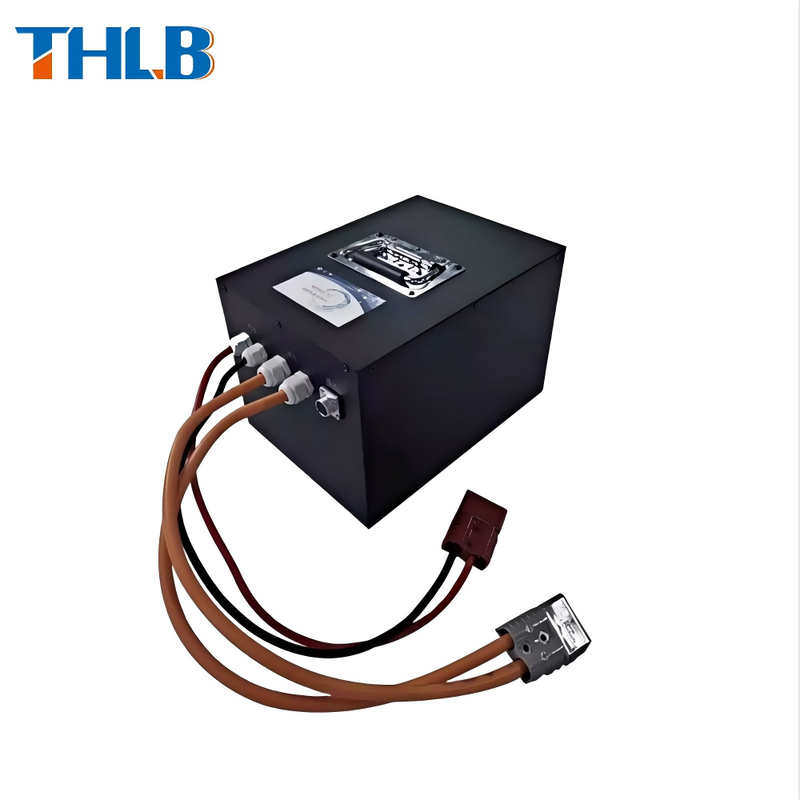

408Wh 24V 20Ah Lithium Ion Battery THLB Electric Scooter Lithium Battery

Brand Name: THLB
Model Number: 24v20Ah
MOQ: 10 pieces
Price: $120/pieces 10-49 pieces
Packaging Details: Standard Packaging
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Application:
Home Appliances, Boats, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles
Type:
Li-ion
Voltage:
24V
Capacity:
20Ah
Category:
Rechargeable Batteries Pack
Cycle Characteristic:
1500 Times
Working Temperature:
-20°C~60°C
Battery Weight:
2.9±0.2 Kg
Reference Battery Size:
(168±1)*(128±1)*(102±1) Mm
Color:
Black
Anode Material:
LFP
Electric Energy:
408Wh
Highlight:

408Wh 24V 20Ah Lithium Ion Battery

,

24V 20Ah Lithium Ion Battery THLB

,

THLB Electric Scooter Lithium Battery

Product Description
408Wh 24V 20Ah Lithium Ion Battery for AGV
High-performance LiFePO4 deep cycle 24V 20Ah lithium ion battery pack designed for AGV and energy storage applications. Features exceptional 2000-cycle lifespan with reliable power delivery.
24V 20Ah Lithium Ion Battery product overview Battery specifications and technical details Battery internal configuration diagram
Package Contents
1 x 24V20Ah LiFePO4 Battery Module 1 x 4S-20A PCM
1 x Plastic Battery Case 2 x M8 Terminals
Technical Specifications
Normal Voltage 24V
Normal Capacity 20Ah
Battery Energy 480Wh
Inner Resistance < 60mΩ
Battery Cycle Life 2000 Times @100%DOD
6000 Times @80%DOD
Cell Configuration LiFePO4 26650 3.2V 3200mAh-8S7P
Reference Battery Size (168±1)*(128±1)*(102±1) mm
Reference Battery Weight 2.9±0.2 kg
Battery Encapsulation Plastic Case
Charge Voltage 28.8V
Charge Mode CC/CV
Normal Charge Current <=50A
Normal Discharge Current 10A
Max. Continuous Output Current 20A
Max. Continuous Output Power 480W
Operation Temperature Range Charge: 0°C - 45°C
Discharge: -20°C - 60°C
Battery Storage Temperature -20°C - 25°C
Protection Features
  • Over charge protection
  • Over discharge protection
  • Over current protection

Battery performance testing

408Wh 24V 20Ah Lithium Ion Battery THLB Electric Scooter Lithium Battery 4

Battery safety features Battery terminal connections
Company Information

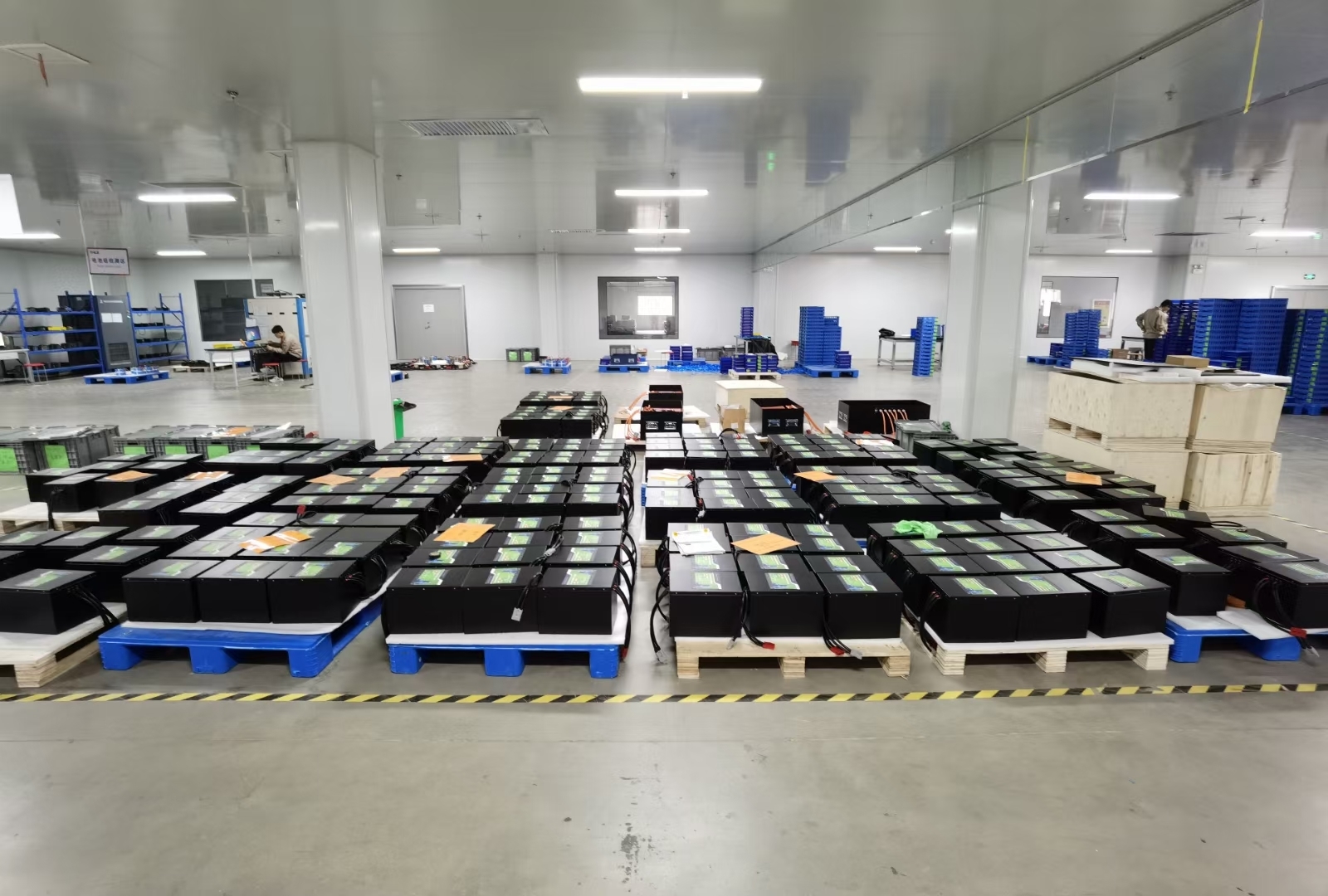

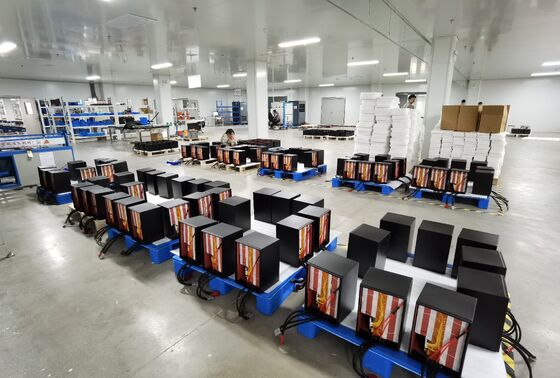

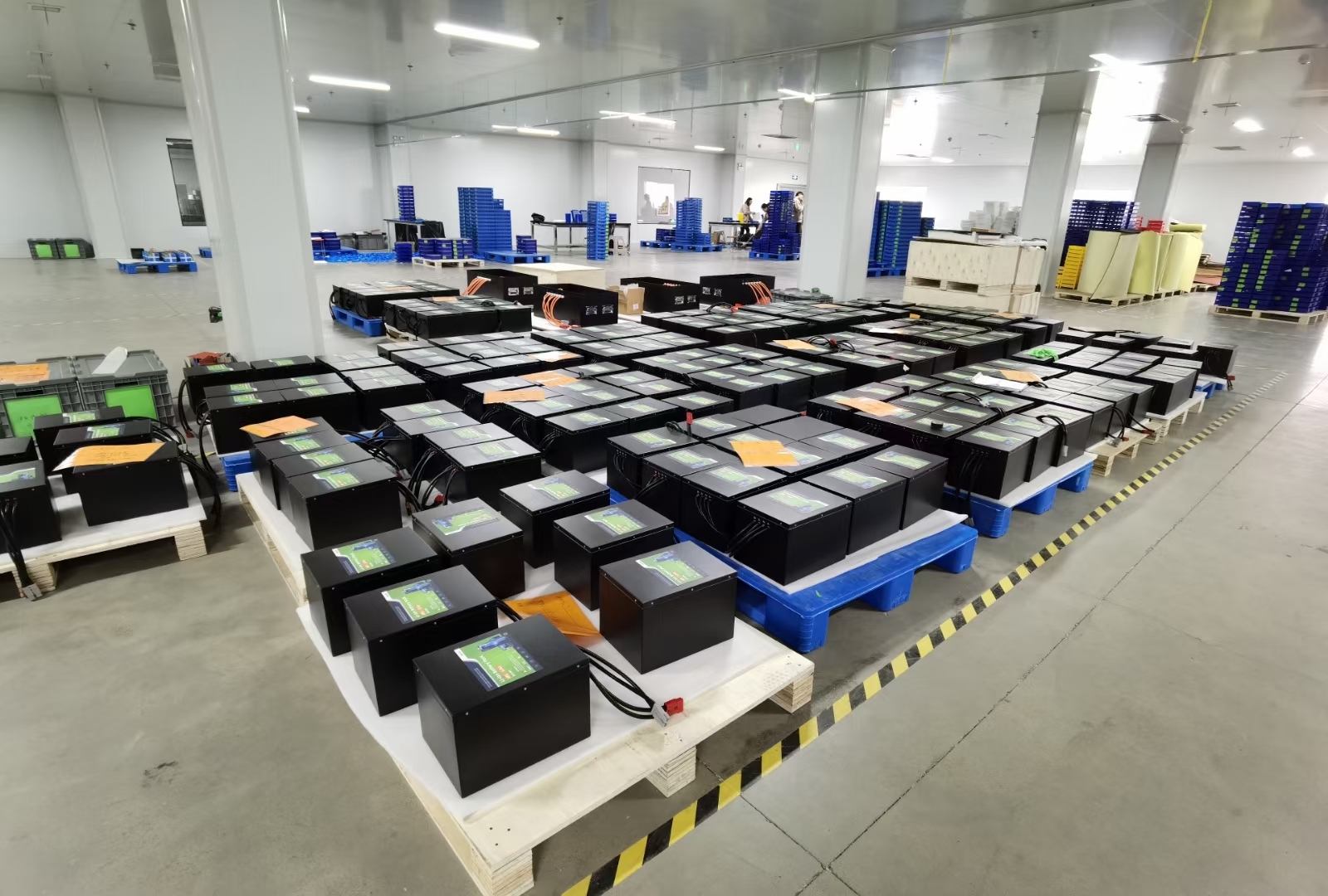

Manufacturing facility overview
Packing & Delivery
Shipping and logistics process
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping costs are not covered.
Q2. What about the lead time?
A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: Minimum order quantity is 100 pieces.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small trial orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or sea shipping options available.
Q5. How to proceed an order for Lithium ion cell?
A: Confirm cell models of interest → Receive specifications and quotation → Confirm order quantity → Payment confirmation → Production begins.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcome.
Q7: Do you offer guarantee for the products?
A: Yes, we provide 3-5 years warranty.
